CREWORKS 25cm 350W Electric Pottery Wheel User Manual

1. Ifihan

Thank you for choosing the CREWORKS 25cm 350W Electric Pottery Wheel. This manual provides essential information for the safe and efficient operation of your new pottery wheel. Please read all instructions carefully before use and retain this manual for future reference.

This electric pottery wheel features a 25 cm reversible turntable and a powerful 350W motor, suitable for various pottery projects and skill levels. Its design emphasizes durability, safety, and ease of use, making it an ideal tool for both beginners and experienced potters.

2. Awọn Ilana Aabo pataki

Lati dinku eewu ina, mọnamọna, tabi ipalara, nigbagbogbo tẹle awọn iṣọra aabo ipilẹ wọnyi:

• Ka gbogbo awọn ilana: Familiarize yourself with the controls and proper use of the pottery wheel.
• Aabo Itanna: Rii daju pe ipese agbara ibaamu voltage requirements of the machine. Do not operate with wet hands or in wet conditions. Always plug into a grounded outlet.
• Integrated Circuit Breaker (RCD): The machine is equipped with an RCD for enhanced safety. Test the RCD before each use by pressing the "TEST" button. The RCD should trip. Reset it by pressing "RESET" or flipping the switch to "OPEN". If it does not trip, do not use the machine and contact support.
• Abojuto: Close supervision is necessary when the pottery wheel is used by or near children or individuals with reduced physical, sensory, or mental capabilities.
• Ko aaye iṣẹ kuro: Keep your workspace clean, well-lit, and free from clutter.
• Aabo ti ara ẹni: Wear appropriate clothing; avoid loose clothing, jewelry, or long hair that could get caught in moving parts.
• Itọju: Ge okun ina kuro ki o to nu tabi ṣe itọju eyikeyi.
• Lilo ti a pinnu: Use the pottery wheel only for its intended purpose of shaping clay.

3. Package Awọn akoonu

Lẹhin ṣiṣi silẹ, jọwọ rii daju pe gbogbo awọn nkan wa ati pe ko bajẹ:

• CREWORKS Electric Pottery Wheel (Main Unit)
• Removable ABS Splash Basin
• Ẹsẹ ẹsẹ
• 8-Piece Clay Sculpting Tool Set
• Itọsọna olumulo

Nọmba 3.1: Pottery wheel and included accessories.

4. Ọja Ipariview

Familiarize yourself with the main components of your pottery wheel:

Nọmba 4.1: Main components of the pottery wheel.

• Turntable (Wheel Head): 25 cm aluminum alloy wheel for shaping clay.
• Splash Basin: Removable ABS basin to contain water and clay splatter.
• Agbara Yi pada: Turns the machine ON/OFF.
• Directional Adjustment Knob (FOR/REV): Selects clockwise (FOR) or counter-clockwise (REV) rotation.
• Ẹsẹ ẹsẹ: Controls the speed of the turntable.
• RCD (Residual Current Device): Integrated safety device with TEST and RESET buttons.
• Awọn Imọlẹ Atọka Agbara: Indicate power status.

Nọmba 4.2: Directional Switch.

Nọmba 4.3: RCD (Circuit Breaker).

Nọmba 4.4: Foot Pedal for Speed Control.

Nọmba 4.5: Aluminum Alloy Turntable.

5. Eto

1. Ṣii silẹ: Ni ifarabalẹ yọ gbogbo awọn paati kuro ninu apoti. Ṣayẹwo fun eyikeyi bibajẹ nigba irekọja.
2. Ibi: Place the pottery wheel on a stable, level surface. Ensure there is adequate space around the machine for comfortable operation and to prevent clay splatter from affecting other items.
3. Attach Splash Basin: Position the removable ABS splash basin around the turntable. Ensure it is securely seated to prevent leaks.
4. So Ẹsẹ Pẹdalu: Plug the foot pedal cable into the designated port on the side of the pottery wheel.
5. Asopọ agbara: Pulọọgi okun agbara sinu iṣan itanna ti ilẹ.
6. Idanwo RCD: Before first use and each subsequent use, perform the RCD test as described in the Safety Instructions (Section 2).

Nọmba 5.1: Pottery wheel dimensions and typical usage environments.

6. Awọn ilana Iṣiṣẹ

1. Agbara Tan: Flip the main power switch to the "ON" position. The power indicator light should illuminate.
2. Yan Itọsọna Yiyi: Use the directional adjustment knob (FOR/REV) to select your desired rotation. "FOR" is clockwise, and "REV" is counter-clockwise. This allows for comfortable use by both right-handed and left-handed individuals.
3. Place Clay: Center a lump of prepared clay firmly on the turntable.
4. Iyara Iṣakoso: Gently press the foot pedal to start the turntable rotation. Increase pressure on the pedal to increase the speed (up to 300 RPM). Release pressure to slow down or stop the wheel. This hands-free control allows you to use both hands for shaping the clay.
5. Apẹrẹ: Begin shaping your clay using appropriate techniques and tools. Maintain a consistent speed for best results.
6. Agbara Pa: Once finished, release the foot pedal, turn the main power switch to "OFF", and unplug the machine from the power outlet.

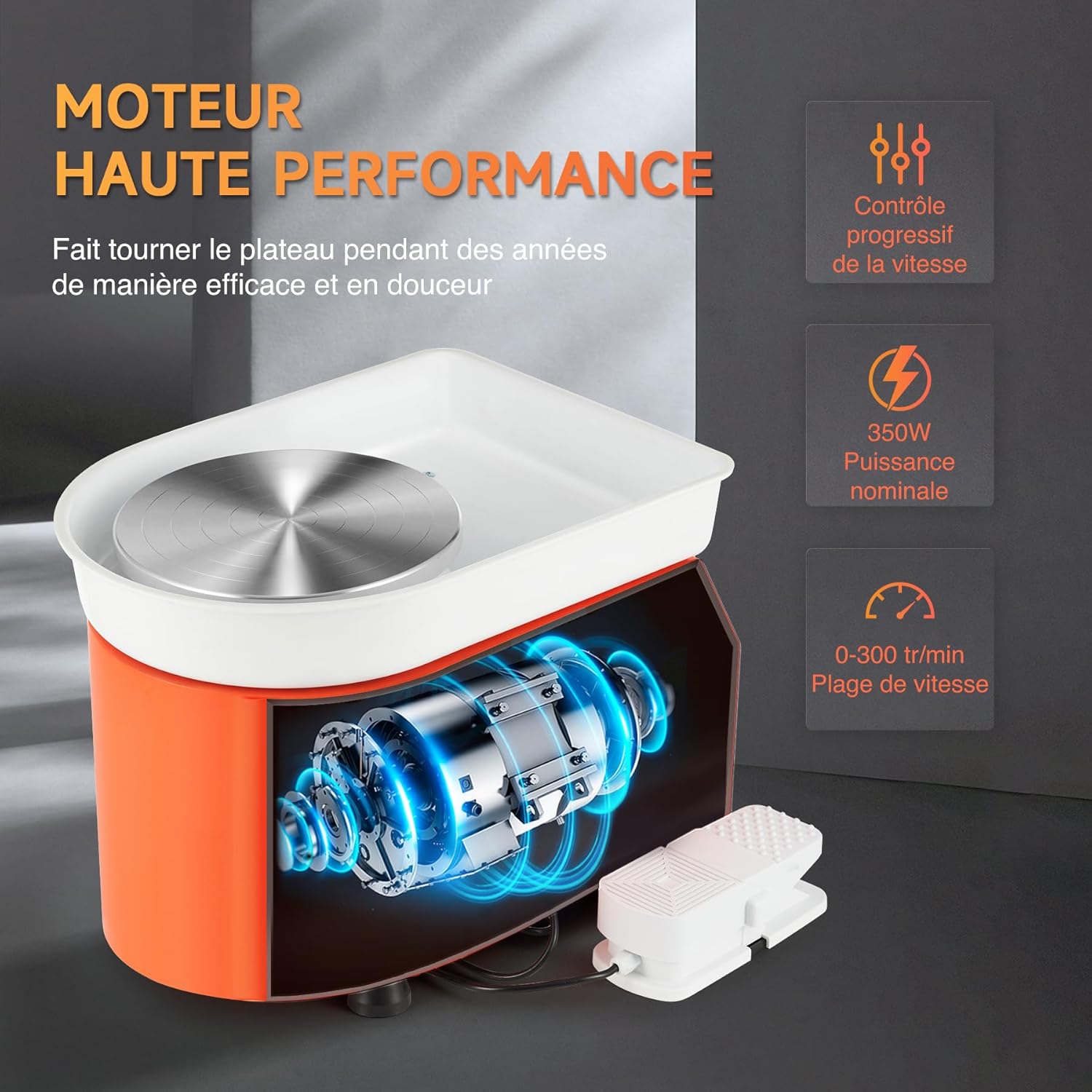

Nọmba 6.1: Hands-free speed control using the foot pedal.

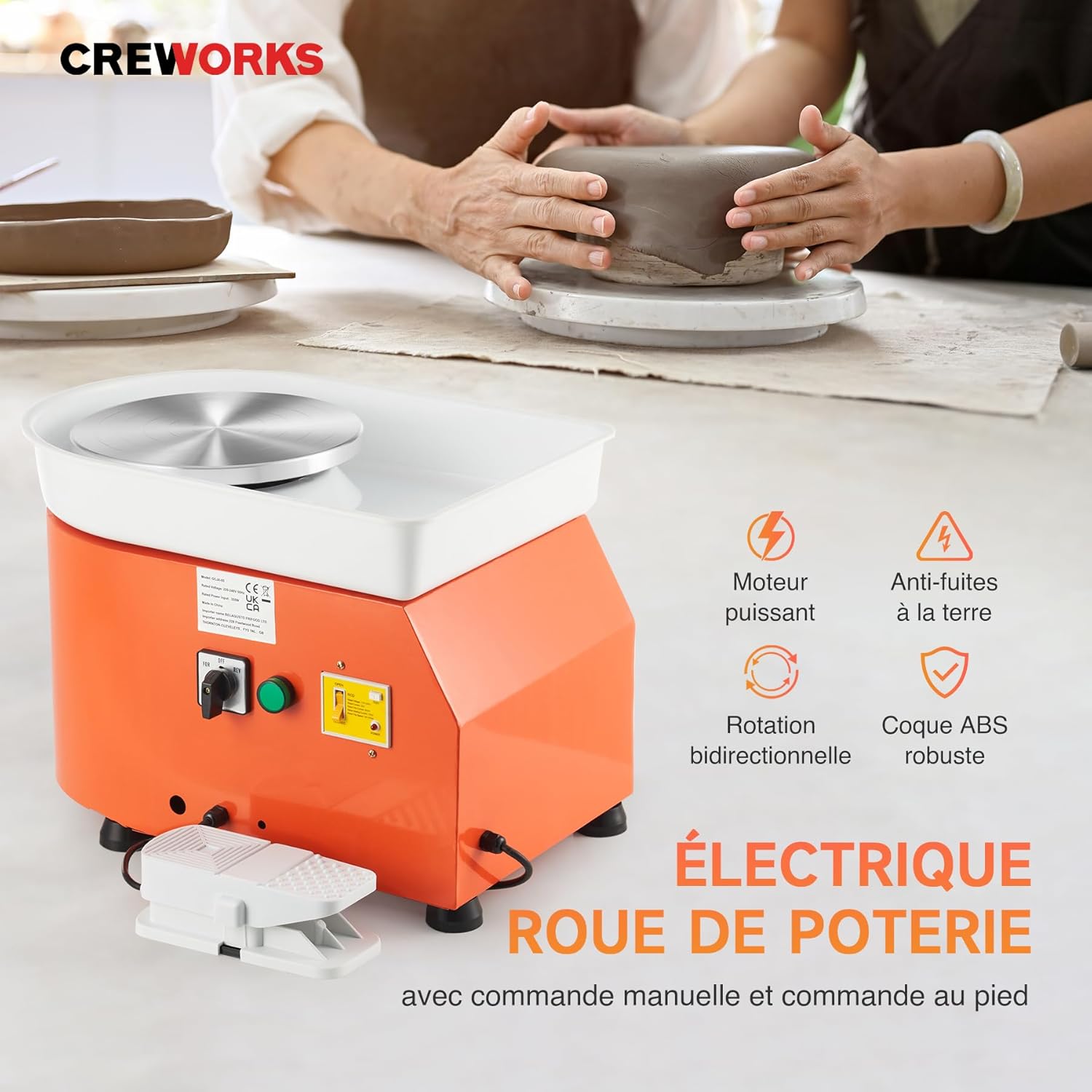

Nọmba 6.2: Shaping clay on the pottery wheel.

7. Itọju

Ninu deede ati itọju yoo rii daju igbesi aye gigun ati iṣẹ ti o dara julọ ti kẹkẹ amọ.

• Ge Agbara: Always unplug the pottery wheel from the power outlet before cleaning or performing any maintenance.
• Clean Splash Basin: Remove the ABS splash basin and thoroughly clean it after each use to prevent clay buildup. Rinse with water and wipe dry.
• Ti o mọ Turntable: Wipe down the aluminum turntable with a damp cloth to remove any clay residue. Avoid using abrasive cleaners that could scratch the surface.
• Ara Ẹ̀rọ Mímọ́: Wipe the main body of the machine with a damp cloth. Ensure no water enters the electrical components.
• Ibi ipamọ: Store the pottery wheel in a dry, dust-free environment when not in use.
• Yago fun Ibabọ omi: Never immerse the main unit of the pottery wheel in water.

8. Laasigbotitusita

Ti o ba ni awọn iṣoro eyikeyi, tọka si itọsọna laasigbotitusita atẹle yii:

For problems not listed above, or if solutions do not resolve the issue, please contact CREWORKS customer support.

9. Awọn pato

10. Atilẹyin ọja ati Support

CREWORKS products are designed for durability and performance. For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact CREWORKS customer service directly. Please have your model number (LPJ-NLJ1-EU) and purchase date available when contacting support.
