1. Ọja Ipariview
This manual provides essential information for the installation, operation, and maintenance of your CUIPPWRJ Ignition Coil Module. This component is designed to provide the necessary spark for your engine's combustion process, ensuring reliable starting and efficient performance. Please read this manual thoroughly before installation or use.
Olusin 1: Pariview of the CUIPPWRJ Ignition Coil Module, showing the main coil body and the attached spark plug boot.
2. Ibamu
The CUIPPWRJ Ignition Coil Module is specifically designed to be compatible with the following Loncin vertical axis engine models:
- Loncin LC1P92F
- Loncin LC1P92F1
- Loncin LC1P90F
- Loncin 1P90
- Loncin 1P92
- Loncin 452cc Vertical Axis Engines
Please verify your engine's model number before purchasing or installing this part to ensure proper fit and function.
Nọmba 2: Alaye view of the ignition coil module, highlighting the part number markings for compatibility verification.
3. Awọn ẹya Ọja
This ignition coil module offers several key features:
- Ikole ti o tọ: Built with robust materials for extended lifespan and consistent performance in demanding engine environments.
- Precise Compatibility: Engineered to exact specifications for a perfect fit and reliable operation with specified Loncin engine models.
- Efficient Spark Delivery: Designed to restore optimal engine performance by providing a strong, consistent spark for efficient combustion.
- Ohun elo to pọ: Suitable for a range of Loncin vertical axis engines, making it a practical replacement part.
- Ojutu ti o ni iye owo: Offers an economical option for maintaining or repairing your engine's ignition system.
4. Alaye Aabo
Always prioritize safety when working with engine components. Failure to follow safety precautions can result in serious injury or damage to equipment.
- Ge Agbara: Before performing any installation or maintenance, ensure the engine is completely off and the spark plug wire is disconnected to prevent accidental starting.
- Wọ Ohun elo Idaabobo: Nigbagbogbo wọ ohun elo aabo ti ara ẹni ti o yẹ, pẹlu awọn gilaasi aabo ati awọn ibọwọ.
- Enjini Tutu: Allow the engine to cool completely before handling any components to avoid burns.
- Mu pẹlu Itọju: Ignition coils contain sensitive electronic components. Handle the module carefully to avoid damage.
- Iranlọwọ Ọjọgbọn: If you are unsure about any step of the installation or repair process, consult a qualified engine mechanic.
5. Itọsọna fifi sori ẹrọ
Installing an ignition coil module requires careful attention to detail. Refer to your specific engine's service manual for detailed instructions and torque specifications. The following steps are general guidelines:
- Igbaradi:
- Rii daju pe ẹrọ naa wa ni pipa ati dara.
- Ge asopọ okun ina sipaki lati inu itanna sipaki naa.
- Locate the existing ignition coil module on the engine.
- Yọ Okùn Atijọ kuro:
- Carefully disconnect any electrical wires connected to the old coil.
- Unscrew the mounting bolts that secure the coil to the engine block.
- Remove the old ignition coil and spark plug boot.
- Fi Coil Tuntun sori ẹrọ:
- Position the new CUIPPWRJ Ignition Coil Module in place, ensuring the mounting holes align.
- Insert and hand-tighten the mounting bolts.
- Ṣètò Ààlà Afẹ́fẹ́: This is a critical step. Use a non-magnetic feeler gauge (typically 0.010-0.014 inches or as specified by your engine manual) between the coil's laminations and the flywheel magnets. Rotate the flywheel until the magnets are directly under the coil. Loosen the mounting bolts slightly, allowing the coil to be drawn to the flywheel by magnetic force. Tighten the mounting bolts while maintaining the correct air gap.
- Connect the electrical wires to the new coil, ensuring a secure connection.
- Attach the spark plug boot firmly to the spark plug.
- Idanwo:
- Once installed, attempt to start the engine to verify proper function.
Figure 3: The spark plug boot, which connects the ignition coil to the spark plug, ensuring proper electrical transfer.
6. Isẹ
Once correctly installed, the CUIPPWRJ Ignition Coil Module operates automatically as part of your engine's ignition system. Its primary function is to transform the low voltage from the engine's charging system into the high voltage required to create a spark at the spark plug. This spark ignites the air-fuel mixture in the combustion chamber, allowing the engine to run.
Proper operation is indicated by consistent engine starting and smooth running. If the engine experiences misfires, difficulty starting, or rough idling after installation, refer to the troubleshooting section.
7. Itọju
The CUIPPWRJ Ignition Coil Module is designed for durability and typically requires minimal maintenance. However, periodic inspection can help ensure its longevity and optimal performance:
- Ayewo wiwo: Periodically inspect the coil module and its wiring for any signs of physical damage, corrosion, or loose connections.
- Spark Plug Boot: Check the spark plug boot for cracks, tears, or signs of arcing. A damaged boot can lead to spark loss.
- Mimọ: Keep the area around the ignition coil clean and free from debris, oil, and moisture, which can interfere with its operation.
- Alafo afẹfẹ: If engine performance degrades, re-check the air gap between the coil and the flywheel as described in the installation section.
Always ensure the engine is off and cool before performing any inspection or maintenance.
8. Laasigbotitusita wọpọ oran
If you experience problems after installing the ignition coil, consider the following common issues and solutions:
| Aisan | Owun to le Fa | Ojutu |
|---|---|---|
| Engine will not start / No spark | Incorrect air gap, loose wiring, faulty spark plug, damaged coil. | Verify air gap setting. Check all electrical connections. Test or replace spark plug. Inspect coil for damage. |
| Ẹ̀rọ náà kò ṣiṣẹ́ dáadáa tàbí ó ń ṣiṣẹ́ dáadáa | Incorrect air gap, fouled spark plug, fuel delivery issues, carburetor problems. | Re-check air gap. Clean or replace spark plug. Ensure proper fuel flow. Consult engine manual for carburetor adjustments. |
| Engine starts but dies quickly | Intermittent spark, fuel supply issues, engine timing. | Check for consistent spark. Verify fuel filter and lines. Consult engine manual for timing checks. |
Tí àwọn ìgbésẹ̀ ìṣàyẹ̀wò kò bá yanjú ìṣòro náà, a gbani nímọ̀ràn láti wá ìrànlọ́wọ́ láti ọ̀dọ̀ onímọ̀ iṣẹ́ tó péye.
9. Awọn alaye ọja
Key specifications for the CUIPPWRJ Ignition Coil Module:
| Sipesifikesonu | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Brand | CUIPPWRJ |
| Nọmba awoṣe | CUIPPWRJ123 |
| Àwọn Irú Ẹ̀rọ Tó Báramu | Loncin LC1P92F, LC1P92F1, LC1P90F, 1P90, 1P92, 452cc Vertical Axis Engines |
| Iwọn Nkan | 1.76 iwon (nipa 50 giramu) |
| Package Mefa | 1.18 x 0.79 x 0.39 inches (iwọn 3 x 2 x 1 cm) |
| ASIN | B0DXD171DD |

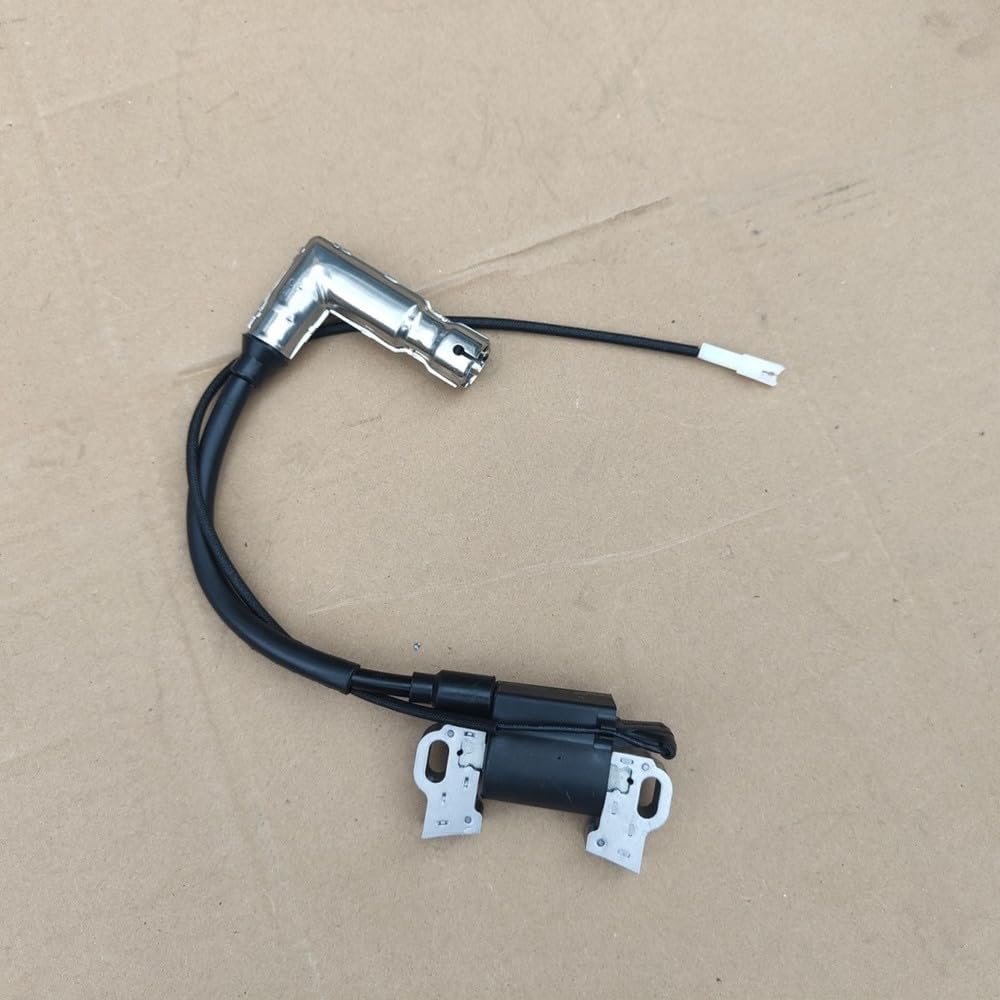

olusin 4: Omiiran view of the ignition coil module, showcasing its compact design and mounting brackets.
10. Atilẹyin ọja ati Support
For specific warranty information regarding your CUIPPWRJ Ignition Coil Module, please refer to the documentation provided at the time of purchase or contact the seller directly. Warranty terms typically cover manufacturing defects.
If you require technical support or have questions not covered in this manual, please reach out to the CUIPPWRJ customer service team or the retailer from whom you purchased the product. When contacting support, please have your product model number (CUIPPWRJ123) and purchase details readily available.
For general inquiries or to find more information about CUIPPWRJ products, you may visit the manufacturer's official website if available, or search for "CUIPPWRJ" online.
