RAB Lighting LF34 Adjustable Outdoor LED Floodlight User Manual

1. Ifihan

This manual provides essential information for the safe and effective installation, operation, and maintenance of your RAB Lighting LF34 Adjustable Outdoor LED Floodlight. Please read these instructions thoroughly before installation and retain them for future reference.

The LF34 floodlight is designed for outdoor use, offering versatile lighting control with selectable color temperatures, precise glare control, and durable, weatherproof construction. It provides powerful and efficient illumination with a long-lasting performance.

2. Alaye Aabo

IKILO: Risk of electric shock. Installation must be performed by a qualified electrician in accordance with all applicable national and local electrical codes.

• Ge asopọ agbara kuro ni fiusi tabi fifọ Circuit ṣaaju fifi sori ẹrọ tabi iṣẹ.
• Rii daju pe ipese voltage jẹ deede (120V AC).
• Ground the fixture properly to avoid potential electrical shocks.
• Do not handle live wires.
• Rii daju pe gbogbo awọn asopọ wa ni aabo ati idabobo daradara.
• Ma ṣe fi sori ẹrọ nitosi awọn ohun elo ijona.
• This fixture is rated IP65 for outdoor use, providing protection against dust and water jets.

3. Package Awọn akoonu

Daju pe gbogbo awọn paati wa ṣaaju ki o to bẹrẹ fifi sori:

• LF34 Adjustable Outdoor LED Floodlight Unit
• Àwọn ohun èlò ìfipamọ́ (àwọn skru, ìdákọ́ró, àwọn gaskets)
• On-Off Switch (integrated or separate, depending on model variant)
• Ilana itọnisọna

4. Awọn pato

5. Eto ati fifi sori

Pataki: Before starting installation, ensure power is OFF at the circuit breaker.

1. Yan Ibi Igbesoke: Select a suitable outdoor wall location for the floodlight. Ensure the surface is stable and can support the fixture's weight.
2. Mura Waya: Run 120V AC electrical wiring to the chosen mounting location. Ensure the wiring complies with local electrical codes.
3. Gbe Imuduro: Secure the floodlight's mounting bracket to the wall using the provided screws and anchors. Ensure a watertight seal if required by local codes.
4. Awọn isopọ Waya: Connect the floodlight's wires to your supply wires:
   • Connect the black fixture wire to the black (live) supply wire.
   • Connect the white fixture wire to the white (neutral) supply wire.
   • Connect the green or bare copper fixture wire to the green or bare copper (ground) supply wire.
   Use appropriate wire connectors and ensure all connections are secure.
5. Imuduro to ni aabo: Attach the floodlight body to the mounting bracket, ensuring it is firmly in place.
6. Pada Agbara pada: Nígbà tí a bá ti parí ìfìsílẹ̀ àti gbogbo ìsopọ̀mọ́ra, dá agbára padà sí ibi tí ẹ̀rọ ìfọ́mọ́ra náà ti ń ṣiṣẹ́.

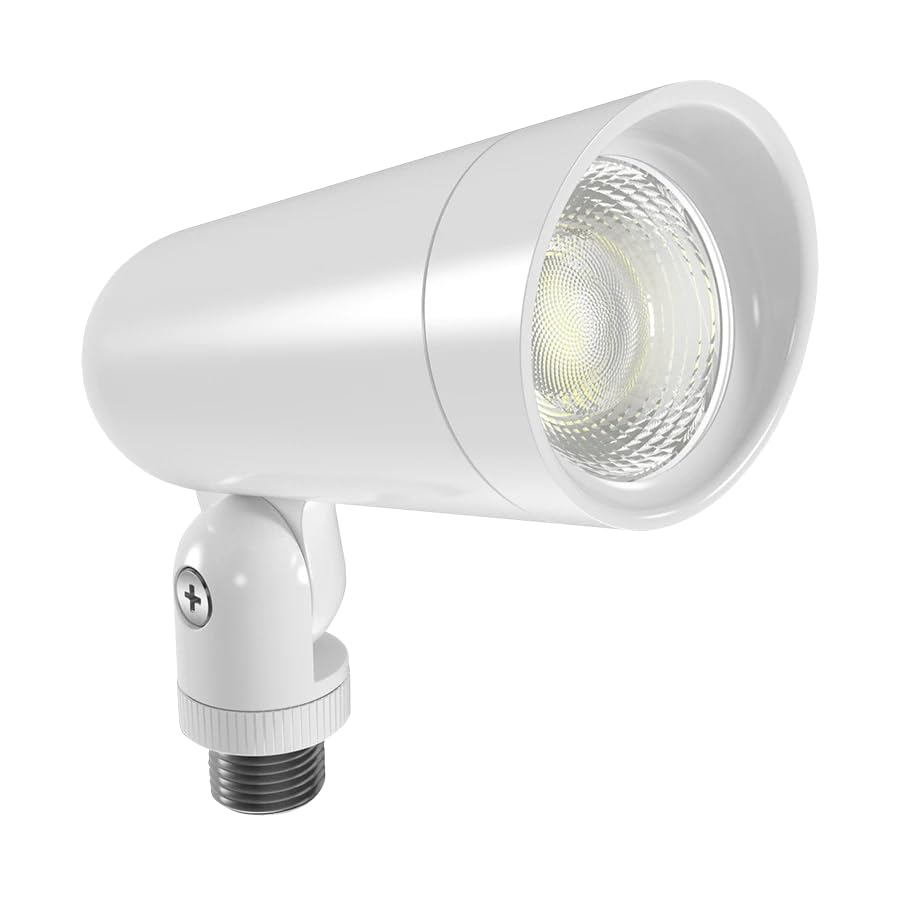

Image: The RAB Lighting LF34 Adjustable Outdoor LED Floodlight in white, ready for installation.

6. Awọn ilana Iṣiṣẹ

1. Titan/Apapa: Use the connected wall switch or integrated on-off switch to turn the floodlight on or off.
2. Adjusting Color Temperature (CCT): The LF34 features selectable color temperatures from 2700K (warm white) to 5000K (cool white). This adjustment is typically made via a touch control on the fixture or a switch located on the unit itself. Refer to the specific model variant for exact control method.
3. Itọnisọna Imọlẹ Ṣatunṣe: The floodlight features a rotating hood and a locking knuckle.
   • Rotating Hood: Gently rotate the hood around the light source to direct light and minimize glare.
   • Locking Knuckle: Loosen the locking knuckle to adjust the angle of the floodlight, then tighten it securely to fix the position. This allows for precise aiming of the light beam.

Image: Visual representation of the LF34 floodlight's adjustable color temperatures (2700K to 5000K) in an outdoor environment.

Image: The rotating hood feature of the LF34 floodlight, designed for precise light direction and glare reduction.

7. Itọju

The RAB Lighting LF34 LED Floodlight is designed for minimal maintenance due to its durable construction and long lifespan.

• Ninu: Lorekore nu ode ti imuduro pẹlu asọ, damp cloth to remove dirt and debris. Do not use abrasive cleaners or solvents. Ensure the fixture is off and cool before cleaning.
• Ayewo: Regularly inspect the fixture for any signs of damage to the housing, lens, or wiring. If any damage is found, disconnect power and have it inspected by a qualified electrician.
• Igbesi aye: With an impressive 100,000-hour lifespan, the LED light source does not require replacement under normal operating conditions.

Image: The LF34 floodlight's IP65 rating ensures durability and resistance to various outdoor weather conditions.

8. Laasigbotitusita

If you encounter issues with your LF34 floodlight, refer to the following common problems and solutions:

• Ìmọ́lẹ̀ kìí tan:
  • Ṣàyẹ̀wò ẹ̀rọ ìdènà láti rí i dájú pé a ti pèsè agbára sí ẹ̀rọ ìdènà náà.
  • Verify all wire connections are secure and correct.
  • Ensure the on-off switch is in the 'ON' position.
• Àwọn Flicker Flicker:
  • Ṣayẹwo awọn asopọ okun waya alaimuṣinṣin.
  • Rii daju pe ipese voltage jẹ idurosinsin ati laarin awọn pàtó kan ibiti o (120V).
• Iwọn otutu awọ ti ko tọ:
  • If applicable, ensure the CCT selection mechanism (e.g., touch control or switch) is set to your desired color.
• Ohun èlò inú omi:
  • Immediately disconnect power. This indicates a compromised seal. Contact customer support for assistance.

If these steps do not resolve the issue, contact RAB Lighting customer support.

9. Atilẹyin ọja ati Support

RAB Lighting products are manufactured to high standards and are designed for long-term performance. While specific warranty details are not provided in this manual, please refer to the official RAB Lighting website or your purchase documentation for comprehensive warranty information.

For technical support, replacement parts, or warranty claims, please contact RAB Lighting customer service through their official webaaye tabi alaye olubasọrọ ti a pese ni aaye rira.
