Ìwé Ìtọ́sọ́nà Olùlò Morpilot Electric Milk Frother HS001

Ọrọ Iṣaaju

Thank you for choosing the Morpilot Electric Milk Frother HS001. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new milk frother. Please read this manual thoroughly before first use and keep it for future reference.

Awọn Itọsọna Aabo pataki

IKILO:

1. Please keep the milk frother out of the reach of children. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Use a power supply with the specified specifications, and use the unit only with the supplied power supply base.
3. Do not operate this appliance with a damaged cord or plug. If the supply cord is damaged, it must be replaced by manufacturer its service agent or similarly qualified person in order to avoid a hazard.
4. Yọọ frother lẹhin lilo kọọkan, ṣaaju ki o to rọpo awọn ẹya ẹrọ ati nu ẹrọ naa.
5. Ma ṣe fi ẹrọ naa bọ omi tabi awọn olomi miiran lati yago fun yiyi kukuru.
6. Maṣe jẹ ki okun akọkọ duro ni alaimuṣinṣin, tabi yọ pulọọgi kuro pẹlu ọwọ tutu, tabi dubulẹ tabi gbele lori awọn aaye gbigbona, tabi jẹ ki o wa si olubasọrọ pẹlu awọn epo.
7. Do not touch the metal parts, rotating parts, the filter holder or its housing when the appliance is in use, as this may cause burns or scalding.
8. This appliance is intended for household use only. No liability is accepted for any damage resulting from use for other purposes, faulty operation or amateur repairs. Guarantee services are also excluded in such cases.
9. Ma ṣe ṣiṣẹ wara tutu ni ita. Lo o lori tabili alapin kan.
10. Ma ṣe jẹ ki wara frother ṣiṣẹ laisi wara ninu ojò ti inu.

Refer to the product packaging for original warning details.

Image: Product packaging displaying important safety warnings and manufacturer contact details.

Ọja Pariview ati irinše

The Morpilot Electric Milk Frother HS001 is designed for creating various milk preparations, including hot milk, warm dense foam, warm airy foam, and cold foam. It features a detachable glass jug for easy cleaning and a one-button operation for convenience.

Image: The Morpilot Electric Milk Frother showing the main unit, glass jug with measurement lines, two whisk attachments, and a cleaning brush.

Awọn ẹya pataki:

• Agbara: 130ml (MIN) to 500ml (MAX for heating milk), 250ml (MAX for frothing).
• Ohun elo: Food safety grade glass jug for clear visualization and easy cleaning.
• Awọn iṣẹ: Four distinct functions controlled by a single button.
• Apẹrẹ: Latte art drip tip design for precise pouring.

Image: Close-up of the Morpilot Milk Frother highlighting its food-grade glass material, allowing for visual monitoring of the frothing process and indicating a 500ml capacity.

Ṣeto

1. Yọọ kuro: Ni ifarabalẹ yọ gbogbo awọn paati kuro ninu apoti. Ṣe idaduro apoti fun ibi ipamọ tabi irinna ọjọ iwaju.
2. Ìfọ̀mọ́ àkọ́kọ́: Before first use, wash the glass jug and whisk attachments with warm soapy water. Rinse thoroughly and dry completely. Wipe the base unit with a damp asọ. Ma ṣe fi omi si ipilẹ ipilẹ.
3. Ibi: Gbé ìpìlẹ̀ frother náà sí orí ilẹ̀ tí ó dúró ṣinṣin, tí ó tẹ́jú, tí ó sì gbẹ, jìnnà sí àwọn orísun ooru àti omi.
4. Asopọ agbara: So okun agbara pọ si ọna itanna to dara.
5. So Whisk: Select the appropriate whisk for your desired function (e.g., frothing whisk for foam, heating whisk for hot milk) and place it securely inside the jug on the central pin.

Awọn ilana Iṣiṣẹ

The Morpilot Milk Frother offers four functions, easily selected with a single button. The indicator light color changes to show the selected mode.

Image: Diagram illustrating the four functions of the Morpilot Milk Frother: Cold Milk Foam, Warm Airy Milk Foam, Warm Dense Milk Foam, and Hot Milk, along with visual examples ti kọọkan.

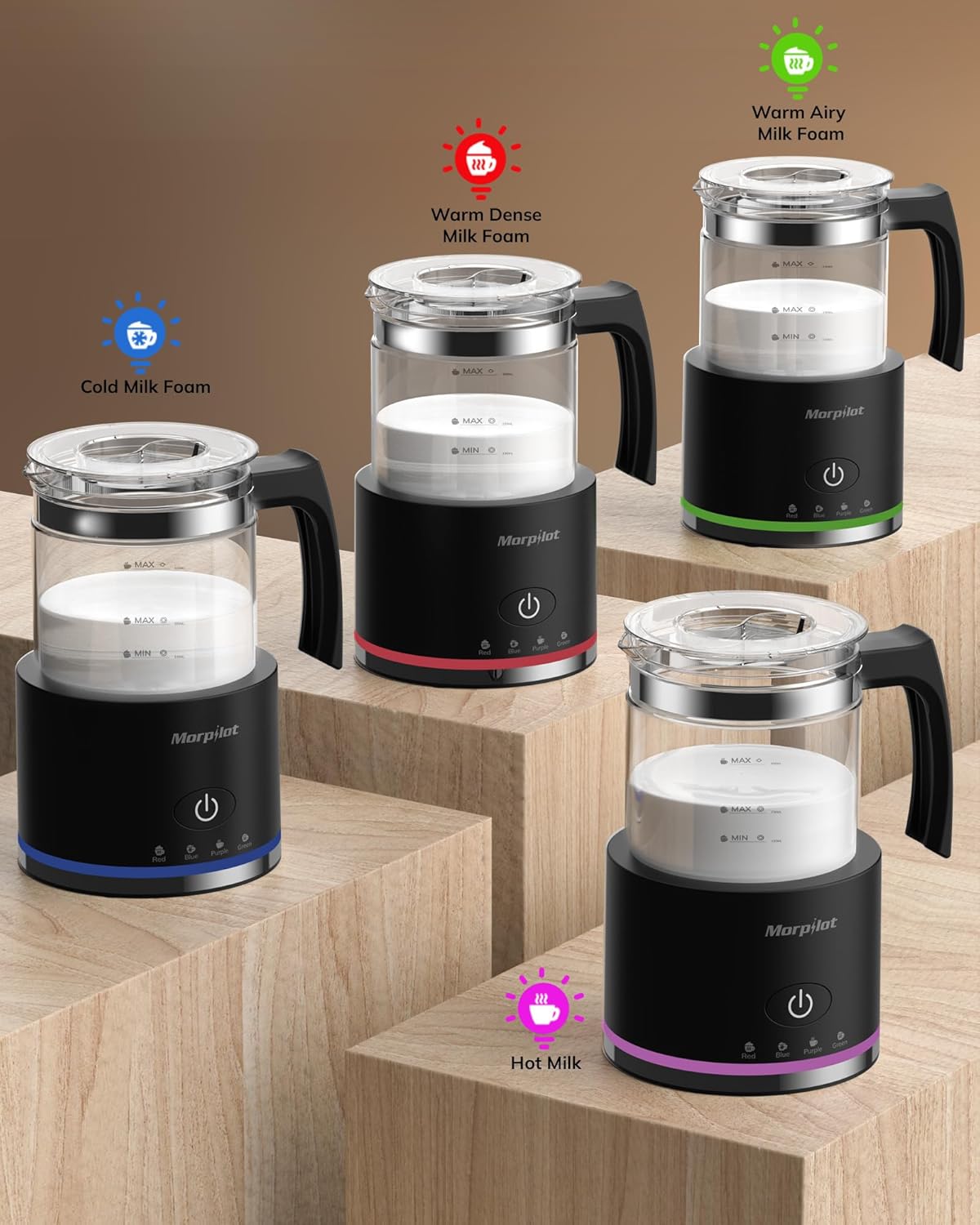

Image: The Morpilot Milk Frother displaying the different LED indicator light colors (Red, Blue, Purple, Green) corresponding to its four distinct functions.

Awọn Igbesẹ Isẹ Gbogbogbo:

1. Fi Wara kun: Pour the desired amount of cold milk into the glass jug. Ensure the milk level is between the MIN (130ml) and MAX lines. For frothing, do not exceed the lower MAX line (250ml) to prevent overflow. For heating milk without frothing, you can fill up to the upper MAX line (500ml).
2. Place Jug: Place the glass jug securely onto the power base.
3. Yan Iṣẹ: Press the power button repeatedly to cycle through the four functions. The indicator light will change color to show the selected function:
• Imọlẹ pupa: Warm Dense Milk Foam
• Imọlẹ bulu: Foomu Wara tutu
• Imọlẹ eleyi ti: Hot Milk (no foam)
• Imọlẹ alawọ ewe: Warm Airy Milk Foam
4. Bẹrẹ: Once the desired function is selected, the frother will automatically start.
5. Ipari: The frother will automatically stop when the process is complete. The indicator light will turn off.
6. Tú: Carefully remove the jug from the base and pour the frothed milk. The latte art drip tip design assists with precise pouring.

Image: A user pouring frothed milk from the Morpilot frother's glass jug into a cup of coffee, showcasing the precise pouring capability of its drip tip design.

Itọju ati Cleaning

Regular cleaning ensures the longevity and hygienic operation of your Morpilot Milk Frother. The detachable design makes cleaning simple.

Image: The Morpilot Milk Frother's glass jug being cleaned under running water, emphasizing its easy-to-clean, detachable design from the base.

1. Yọọ: Always unplug the frother from the power outlet before cleaning.
2. Fara bale: Allow the frother to cool down completely before cleaning.
3. Detach Jug: Remove the glass jug from the power base.
4. Clean Jug and Whisk: The glass jug and whisk attachments are dishwasher safe or can be washed by hand with warm soapy water and a soft sponge. Use the provided cleaning brush for hard-to-reach areas. Rinse thoroughly.
5. Ipilẹ mimọ: Wipe the exterior of the power base with a soft, damp asọ. Maṣe fi ipilẹ sinu omi tabi omi miiran.
6. Gbẹ Rí i dájú pé gbogbo àwọn ẹ̀yà ara rẹ̀ gbẹ pátápátá kí o tó tún kó wọn jọ tàbí kí o tó fi èéfín náà pamọ́.

Laasigbotitusita

If you encounter issues with your Morpilot Milk Frother, please refer to the following common problems and solutions:

Awọn pato

Atilẹyin ọja ati Support

For warranty information and customer support, please refer to the contact details provided on the product packaging or contact your local distributor.

Ibi iwifunni:
