HOMCOM 1.1 Cu.Ft Compact Upright Freezer Instruction Manual

Ọrọ Iṣaaju

Thank you for choosing the HOMCOM 1.1 Cu.Ft Compact Upright Freezer. This manual provides important information regarding the installation, operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before use and retain it for future reference.

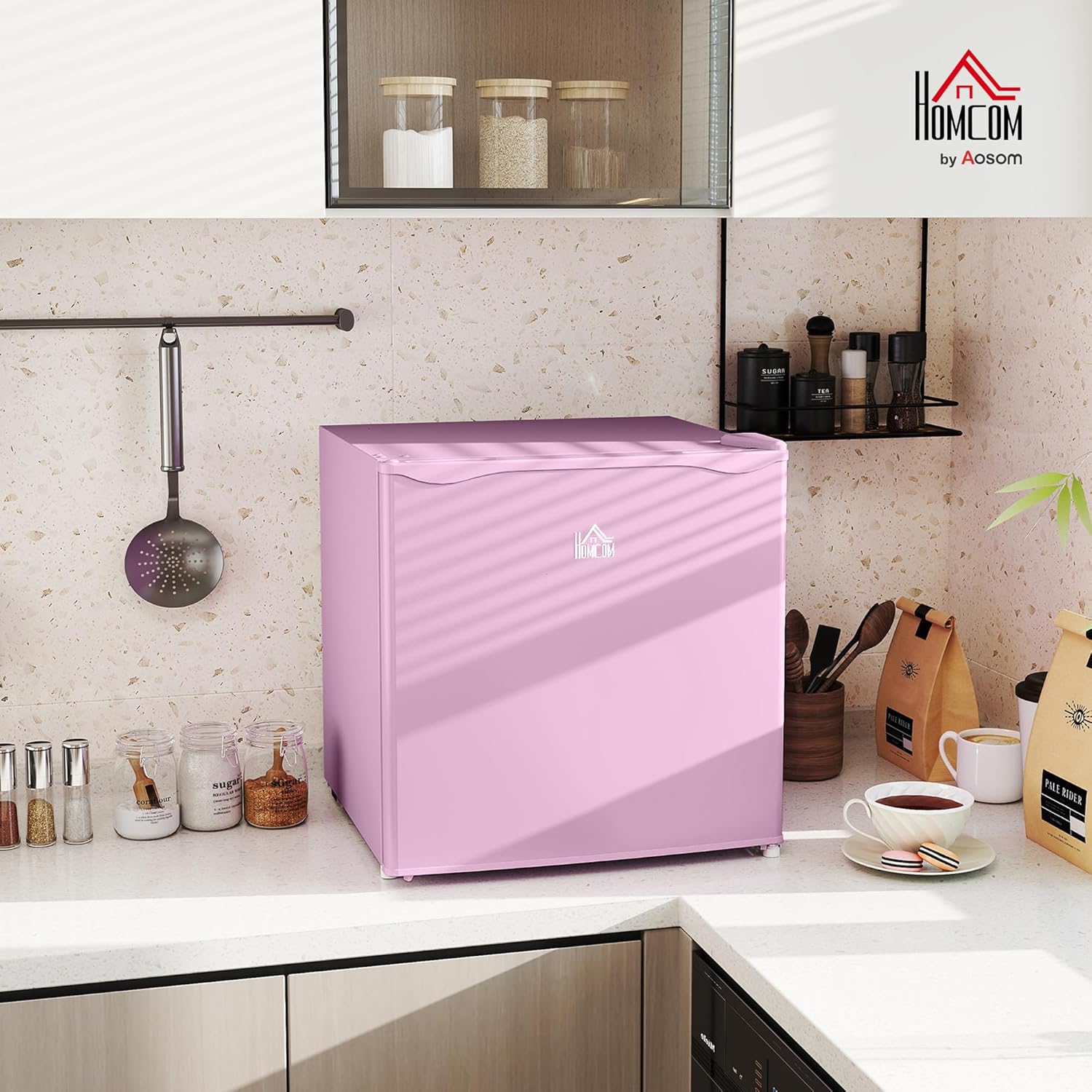

Image: The HOMCOM 1.1 Cu.Ft Compact Upright Freezer, showcasing its compact design suitable for various spaces.

Awọn Itọsọna Aabo

Láti dín ewu iná, ìkọlù iná mànàmáná, tàbí ìpalára kù nígbà tí o bá ń lo firísà rẹ, tẹ̀lé àwọn ìlànà ìṣọ́ra wọ̀nyí:

• Ka gbogbo awọn ilana ṣaaju lilo ohun elo naa.
• Rí i dájú pé a ti lẹ̀ fìríìsà náà dáadáa.
• Ma ṣe fi awọn nkan ibẹjadi pamọ gẹgẹbi awọn agolo aerosol pẹlu itọka ina ninu ohun elo yii.
• Jeki awọn šiši fentilesonu, ni ibi-ipamọ ohun elo tabi ni ọna ti a ṣe sinu, kuro ni idena.
• Ma ṣe lo awọn ẹrọ darí tabi awọn ọna miiran lati yara si ilana yiyọkuro, miiran ju awọn ti a ṣeduro nipasẹ olupese.
• Maa ko ba awọn refrigerant Circuit.
• Ma ṣe lo awọn ohun elo itanna inu awọn yara ibi ipamọ ounje ti ohun elo, ayafi ti wọn ba jẹ iru iṣeduro nipasẹ olupese.
• Yọ firisa kuro ki o to nu tabi ṣe itọju eyikeyi.
• Ṣe abojuto awọn ọmọde nigbati wọn wa nitosi ohun elo naa.

Package Awọn akoonu

Jẹrisi pe gbogbo awọn ohun kan wa ninu package:

• 1 x HOMCOM 1.1 Cu.Ft Compact Upright Freezer
• 1 x Removable Shelf
• Ṣọ́fẹ́lì Yìnyín 1 x
• 1 x Ice onigun Atẹ
• 1 x Ilana itọnisọna (iwe yii)

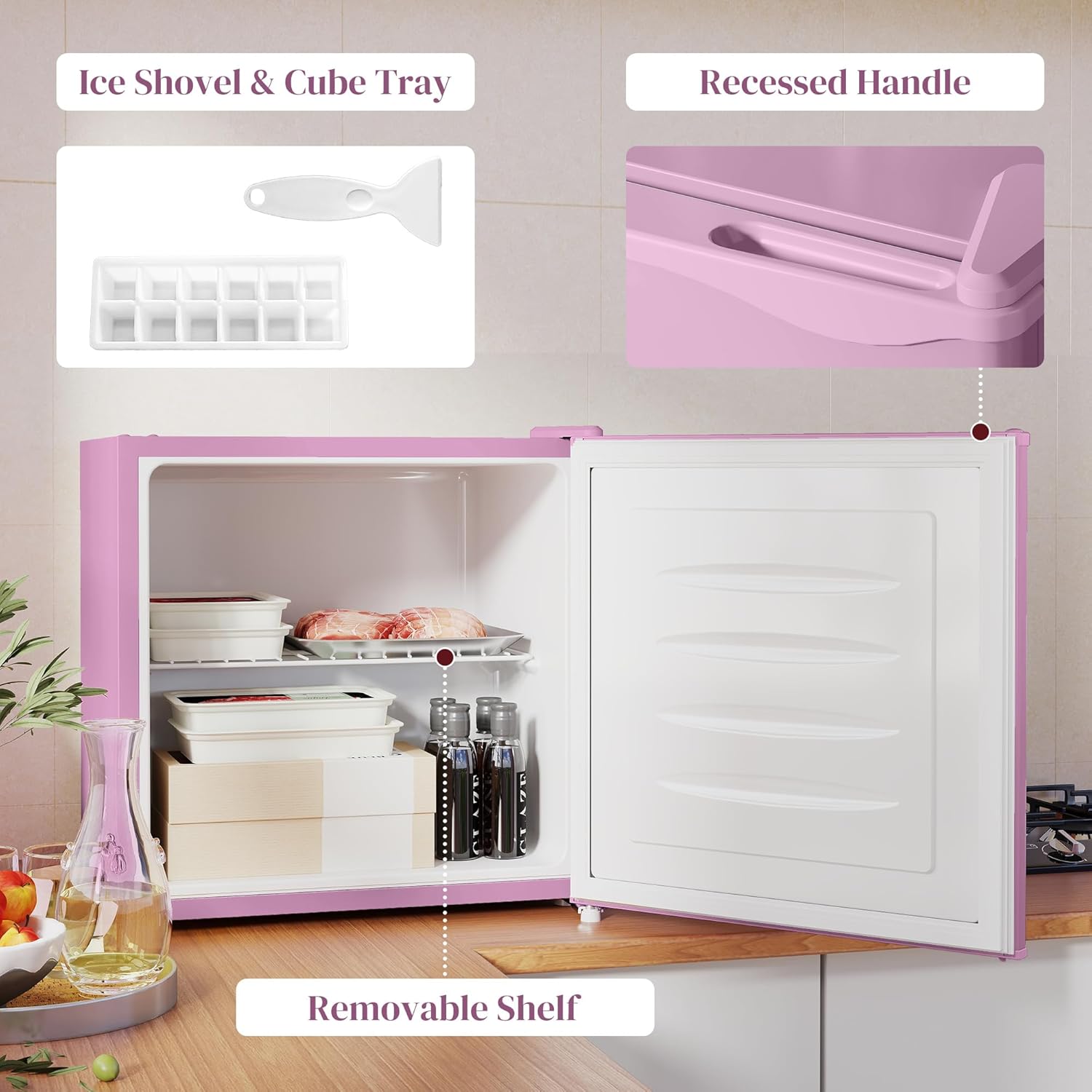

Image: The included ice shovel and ice cube tray, highlighting the removable shelf and recessed handle.

Ṣeto

1. Ṣii silẹ: Remove all packaging materials, including foam and adhesive tape. Inspect the freezer for any damage.
2. Ibi:

   Place the freezer on a flat, stable surface away from direct sunlight and heat sources (e.g., stove, heater). Ensure adequate ventilation around the unit. This compact design is suitable for apartments, dorms, offices, or motor homes.



   Image: The compact freezer positioned on a countertop, illustrating its small footprint.
3. Ìpele: The freezer features adjustable feet. Rotate the adjustable feet at the bottom of the unit to ensure it is level. A level appliance operates more efficiently.
4. Iyipada ilẹkun (Aṣayan): The door is reversible, allowing it to open from either the left or right side to suit your space. Refer to the detailed diagram in the separate assembly guide for instructions on how to reverse the door.
5. Initial Power-on: After placing the freezer, allow it to stand upright for at least 2-4 hours before plugging it into a power outlet. This allows the refrigerant to settle.
6. Asopọ agbara: Plug the freezer into a dedicated 115V, 60Hz grounded electrical outlet. Do not use extension cords.

Image: Details showing the reversible door mechanism and adjustable leveling foot.

Awọn ilana Iṣiṣẹ

Iṣakoso iwọn otutu

The freezer's temperature can be adjusted using the thermostat dial located inside the unit. Rotate the dial to select your desired temperature setting. The temperature range is from 6.8℉ to -11.2℉ across 5 levels.

• Setting 1 (Min): Least cold.
• Setting 5 (Max): Coldest setting, ideal for quick freezing or when the ambient temperature is high.

It is recommended to start with a medium setting (e.g., 3) and adjust as needed based on the amount of food stored and desired freezing performance.

Image: The adjustable temperature control dial and examples of items suitable for freezing.

Ibi ipamọ ati Agbari

The freezer includes a removable shelf to accommodate items of various sizes. Arrange food items to allow for proper air circulation, which helps maintain consistent temperatures.

• Use the removable shelf for smaller items or remove it to store larger, bulkier foods.
• Ensure food is properly sealed to prevent freezer burn and odor transfer.

Itoju

Defrosting

This freezer features manual defrost. Frost buildup is normal and should be removed periodically to ensure efficient operation. Defrost when the frost layer is approximately 1/4 inch thick.

1. Yọọ firisa kuro ni iṣan agbara.
2. Yọ gbogbo awọn nkan ounjẹ kuro ki o si fi wọn pamọ sinu firisa miiran tabi kula.
3. Place towels or a shallow pan inside the freezer to collect melting ice.
4. Leave the freezer door open to allow the frost to melt naturally. Do not use sharp objects or heating devices to speed up the defrosting process, as this can damage the appliance.
5. Nígbà tí gbogbo òtútù bá ti yọ́, nu inú ilé náà kí o sì gbẹ ẹ́ dáadáa.
6. Plug the freezer back in and allow it to cool down for a few hours before returning food items.

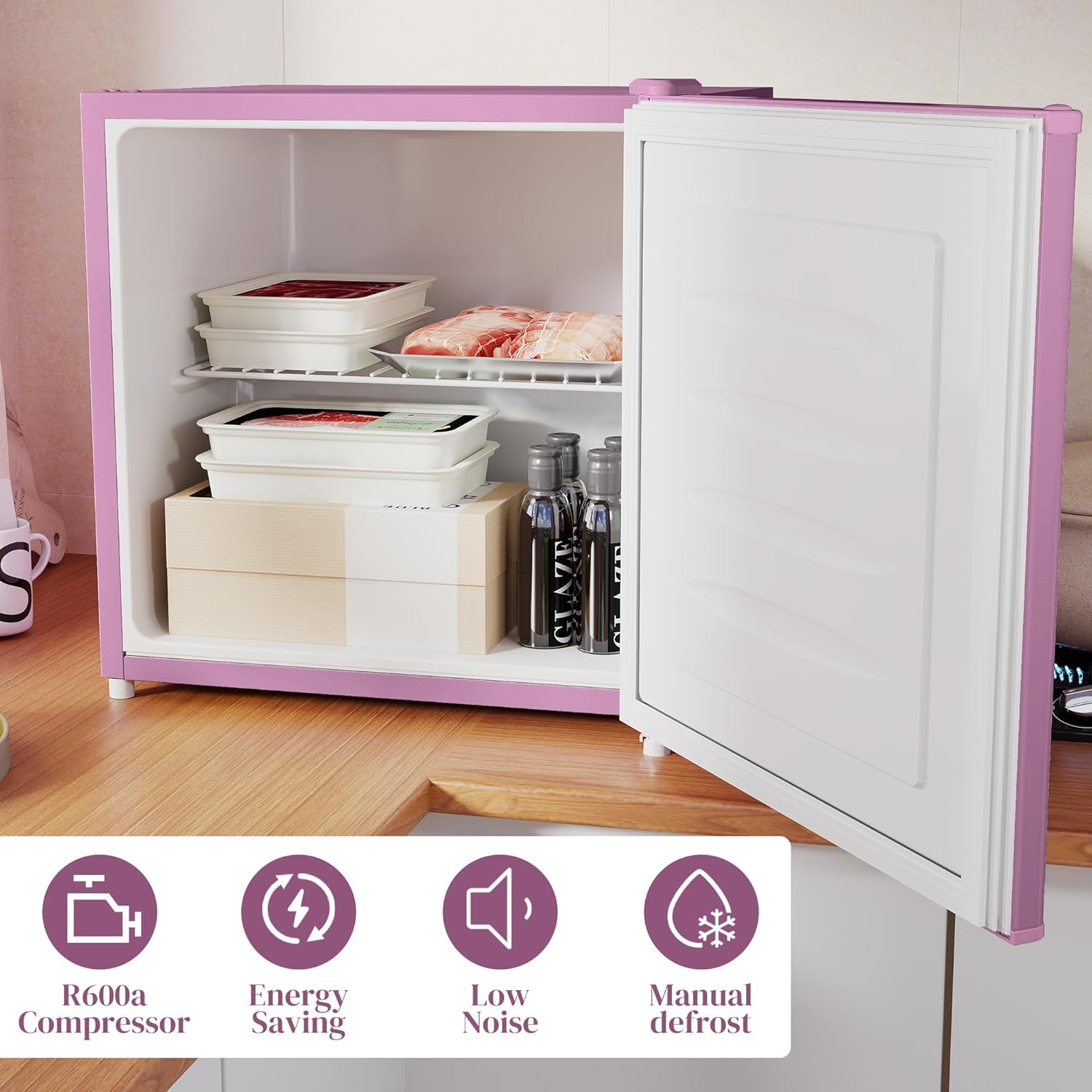

Image: Features of the freezer, including its manual defrost capability.

Ninu

Mimọ deede ṣe iranlọwọ lati ṣetọju imototo ati ṣiṣe.

• Yọọ firisa ṣaaju ki o to sọ di mimọ.
• Clean the interior with a mild detergent and warm water solution. Wipe dry with a soft cloth.
• Nu ode pẹlu asọ asọ dampened pẹlu omi ati ki o kan ìwọnba detergent.
• Periodically vacuum the condenser coils at the back of the freezer to remove dust and debris, which can improve energy efficiency.

Laasigbotitusita

Ṣaaju ki o to kan si iṣẹ alabara, jọwọ ṣayẹwo awọn ọran ti o wọpọ wọnyi:

Awọn pato

Image: Dimensional drawing of the freezer.

Atilẹyin ọja

This HOMCOM freezer is covered by a 1 Odun olupese atilẹyin ọja lati ọjọ ti o ra. Jọwọ ṣe idaduro ẹri rira rẹ fun awọn iṣeduro atilẹyin ọja. Atilẹyin ọja ni wiwa awọn abawọn ninu awọn ohun elo ati iṣẹ-ṣiṣe labẹ lilo deede.

For detailed warranty terms and conditions, please refer to the warranty card included with your product or contact HOMCOM customer support.

Onibara Support

If you have any questions, require assistance, or need to report an issue with your HOMCOM freezer, please contact our customer support team:

• Webojula: www.aosom.com (Aosom is the parent company of HOMCOM)
• Imeeli: Tọkasi apoti ọja rẹ tabi kaadi atilẹyin ọja fun imeeli olubasọrọ kan pato.
• Foonu: Tọkasi apoti ọja rẹ tabi kaadi atilẹyin ọja fun nọmba olubasọrọ kan pato.

Please have your model number (800-127V80PK) and purchase information ready when contacting support.
