ORICO 40Gbps M.2 NVMe SSD Enclosure

1. Ọja Ipariview

The ORICO 40Gbps M.2 NVMe SSD Enclosure (Model CNM2-U4-GY) is designed for high-speed data transfer and external storage. It features a built-in cooling fan and an aluminum alloy shell to ensure optimal thermal management during intensive use. This enclosure supports M-Key NVMe SSDs and is compatible with various interfaces including USB4, Thunderbolt 4/3, USB 3.2, USB 3.1, and USB 3.0.

Aworan 1.1: Pariview of the ORICO 40Gbps M.2 NVMe SSD Enclosure.

2. Package Awọn akoonu

Jọwọ rii daju pe gbogbo awọn nkan wa ninu package:

• 1 x ORICO 40Gbps NVMe SSD Enclosure
• 1 x 2-in-1 USB Cable (USB-C to USB-C 40Gbps, USB-C to USB-A 10Gbps)
• 1 x Gbona Silikoni paadi
• 1 x Screwdriver
• Screws for SSD installation
• Itọsọna olumulo

Image 2.1: Contents included in the ORICO NVMe SSD Enclosure package.

3. Awọn pato

Note: Not compatible with Intel CPUs prior to 12th Gen. Not recommended for SN750, 970 EVO Plus, or P3 SSDs. SATA SSDs are not supported.

4. Eto ati fifi sori

Tẹle awọn igbesẹ wọnyi lati fi M.2 NVMe SSD rẹ sinu apade:

1. Yọ Ideri naa kuro: Use the provided screwdriver to unscrew the retaining screw and gently slide open the upper cover of the enclosure.
2. Fi M.2 SSD sori ẹrọ: Insert your M.2 NVMe SSD into the M.2 interface at a 45-degree angle. Gently push down the SSD and secure it with the provided screw to fix it in place. Ensure the SSD is M-Key compatible and of size 2230, 2242, 2260, or 2280.
3. Waye Paadi Gbona: Place the silicone thermal pad onto the installed SSD. This helps in heat dissipation.
4. Fifi sori ẹrọ ni kikun: Close the upper cover and secure it with the retaining screw.

Image 4.1: Step-by-step guide for M.2 NVMe SSD installation.

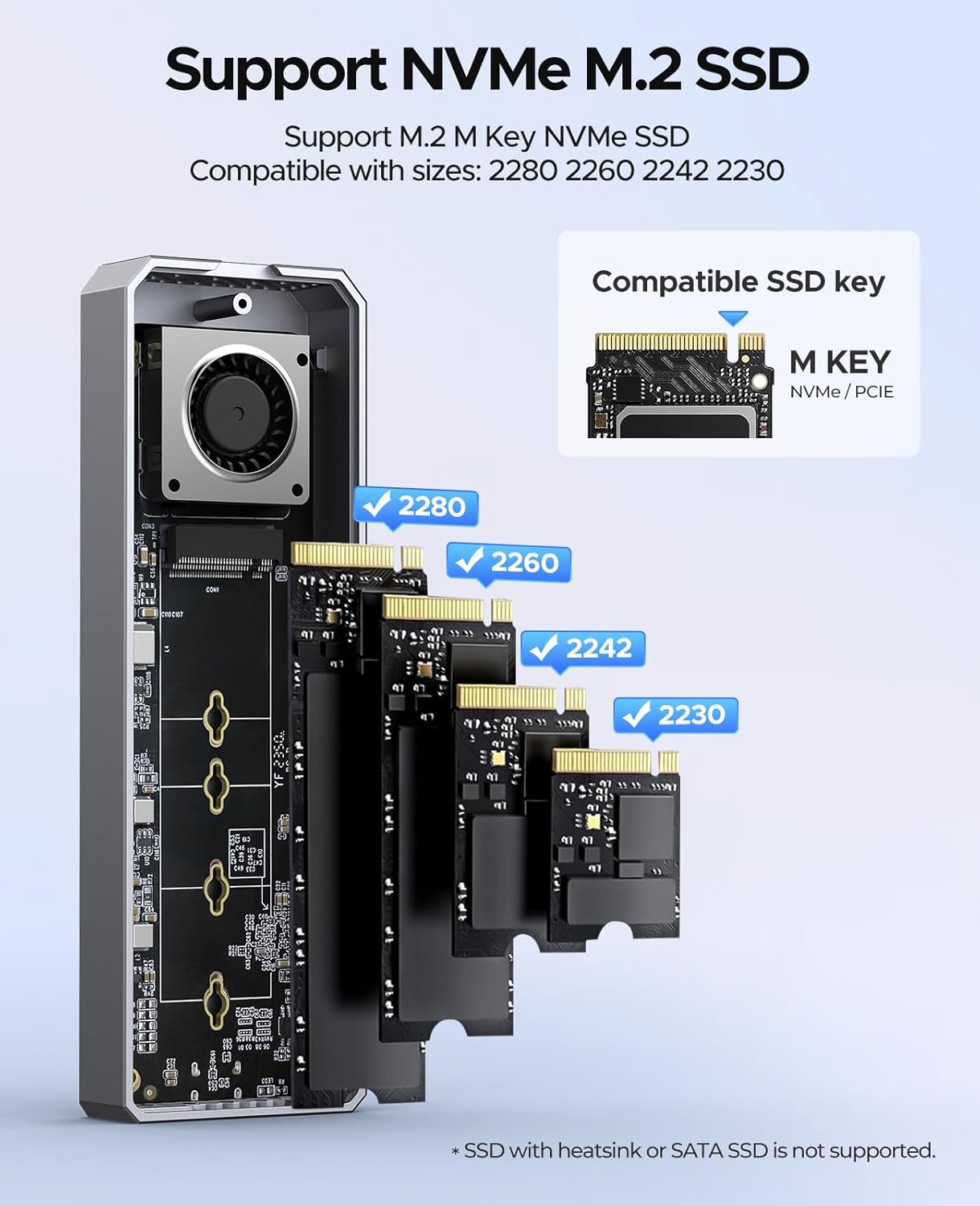

Image 4.2: Supported M.2 NVMe SSD types and sizes.

5. Isẹ

Once the SSD is installed, connect the enclosure to your host device using the provided 2-in-1 USB cable. The enclosure is plug-and-play and does not require additional drivers for most operating systems.

5.1 Data Gbigbe

Utilize the USB-C to USB-C cable for 40Gbps transfer speeds when connecting to compatible Thunderbolt 3/4 or USB4 ports. For devices with USB-A ports, use the USB-C to USB-A cable for speeds up to 10Gbps. The enclosure supports UASP and TRIM commands for optimized performance and SSD longevity.

Image 5.1: Enclosure connected to a laptop for data transfer.

5.2 Ifijiṣẹ agbara

The USB-C to USB-C cable also supports 100W Power Delivery (PD) fast charging, allowing for simultaneous data transfer and device charging if your host device supports it.

Image 5.2: The versatile 2-in-1 data cable for the enclosure.

6. itutu System

The ORICO NVMe SSD Enclosure incorporates a multi-level cooling system to maintain optimal operating temperatures for your SSD, preventing performance throttling and ensuring stability during prolonged use.

• Olufẹ Itutu ti a ṣe sinu: An integrated fan actively circulates air to dissipate heat. The fan operates at 7000 RPM, producing approximately 40-60 decibels of sound.
• Aluminiomu Alloy Shell: The entire enclosure is constructed from aluminum alloy, which acts as a large heatsink to draw heat away from the SSD.
• Silicone Thermal Pads: These pads create direct contact between the SSD and the aluminum casing, enhancing thermal conductivity.

Aworan 6.1: Ti abẹnu view highlighting the built-in cooling fan.

Image 6.2: Illustration of the multi-level cooling design.

7. Ibamu

The enclosure offers broad compatibility with various devices and operating systems:

7.1 Host Device Compatibility

• Intel 12th Gen CPUs and later
• Apple M1/M2/M3/M4 chips
• AMD CPUs
• Compatible with devices featuring Thunderbolt 3/4, USB4, USB 3.2, USB 3.1, and USB 3.0 interfaces.

Note: Not compatible with Intel CPUs prior to 12th Gen, including older Apple devices.

7.2 Ibamu System ọna

• Windows
• macOS
• iPad OS
• Lainos
• Android

Aworan 7.1: Pariview of device and system compatibility.

8. Laasigbotitusita

If you encounter issues with your ORICO NVMe SSD Enclosure, consider the following:

• A ko ri ibi ipamọ:
  • Rii daju pe SSD ti fi sori ẹrọ daradara ati ni ifipamo laarin apade naa.
  • Gbìyànjú láti so àpò ìpamọ́ náà pọ̀ mọ́ ibudo USB/Thunderbolt mìíràn lórí ẹ̀rọ rẹ.
  • Ṣe ìdánwò pẹ̀lú okùn USB mìíràn tí ó bá wà.
  • Verify that your host device's operating system is up to date and has the necessary drivers for USB/Thunderbolt.
  • Check Disk Management (Windows) or Disk Utility (macOS) to see if the drive is recognized but uninitialized or unformatted.
• Awọn iyara Gbigbe lọra:
  • Ensure you are using a 40Gbps compatible port (Thunderbolt 3/4 or USB4) and the USB-C to USB-C cable for maximum speed.
  • Confirm your SSD is capable of high speeds.
  • Close other applications that might be consuming system resources or disk I/O.
  • Check for background processes like antivirus scans.
• Igbóná púpọ̀:
  • Ensure the thermal silicone pad is correctly placed on the SSD.
  • Avoid obstructing the ventilation holes on the enclosure.
  • While the fan helps, continuous heavy load can still generate heat. Allow the device to cool if it becomes excessively hot.
• SSD Not Supported:
  • Confirm your SSD is an M-Key NVMe SSD and not a SATA M.2 SSD. SATA M.2 SSDs are not compatible.
  • Refer to the specifications for specific SSD models that are not recommended (e.g., SN750, 970 EVO Plus, P3).

9. Atilẹyin ọja ati Support

ORICO products typically come with a manufacturer's warranty. Please refer to the warranty card included in your package or visit the official ORICO webAaye fun alaye atilẹyin ọja ofin ati ipo.

For technical support, product inquiries, or warranty claims, please contact ORICO customer service through their official channels. Contact information can usually be found on the ORICO webaaye tabi ni apoti ọja.

When contacting support, please have your product model number (CNM2-U4-GY) and purchase information readily available.
