Tangkula 21-Inch Portable Propane Fire Pit User Manual

Alaye Aabo pataki

IKILO: For outdoor use only. Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment. Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury, or death.

• Always keep the fire pit area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.
• Ma ṣe tọju tabi lo epo petirolu tabi awọn ina ina miiran ati awọn olomi ni agbegbe eyi tabi eyikeyi ohun elo miiran.
• The propane cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
• Maṣe fi iho ina silẹ laini abojuto lakoko ti o n ṣiṣẹ.
• Pa awọn ọmọde ati awọn ohun ọsin kuro ni ọfin ina.
• Ensure proper ventilation. Do not operate in an enclosed space.
• Always use the fire pit on a level, non-combustible surface.
• Allow the fire pit to cool completely before moving or storing.
• Do not attempt to repair or alter the fire pit. Contact qualified service personnel.

Ọja Pariview

The Tangkula 21-inch portable propane fire pit provides a clean and efficient heat source for outdoor environments. It features a 58,000 BTU output, a durable cold-rolled steel construction with a 201 stainless steel burner, and includes lava rocks for enhanced heat distribution and aesthetic appeal. The unit is designed for portability and ease of use, featuring a simple igniting knob for flame adjustment and a tank base holder for a standard 20 lb propane tank (not included).

Apejuwe aworan: An oke view of the Tangkula 21-inch portable propane fire pit, disassembled to show its main components. These include the circular fire bowl with a control knob, a matching black cover with a handle, a separate circular tank base holder, and an 8.2 ft gas hose with a regulator. This image illustrates the complete set of items included in the package.

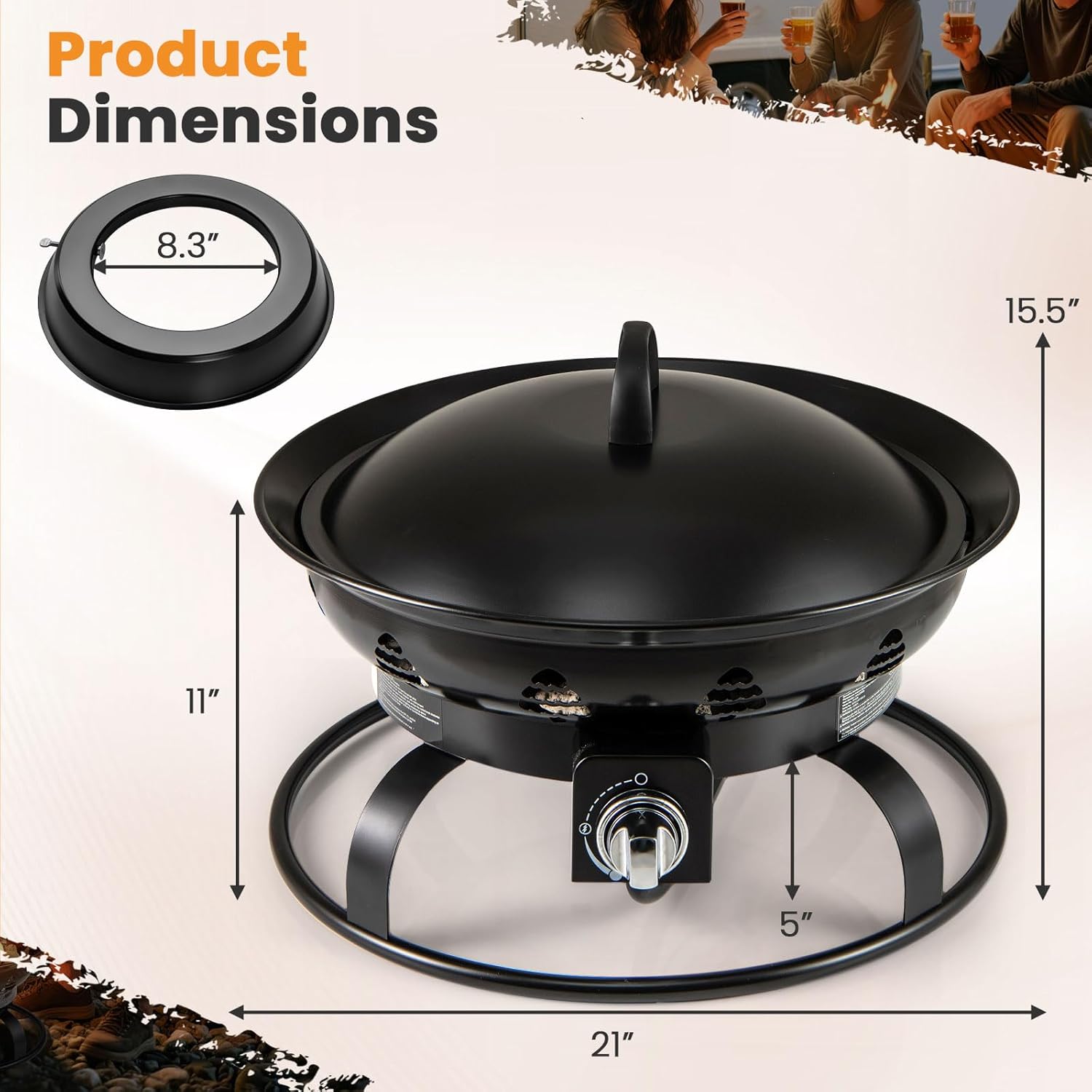

Apejuwe aworan: Apa kan view of the assembled Tangkula 21-inch portable propane fire pit, with key dimensions highlighted. The overall diameter is 21 inches, and the height is 15.5 inches. The inner diameter of the tank base holder is shown as 8.3 inches. This image provides a clear understanding of the product's physical size.

Ṣeto

1. Yọ awọn ohun elo kuro: Carefully remove all items from the packaging. Verify that all parts listed in the package contents are present.
2. Attach Handle to Cover: Secure the cool-to-touch handle to the fire pit cover using the provided hardware.
3. Place Lava Rocks: Distribute the included lava rocks evenly over the burner ring inside the fire bowl. Ensure the igniter and burner holes are not completely covered to allow for proper gas flow and ignition.
4. Position Tank Base Holder: Place the circular tank base holder on a level surface where the fire pit will be used.
5. So Póìpù Gaasi pọ̀: Attach the gas hose regulator to a standard 20 lb propane tank (not included). Hand-tighten securely.
6. Connect Hose to Fire Pit: Connect the other end of the gas hose to the inlet on the fire pit. Hand-tighten securely.
7. Idanwo Leki: Before first use and after any cylinder change, perform a leak test. Apply a soapy water solution to all gas connections. If bubbles appear, there is a leak. Tighten connections or replace parts as necessary. Do not use the fire pit if a leak is detected.

Apejuwe aworan: A sunmọ-soke view showing the igniting knob on the side of the fire pit and the 8.2 ft gas hose. The knob has clear markings for ignition and flame adjustment. This image highlights the primary controls and the gas connection component.

Awọn ilana Iṣiṣẹ

1. Ṣí àtọ́ọ̀lù Páápù: Slowly open the valve on the propane tank counter-clockwise.
2. Ignite Fire Pit: Push and turn the igniting knob on the fire pit to the "LOW" position. Hold the knob in for 5-10 seconds to allow gas to flow and ignite. You should hear a click and see the flame ignite.
3. Ṣatunṣe Ina: Once ignited, release the knob. Rotate the igniting knob clockwise to increase the flame height to "HIGH" or counter-clockwise to decrease it to "LOW".
4. Paade: To turn off the fire pit, first turn the igniting knob to the "OFF" position. Then, close the valve on the propane tank completely by turning it clockwise.
5. Fara bale: Allow the fire pit to cool completely before placing the cover on or moving.

IKIRA: If the burner does not ignite within 10 seconds, turn the control knob to "OFF" and close the propane tank valve. Wait 5 minutes for gas to dissipate before attempting to ignite again.

Apejuwe aworan: A Tangkula propane fire pit in operation, displaying a vibrant flame and lava rocks. Text overlays indicate "58,000 BTU Heat Output" and "Lava Rocks Included," emphasizing the product's heating capability and included accessories.

Itoju

• Ninu:
  • Rí i dájú pé ihò iná náà tutu pátápátá kí o tó fi mọ́.
  • Mu ese ita gbangba pẹlu asọ, damp asọ. Ma ṣe lo abrasive ose tabi epo.
  • Clean the burner and lava rocks periodically to remove debris.
• Ibi ipamọ:
  • Disconnect the propane tank and store it in a well-ventilated outdoor area, away from direct sunlight and heat sources.
  • Cover the fire pit with its protective cover (if applicable) or a weather-resistant cover when not in use for extended periods.
  • Store the fire pit in a cool, dry place to prevent rust and damage.
• Awọn ayewo:
  • Regularly inspect the gas hose for cuts, abrasions, or excessive wear. Replace if damaged.
  • Check all gas connections for tightness before each use.
  • Ensure the burner ports are clear of obstructions.

Apejuwe aworan: A alaye view of the interior construction of the Tangkula propane fire pit. It highlights the use of cold-rolled steel for the main body and a 201 stainless steel burner ring, indicating the robust and heat-resistant materials used in its construction.

Laasigbotitusita

Awọn pato

Atilẹyin ọja ati Support

Specific warranty information for the Tangkula 21-inch Portable Propane Fire Pit is typically provided at the point of purchase or within the product packaging. Please refer to your purchase receipt or contact the retailer for detailed warranty terms and conditions.

For technical support, replacement parts, or any questions regarding the operation or maintenance of your fire pit, please contact Tangkula customer service. Contact information can usually be found on the manufacturer's webaaye tabi lori apoti ọja.

Awọn orisun Ayelujara: For additional information and support, you may visit the official Tangkula store on Amazon: Tangkula Store
