1. Ifihan
This manual provides essential information for the safe and efficient operation of your Superday Mini Portable Washing Machine. Please read it thoroughly before first use and retain it for future reference. This compact and portable washing machine is designed for small loads, making it ideal for apartments, dormitories, RVs, and camping.
Image 1.1: Superday Mini Portable Washing Machine with its detachable spin basket.
Awọn ẹya pataki:
- Excellent Cleaning: Equipped with an ultra-high power pure copper motor for thorough cleaning.
- Kekere ati Gbigbe: Compact dimensions (14.96"W x 14.57"D x 21.65"H) with 6.6LBS washing capacity and 2.2LBS spinning capacity.
- Apẹrẹ ti eniyan: Features a transparent visual barrel body and a thickened lid for durability and easy monitoring.
- Rọrun lati Ṣiṣẹ: Two rotary switches for washing time (up to 15 minutes) and spinning time (up to 5 minutes).
2. Awọn ilana aabo
Lati dinku eewu ina, mọnamọna, tabi ipalara, nigbagbogbo tẹle awọn iṣọra ipilẹ wọnyi:
- Ka gbogbo awọn ilana ṣaaju lilo ohun elo naa.
- Ma ṣe ṣiṣẹ ohun elo eyikeyi pẹlu okun ti o bajẹ tabi plug.
- Do not immerse the electrical parts of the machine in water or other liquids.
- Pa awọn ọmọde kuro ninu ohun elo lakoko iṣẹ.
- Rii daju pe a gbe ẹrọ naa sori iduro, ipele ipele.
- Yọọ ẹrọ kuro ni iṣan agbara nigbati ko si ni lilo tabi ṣaaju ṣiṣe mimọ.
- Do not wash items that are soiled with flammable liquids or explosives.
- Use only detergents specified for washing machines.
3. Ọja Ipariview
Familiarize yourself with the components of your portable washing machine:
Image 3.1: Key features and components of the Superday Mini Portable Washing Machine.
- Visual Barrel Body: Transparent design allows you to monitor the washing process and water level.
- Detachable Drain Basket: Used for spin-drying clothes after washing.
- Imudani ẹgbẹ: Fun irọrun gbigbe ati gbigbe.
- Outlet Pipe: Fun fifa omi kuro ninu ẹrọ naa.
- Ibi iwaju alabujuto: Features wash/spin timer and program selector.
- Upgraded Pulsator: Designed for effective cleaning and preventing clothing entanglement.
4. Eto
Before operating your washing machine, follow these setup steps:
- Ṣii silẹ: Carefully remove the washing machine from its packaging. Check for any damage during transit.
- Ibi: Place the machine on a firm, level surface to prevent vibration and noise during operation. Ensure there is enough space around it for ventilation and access.
- Asopọ agbara: Pulọọgi okun agbara sinu iṣan itanna ti ilẹ.
- Sisan omi: Position the outlet pipe to drain water into a sink, bucket, or floor drain. Ensure the pipe is not kinked or blocked.
Image 4.1: Product dimensions for placement consideration.
5. Isẹ
Operating your Superday Mini Portable Washing Machine involves a few simple steps for both washing and spinning:

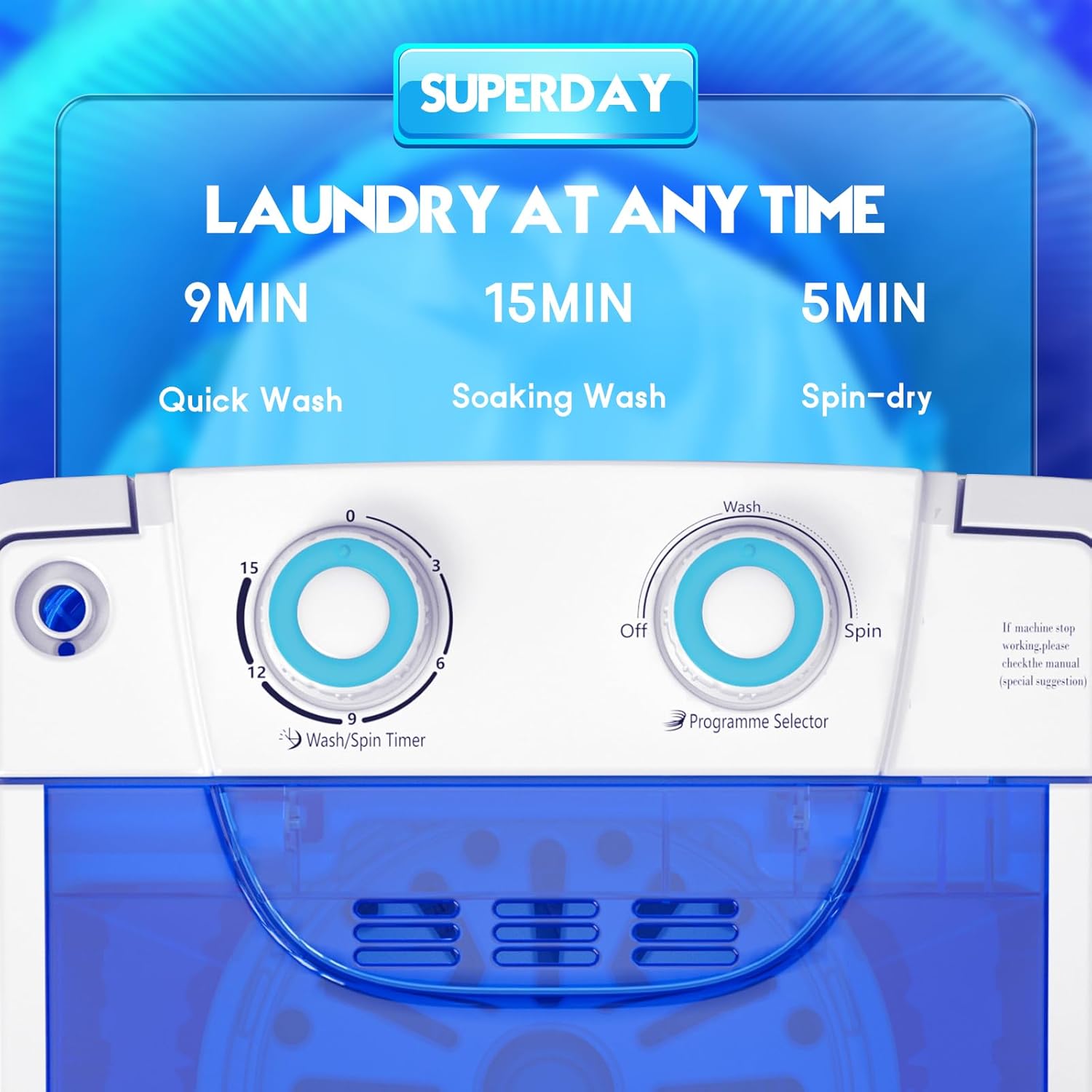

Image 5.1: Control panel with wash/spin timer and program selector.
5.1 Ìyípo Ìfọṣọ
- Aso Aso: Place your clothes into the washing tub. Do not overload the machine; ensure clothes can move freely. The maximum washing capacity is 6.6 LBS.
- Fi omi kun: Fill the tub with water to the desired level. You can use a hose or pour water directly into the tub.
- Ṣafikun Detergent: Add an appropriate amount of detergent suitable for washing machines.
- Yan Eto: Turn the 'Programme Selector' knob to 'Wash'.
- Ṣètò Àkókò Fọ: Turn the 'Wash/Spin Timer' knob to your desired washing duration (up to 15 minutes). For a quick wash, 9 minutes is often sufficient. For soaking wash, 15 minutes is recommended.
- Bẹrẹ Fifọ: The machine will begin the washing cycle. The transparent design allows you to observe the process.
- Sisan omi: Once the wash cycle is complete, turn the 'Programme Selector' to 'Drain' (if available, otherwise manually position the drain hose lower than the machine) to empty the water.
5.2 omo ere
- Awọn aṣọ gbigbe: After draining the wash water, transfer the washed clothes into the detachable drain basket. Ensure clothes are evenly distributed to prevent imbalance during spinning.
- Fi Agbọn sii: Place the loaded drain basket into the spin tub.
- Ṣètò Àkókò Ìyípo: Turn the 'Wash/Spin Timer' knob to your desired spinning duration (up to 5 minutes).
- Bẹrẹ Yiyi: The machine will begin the spin cycle.
- Yọ awọn aṣọ kuro: Once the spin cycle is complete, carefully remove the clothes. They will be damp but significantly drier.
Image 5.2: Operational steps and benefits, including the detachable drainage basket.
6. Itọju
Itọju deedee ṣe idaniloju igba pipẹ ati iṣẹ to dara julọ ti ẹrọ fifọ rẹ:
- Ninu Ode: Mu ese ita ẹrọ naa pẹlu asọ, damp asọ. Ma ṣe lo abrasive ose tabi epo.
- Mimọ inu inu: Periodically clean the inside of the washing tub and spin basket to prevent residue buildup. Rinse thoroughly with clean water.
- Sisọ okun: Ensure the drain hose is clear of blockages. If necessary, remove and clean it.
- Ibi ipamọ: When not in use for extended periods, ensure the machine is completely dry. Store it in a cool, dry place away from direct sunlight.
7. Laasigbotitusita
Tọkasi apakan yii fun awọn ọran ti o wọpọ ati awọn ojutu wọn:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Ẹrọ ko bẹrẹ | Ko edidi ni; Agbara otage; Aago kò sí ní pàtó. | Check power connection; Verify power supply; Set the timer knob. |
| Omi ko ni fa | Drain hose kinked or blocked; Drain hose not positioned correctly. | Straighten the drain hose; Clear any blockages; Ensure the drain hose is lower than the machine. |
| Ariwo/ariwo ti o pọ ju nigba yiyi lọ | Clothes unevenly distributed in spin basket; Machine not on a level surface. | Redistribute clothes evenly; Place machine on a stable, level surface. |
| Washing performance is poor | Overloading; Insufficient water or detergent. | Reduce load size; Add appropriate amount of water and detergent. |
8. Awọn pato
Detailed technical specifications for the Superday Mini Portable Washing Machine:
- Orukọ Brand: Ojo nla
- Awọn iwọn ọja: 14.57"D x 14.96"W x 21.65"H
- Agbara fifọ: 6.6 iwon
- Spinning Capacity: 2.2 Pounds (approximate, based on typical ratios for this type of machine)
- Iyara Iyipo ti o pọju: 1400 RPM
- Iru fifi sori ẹrọ: Sisun
- Ẹya Pataki: Ṣiṣe giga
- Àwọ̀: Buluu
- Ibi Wiwọle: Top Fifuye
- Iru nkan elo: Ṣiṣu
- Awọn lilo ti a ṣe iṣeduro: Residential (Home, Apartments, RV, Dormitory)
9. Atilẹyin ọja ati Support
Superday is committed to providing high-quality products and customer satisfaction. Your Superday Mini Portable Washing Machine comes with a standard warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions.
For any questions, concerns, or technical support, please contact our customer service team. We aim to respond to inquiries within 24 hours.
Ibi iwifunni:
- Refer to the contact details provided in your product packaging or on the official Superday webojula.
Image 9.1: Superday customer service support details.
