1. Ifihan
This manual provides detailed instructions for the installation, operation, and maintenance of your SPYMINNPOO S869 Electric LCD Display Meter. This display is designed to provide clear and precise information about your electric bike or scooter's performance, including speed, battery status, and other essential data. It is compatible with DC 24V, 36V, and 48V systems and features an SM plug for easy connection.
2. Alaye Aabo
- Always ensure the power is off before installing or removing the display meter.
- Do not attempt to disassemble or modify the display meter, as this may void the warranty and cause damage.
- Keep the display meter away from extreme temperatures, direct sunlight for prolonged periods, and corrosive substances.
- While the display is designed to be rainproof, prolonged exposure to heavy rain is not recommended.
- Rii daju pe gbogbo awọn asopọ wa ni aabo lati ṣe idiwọ awọn kukuru itanna tabi awọn aiṣedeede.
3. Package Awọn akoonu
Jẹrisi pe gbogbo awọn ohun kan wa ninu package:
- 1 x Electric LCD Display Meter (S869)
- 1 x Itọsọna olumulo
4. Awọn pato
| Ẹya ara ẹrọ | Sipesifikesonu |
|---|---|
| Awoṣe | S869 |
| Ohun elo | ABS |
| Iwọn ọja (L x W x H) | Nǹkan bíi 80 x 50 x 14 mm (3.15 x 1.97 x 0.55 inches) |
| Suitable Handlebar Diameter | Nǹkan bíi 22.2 mm (0.87 inches) |
| Voltage ibamu | DC 24V, 36V, 48V |
| Asopọmọra Iru | SM Plug (5-core common plug) |
| USB Ipari | Nǹkan bíi 1640 mm (64.56 inches) |
| Iwọn Nkan | Approx. 138 Grams |
| Ifihan Iru | High Definition LCD, Backlit |
| Awọn ẹya ara ẹrọ | Speed, Battery Status, PAS Level, Odometer, Smart Chip |
5. Eto ati fifi sori
Follow these steps to properly install your S869 Electric LCD Display Meter:
5.1 Iṣagbesori Ifihan
- Identify a suitable position on your handlebar (typically near the left grip) that allows for clear visibility and easy access to buttons. The display is designed for 22.2mm handlebars.
- Loosen the screw on the display's mounting bracket.
- Place the display bracket around the handlebar and tighten the screw until the display is securely fixed but can still be adjusted for optimal viewigun igun.
5.2 Nsopọ awọn okun
- Locate the SM plug cable extending from your S869 display meter.
- Connect this plug to the corresponding SM plug on your electric bike or scooter's controller or wiring harness. Ensure the connection is firm and fully seated.
- Route the cable neatly along the handlebar and frame, securing it with cable ties if necessary, to prevent interference with moving parts.
5.3 Ti ara Mefa
For reference, the physical dimensions of the S869 display are provided below:
6. Awọn ilana Iṣiṣẹ
The S869 display provides real-time data and control over your electric bike or scooter. Familiarize yourself with the display interface and button functions.
6.1 Agbara Tan / Pa
- Lati Fi agbara: Tẹ mọlẹ Bọtini agbara (middle button) for a few seconds until the display illuminates.
- Lati Paarẹ: Tẹ mọlẹ Bọtini agbara again for a few seconds until the display turns off.

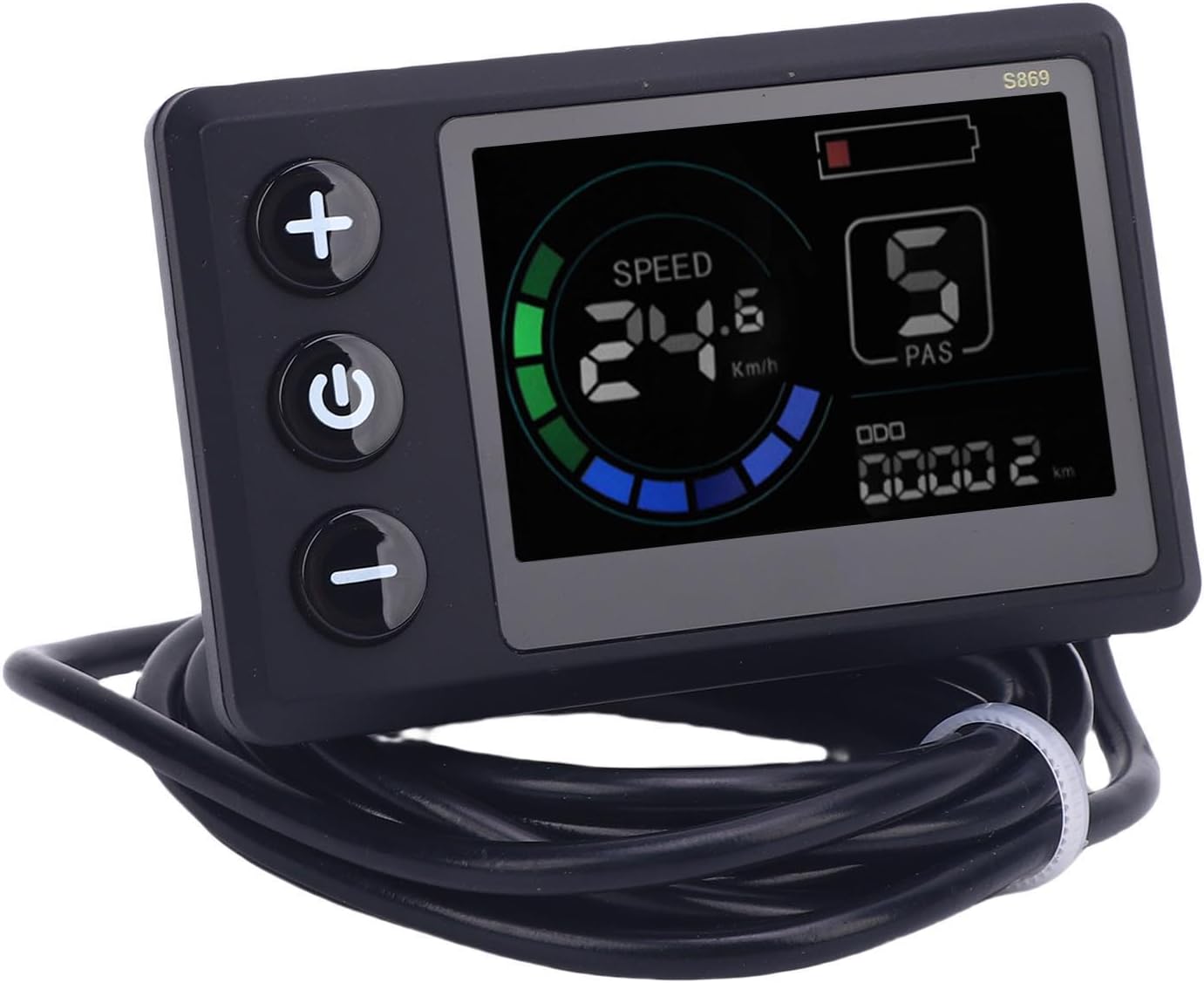

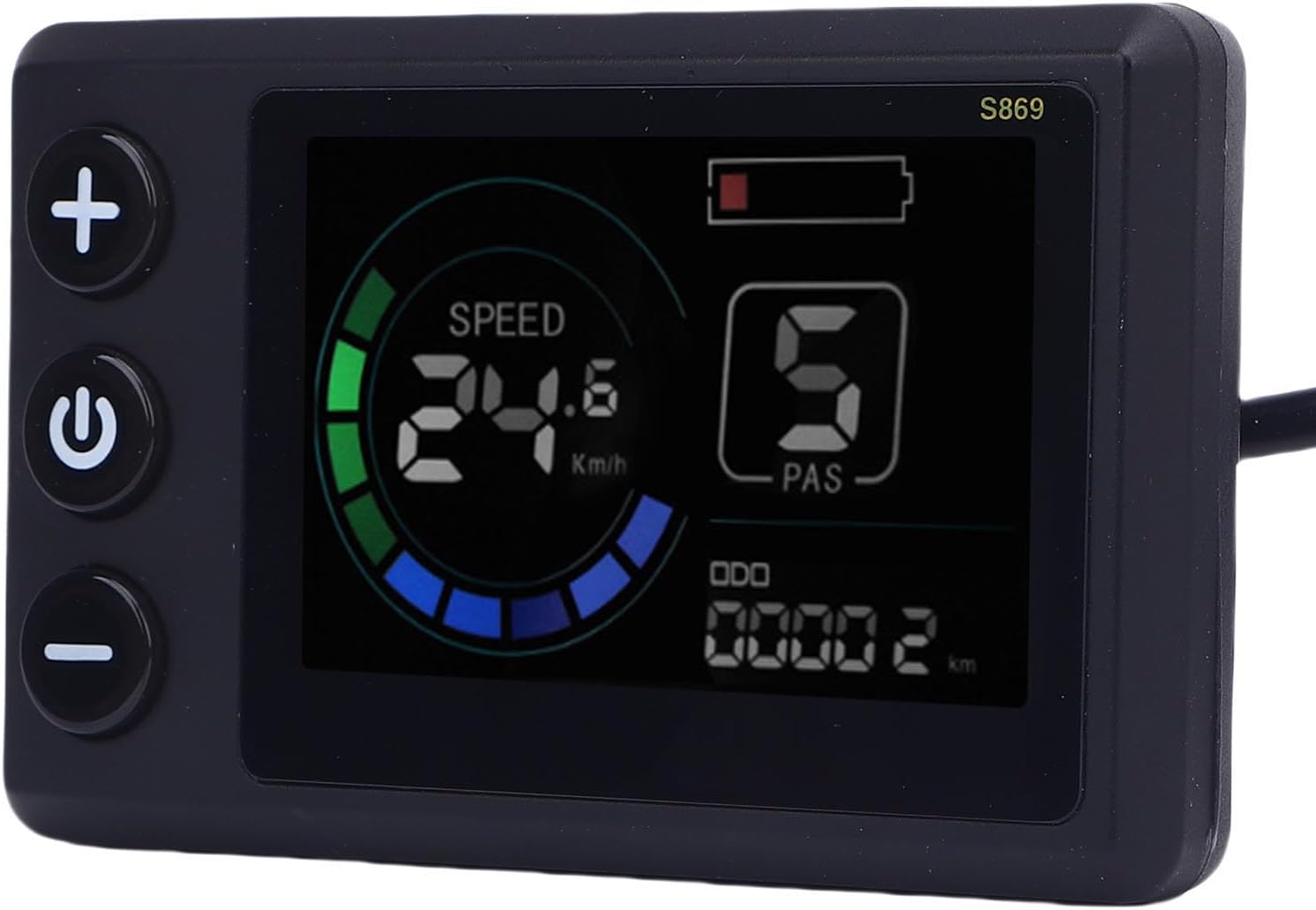

6.2 ifihan Awọn iṣẹ
Iboju LCD n pese awọn alaye wọnyi:
- Iyara: Displays current riding speed (e.g., km/h or mph).
- Ipo Batiri: Indicates the remaining battery charge level.
- Ipele PAS: Shows the current Pedal Assist System level (e.g., 0-5), controlling the motor's assistance.
- ODO (Odometer): Displays the total distance traveled.
- Ijinna Irin ajo: (If available) Displays the distance for the current trip.
6.3 bọtini Awọn iṣẹ
- '+' Button (Top): Typically used to increase the PAS level or navigate upwards in menu settings.
- Bọ́tìnì Agbára (Àárín): Used to power the display on/off. A short press may cycle through display modes (e.g., ODO, Trip).
- '-' Button (Bottom): Typically used to decrease the PAS level or navigate downwards in menu settings.
7. Itọju
Proper maintenance ensures the longevity and optimal performance of your S869 display meter.
- Ninu: Mu ese iboju ati ara pẹlu asọ, damp asọ. Ma ṣe lo awọn afọmọ abrasive, awọn nkanmimu, tabi awọn kẹmika lile, nitori iwọnyi le ba iboju jẹ tabi casing.

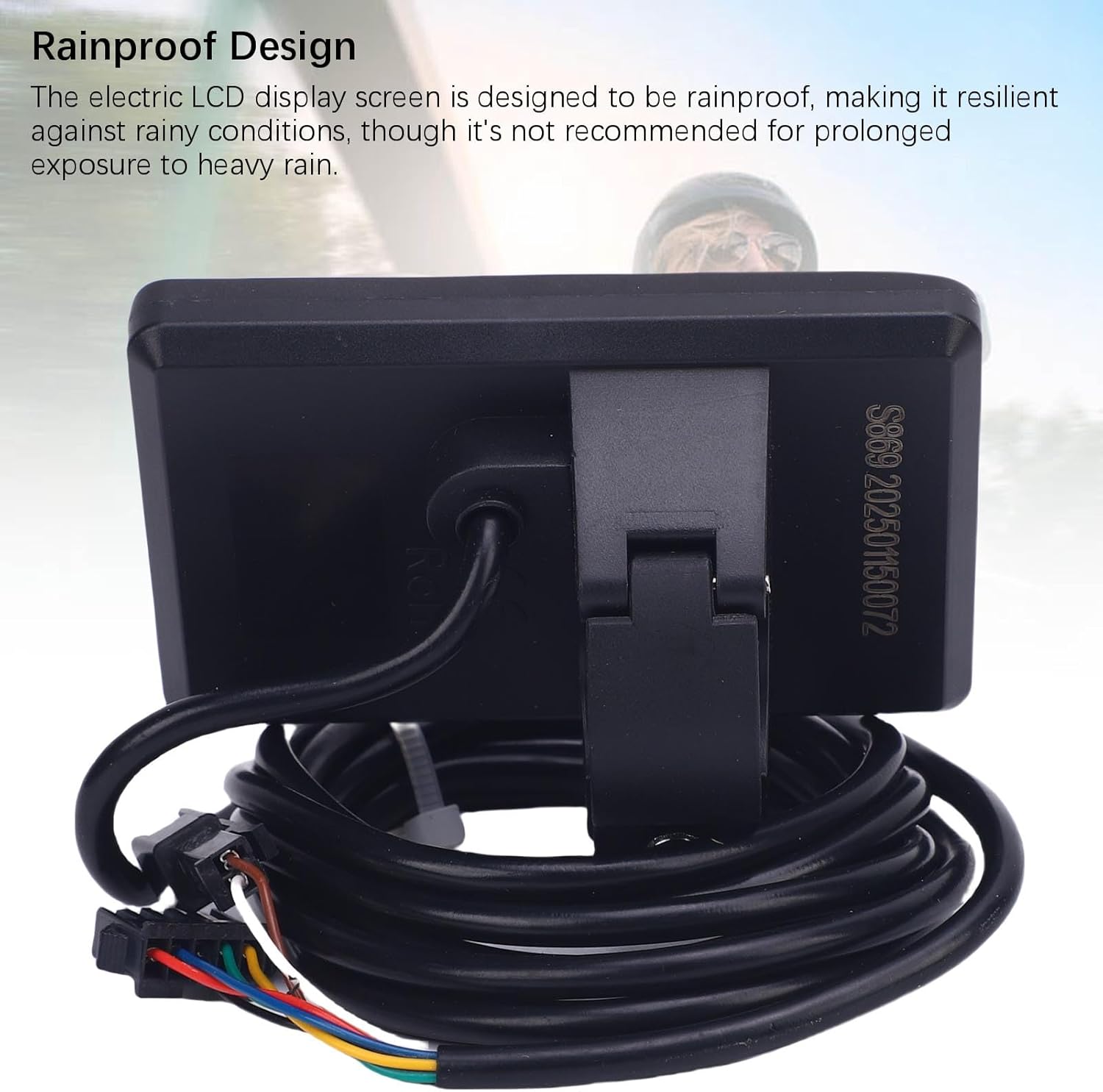

- Omi Resistance: The display features a rainproof design, offering protection against light rain and splashes. However, avoid submerging the device in water or exposing it to high-pressure water jets.
8. Laasigbotitusita
If you encounter issues with your S869 display meter, refer to the following table for common problems and solutions:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Ifihan ko ni agbara lori | Loose USB asopọ No power from battery Aṣiṣe ifihan | Check all cable connections, especially the SM plug. Ensure the e-bike/scooter battery is charged and powered on. If connections are secure and power is present, contact support. |
| No speed reading | Speed sensor issue Loose USB asopọ | Check the speed sensor and its connection to the controller. Verify all display cables are securely connected. |
| Dátà tí kò tọ́ hàn | Eto ti ko tọ Aṣiṣe sensọ | Refer to your e-bike/scooter controller manual for display settings. Check relevant sensors for damage or loose connections. |
| Awọn bọtini ko dahun | Aṣiṣe sọfitiwia Ipalara ti ara | Try powering the display off and on again. Inspect buttons for physical damage or debris. |
9. Atilẹyin ọja ati Support
9.1 atilẹyin ọja Alaye
The SPYMINNPOO S869 Electric LCD Display Meter comes with a manufacturer warranty for 90 days from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.
9.2 Onibara Support
For technical assistance, warranty claims, or any questions regarding your SPYMINNPOO S869 Electric LCD Display Meter, please contact your retailer or the manufacturer's customer service. Please have your purchase receipt and product model number (S869) available when contacting support.
