Ọrọ Iṣaaju
This manual provides essential information for the safe operation, maintenance, and troubleshooting of your Ausom Electric Scooter. Please read this manual thoroughly before your first ride to ensure proper use and to maximize the lifespan of your scooter.
Awọn ẹya pataki:
- 15.6Ah Battery for extended range
- Up to 70km Max Range
- LED Touch Display for easy monitoring
- E-ABS + Front & Rear Disc Brakes for reliable stopping power
- 10 inch Vacuum Tubeless Tires for a smooth ride
- 130kg Max Load capacity
- Enhanced Suspension for improved comfort
Awọn Itọsọna Aabo
Always prioritize safety when operating the electric scooter. Failure to follow safety guidelines can result in injury or damage to the scooter.
- Wear a helmet and appropriate protective gear (knee pads, elbow pads) at all times.
- Rii daju pe gbogbo awọn boluti ati awọn idasilẹ iyara ti wa ni ṣinṣin ni aabo ṣaaju gigun kọọkan.
- Má ṣe gun kẹ̀kẹ́ ní òjò líle, yìnyín, tàbí ní àyíká òtútù.
- Tẹle awọn ofin ijabọ agbegbe ati ilana.
- Ṣetọju ijinna ailewu lati awọn ọkọ ayọkẹlẹ miiran ati awọn ẹlẹsẹ.
- Yago fun gigun labẹ ipa ti ọti-lile tabi oogun.
- Do not perform stunts or aggressive maneuvers.
- Agbara ẹrù tó pọ̀ jùlọ jẹ́ 130 kg. Má ṣe kọjá ààlà yìí.
Eto ati Apejọ
Your Ausom Electric Scooter comes partially assembled. Follow these steps to prepare it for its first use.
- Unboxing: Carefully remove the scooter and all accessories from the packaging. Retain packaging for future storage or transport.
- Fifi sori ẹrọ amudani:
Lift the handlebar stem to its upright position. Secure the folding mechanism latch. Attach the handlebars to the stem, ensuring all cables are not pinched. Tighten any screws as per the included quick start guide.
- Idiyele Ibẹrẹ: Ṣaaju lilo akọkọ, gba agbara si batiri ẹlẹsẹ ni kikun.
- Locate the charging port, usually near the battery compartment.
- Connect the charger to the scooter, then plug it into a power outlet.
- The charging indicator on the charger will change (e.g., red to green) when fully charged.
- Ma ṣe gba agbara si batiri ju.
- Ayewo Ṣaaju Ride:
- Ṣayẹwo titẹ taya.
- Verify brake functionality (front and rear).
- Ensure all lights (headlight, taillight, turn signals) are working.
- Confirm the folding mechanism is securely locked.

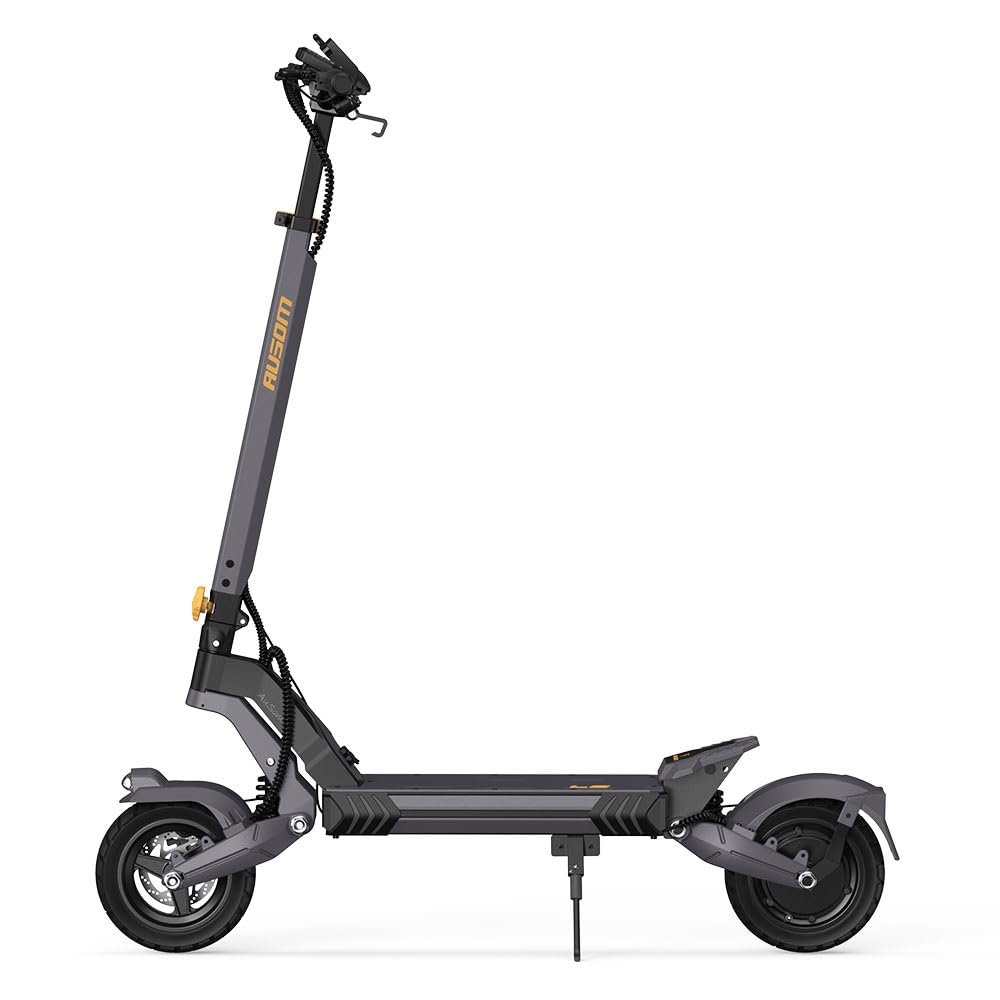

Image: Ausom Electric Scooter with key dimensions (length 1250mm/49.2in, height 1380mm/54.3in, handlebar width 680mm/27in, folded height 560mm/22in).
Image: Ausom Electric Scooter shown next to a person for scale, illustrating its dimensions (138cm height, 125cm length) and folded dimensions (56cm height, 54cm length, 68cm width).
Awọn ilana Iṣiṣẹ
- Titan/Apapa: Press and hold the power button on the LED Touch Display to turn the scooter on or off.
- LED Touch Display: The display shows speed, battery level, riding mode, and other vital information. Refer to the quick start guide for specific display functions and settings adjustments.
- Isare: Gently press the throttle lever to accelerate. Start slowly and gradually increase speed.
- Braking: Use the brake levers on the handlebars to engage the E-ABS and disc brakes. Apply both brakes simultaneously for optimal stopping power.
- Kika ati ṣiṣi silẹ:
The scooter features a double folding system for quick storage and transport. To fold, disengage the safety latch and release the folding mechanism near the base of the handlebar stem. Carefully fold the stem down until it locks into place with the rear fender. To unfold, reverse the process, ensuring the stem is fully upright and the safety latch is engaged before riding.
Image: Illustration of the Ausom Electric Scooter's double folding system, showing the handlebar stem folding down towards the deck for compact storage.
- Eto itanna: The scooter is equipped with a comprehensive lighting system for enhanced visibility.
- Imọlẹ iwaju: Located at the front, provides illumination for night riding.
- Àwọn Ìmọ́lẹ̀ Àmì Ìyípadà: For indicating turns, located on the sides.
- Imọlẹ: Located at the rear, improves visibility from behind.
Image: Ausom Electric Scooter highlighting its lighting system: (1) Headlight, (2) Turn Signal Lights, and (3) Taillight, demonstrating enhanced visibility.
- Awọn ẹya miiran:
Aworan: Isunmọ views of the Ausom Electric Scooter's additional features, including enhanced suspension, stable kickstand, anti-slip wide deck, ergonomic handle, turn signal button, and horn button, along with the LED display.
- Enhanced Suspension: Provides a smoother ride over varied terrain.
- Stable Kickstand: Fun ibi ipamọ ti o rọrun.
- Anti-Slip Wide Deck: Offers stable footing during rides.
- Imudani Ergonomic: Designed for comfortable grip.
- Ìwo: For alerting others.
Itoju
Itọju deede ṣe idaniloju gigun ati iṣẹ ailewu ti ẹlẹsẹ rẹ.
- Itọju Batiri:
- Gba agbara batiri nigbagbogbo, paapaa ti ko ba si ni lilo, lati ṣetọju ilera batiri.
- Yago fun fifa batiri naa patapata.
- Tọju ẹlẹsẹ naa ni itura, aye gbigbẹ, kuro lati orun taara ati awọn iwọn otutu to gaju.
- Itọju Taya:
- Ṣàyẹ̀wò ìfúnpá taya kí o tó bẹ̀rẹ̀ ìrìn àjò kọ̀ọ̀kan. Máa ṣe PSI tí a dámọ̀ràn fún iṣẹ́ àti ààbò tó dára jùlọ.
- Ṣe àyẹ̀wò àwọn taya fún ìbàjẹ́, ìjákulẹ̀, tàbí ìbàjẹ́.
- Eto Brake:
- Regularly check brake levers, cables, and disc brakes for proper function and wear.
- Adjust brakes as needed to ensure responsive stopping.
- Ninu:
- Pa ẹlẹsẹ-awọ kuro pẹlu ipolowoamp Aṣọ. Yẹra fún lílo omi líle tàbí àwọn kẹ́míkà líle.
- Má ṣe fi omi rì mọ́lẹ̀ sínú omi.
- Awọn ohun mimu: Periodically check and tighten all screws, bolts, and connections.
Laasigbotitusita
If you encounter issues with your scooter, refer to the following common problems and solutions.
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Scooter ko ni agbara lori | Low or depleted battery; Loose battery connection; Faulty power button | Charge the battery fully; Check battery connections; Contact support if button is faulty |
| Agbegbe tabi agbara ti o dinku | Àwọn táyà tí kò ní ìgbóná tó; Bátìrì ń bàjẹ́; Gígùn òkè nígbàkúgbà; Ẹrù tó wúwo | Inflate tires to recommended PSI; Ensure full charge; Adjust riding style; Reduce load |
| Brakes feel weak or unresponsive | Worn brake pads; Loose brake cable; Air in hydraulic system (disc brakes) | Inspect and replace brake pads; Adjust brake cable tension; Seek professional service for hydraulic brakes |
| Awọn ariwo ti ko wọpọ lakoko iṣẹ | Loose components; Debris in wheels/brakes; Motor issue | Inspect all fasteners; Clean wheels and brakes; Contact support for motor issues |
For issues not listed here or if troubleshooting steps do not resolve the problem, please contact Ausom customer support.
Awọn pato
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Brand | Ausom |
| Orukọ awoṣe | Ausom |
| O pọju fifuye Agbara | 120 kilogram (264 lbs) |
| Ohun elo fireemu | Aluminiomu |
| Kẹkẹ Iwon | 10 inches |
| Kẹkẹ elo | Roba sintetiki |
| Kẹkẹ Iru | Pneumatic |
| Idaduro Iru | Idaduro ni kikun |
| Brake Iru | Front and Rear Braking (E-ABS + Disc Brakes) |
| Mu Iru | Ti kii ṣe isokuso |
| ASIN | B0FB3TMM73 |
Akiyesi: Awọn alaye ni o wa labẹ iyipada laisi akiyesi.
Atilẹyin ọja ati Support
Alaye Atilẹyin ọja: For details regarding the warranty coverage for your Ausom Electric Scooter, please refer to the warranty card included with your purchase or contact your retailer.
Atilẹyin Onibara: If you have any questions, require technical assistance, or need to report an issue, please contact Ausom customer service.
- Visit the official Ausom webojula fun support alaye olubasọrọ.
- Tọ́ka sí ìwé ìrajà rẹ fún àwọn ikanni ìrànlọ́wọ́ pàtó kan.
