ADVWIN Model 303300 Water Cooler Dispenser and Nugget Ice Maker User Manual

Ọrọ Iṣaaju

Thank you for choosing the ADVWIN Model 303300 Water Cooler Dispenser and Nugget Ice Maker. This manual provides important information regarding the safe operation, installation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before use and retain it for future reference.

This appliance is designed to produce nugget ice and dispense water, offering convenience for your home or office. It features a 1.8L water tank and a 1.2KG ice basket, capable of producing up to 20KG of nugget ice daily.

Alaye Aabo pataki

ÌKÌLỌ̀: Láti dín ewu iná, ìkọlù iná mànàmáná, tàbí ìpalára kù, máa tẹ̀lé àwọn ìlànà ààbò pàtàkì nígbà tí o bá ń lo ohun èlò yìí.

• Ka gbogbo awọn itọnisọna ṣaaju ṣiṣe ẹrọ.
• Rii daju pe iṣan agbara voltage baamu awọn ibeere ohun elo naa.
• Ma ṣe fi okun agbara, pulọọgi, tabi ohun elo sinu omi tabi awọn olomi miiran.
• Unplug the appliance from the outlet when not in use, before cleaning, or before performing any maintenance.
• Ma ṣe ṣiṣẹ ohun elo eyikeyi pẹlu okun tabi plug ti o bajẹ, tabi lẹhin aiṣe ohun elo tabi ti bajẹ ni eyikeyi ọna. Kan si iṣẹ alabara fun iranlọwọ.
• Maṣe lo ni ita. Ohun elo yii wa fun lilo inu ile nikan.
• Ma ṣe gbe sori tabi sunmọ gaasi ti o gbona tabi ina ina, tabi ni adiro ti o gbona.
• Maṣe lo ohun elo fun ohunkohun miiran ju idi ti o pinnu lọ.
• Keep children away from the appliance. Close supervision is necessary when any appliance is used by or near children.
• Maṣe lo awọn ẹrọ imukuro abrasive tabi awọn nkan didasilẹ lati sọ ẹrọ di mimọ.
• Rii daju pe a gbe ohun elo sori iduro, ipele ipele.
• Allow at least 4 inches (10 cm) of clearance around the appliance for proper ventilation.

Ọja Pariview

The ADVWIN Model 303300 is a compact and efficient appliance designed to provide fresh nugget ice and chilled water. Key features include:

• Iṣelọpọ Iyẹ Nugget: Ó ń mú kí yìnyín rírọ̀ tí ó sì ṣeé jẹ jáde.
• Agbara nla: Features a 1.8L water tank and a 1.2KG ice basket.
• Ijade lojoojumọ giga: Capable of producing up to 20KG of ice per day.
• Awọn iṣakoso ore-olumulo: Simple and clear touch control panel.
• Iṣẹ Isọ-ara-ẹni: Automated cleaning for convenience.
• Awọn itọkasi: Ice-full indicator and water shortage gbigbọn.

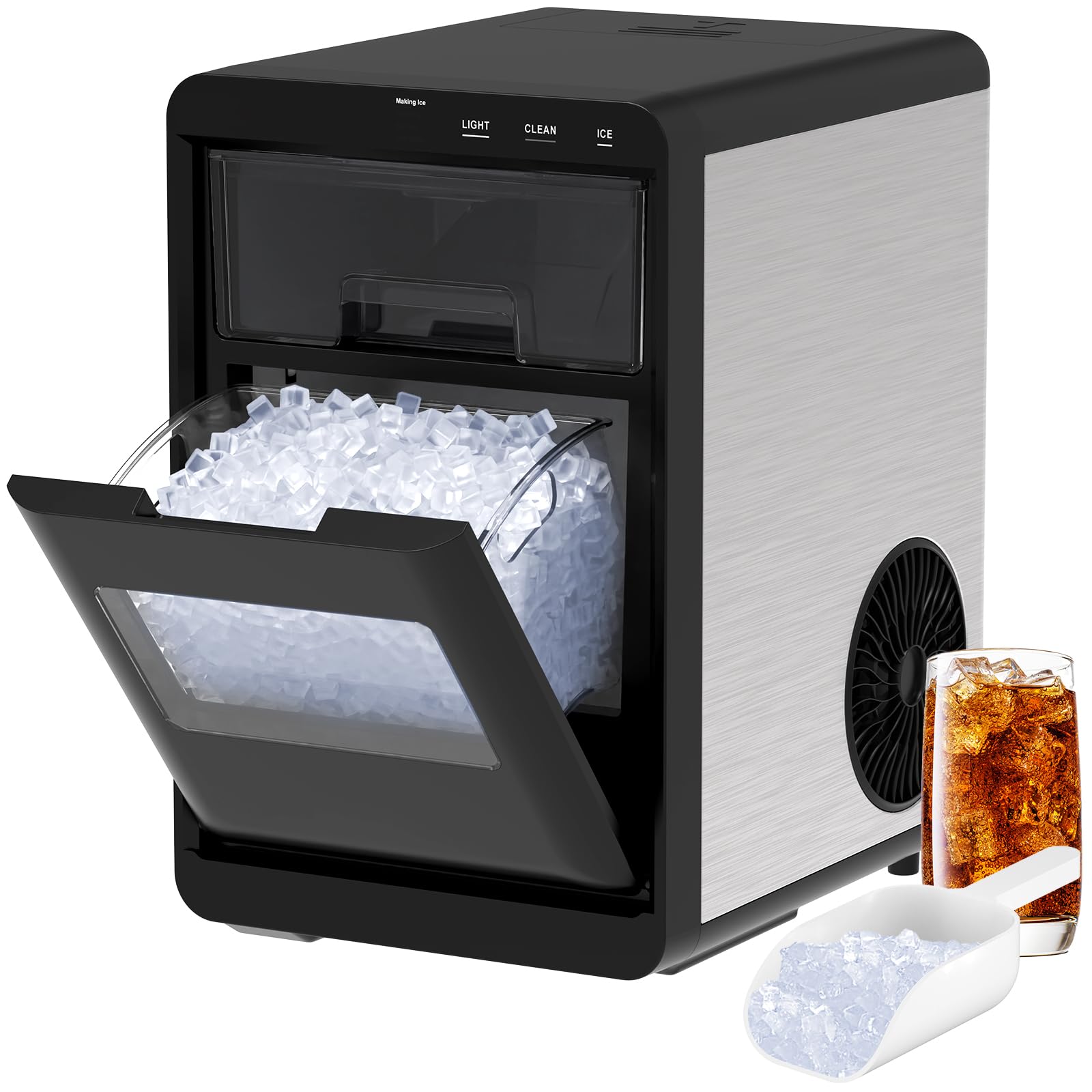

Aworan: Iwaju view of the ADVWIN ice maker highlighting its fast ice production capabilities, including nugget ice type, 1.8L water tank, 20kg daily capacity, and 1.2kg ice basket.

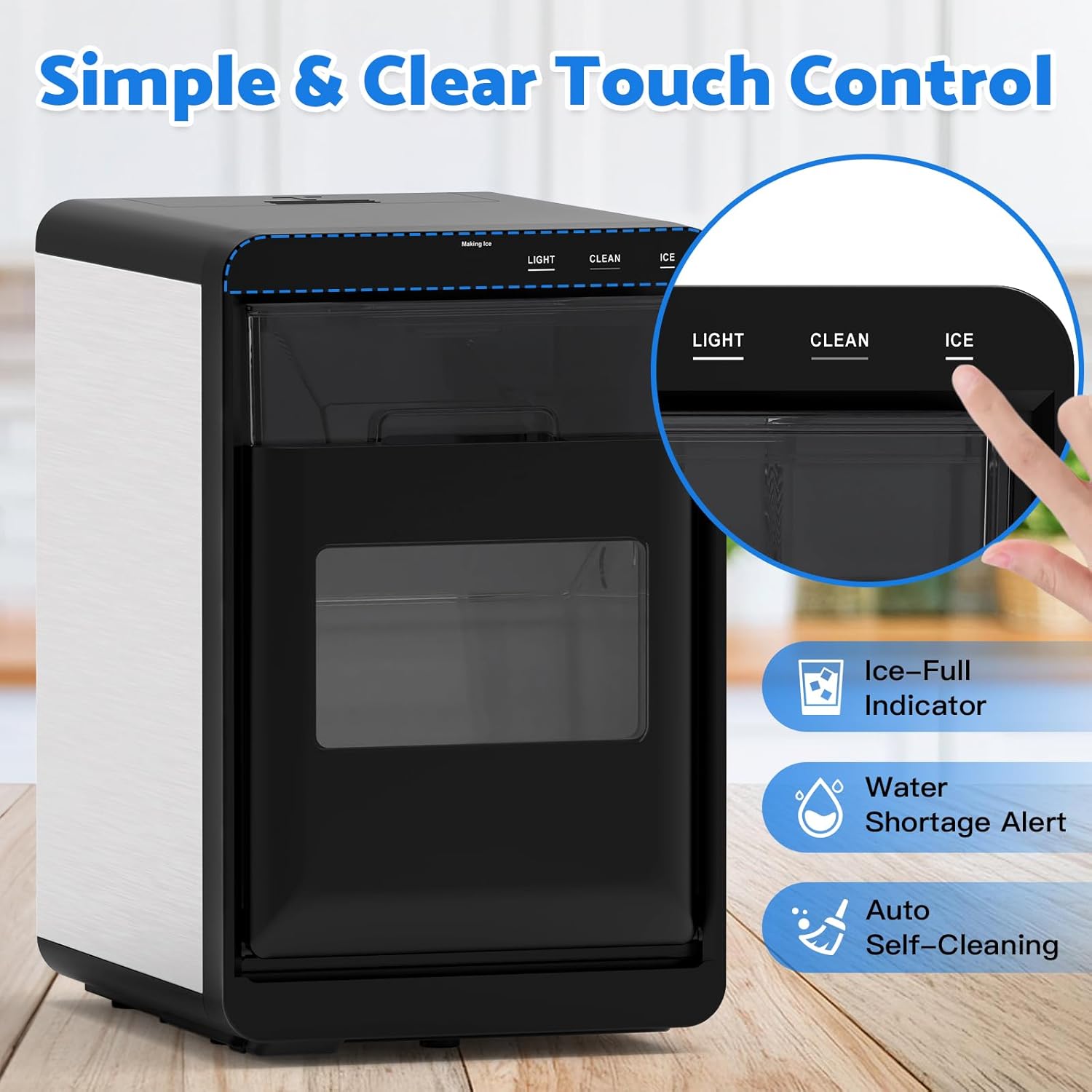

Image: Detail of the control panel on the ADVWIN ice maker, illustrating the touch controls for 'LIGHT', 'CLEAN', and 'ICE' functions, and visual indicators for ice-full, water shortage, and self-cleaning status.

Awọn ilana iṣeto

1. Ṣii silẹ: Carefully remove the appliance from its packaging. Retain packaging materials for future transport or storage. Inspect the unit for any damage.
2. Ibi:
   • Place the ice maker on a firm, level surface away from direct sunlight and heat sources (e.g., stoves, furnaces, radiators).
   • Rii daju pe o kere ju 4 inches (10 cm) ti aaye ni ayika ẹyọ naa fun gbigbe afẹfẹ to dara.
   • Ma ṣe dina awọn ṣiṣi atẹgun.


   Image: The compact dimensions of the ADVWIN ice maker (38cm H x 24cm W x 34.5cm D), demonstrating its suitability for various counter spaces. An ice scoop and ice basket are also shown.

3. Ìfọ̀mọ́ àkọ́kọ́: Ṣaaju lilo akọkọ, nu inu ti oluṣe yinyin.
   • Open the drain plug at the bottom of the unit to drain any residual water.
   • Fi aṣọ rirọ nu inu ile naa dampened with warm water and a mild detergent. Rinse thoroughly.
   • Run a self-cleaning cycle (refer to "Operating Instructions" for details).
4. Kun Omi Omi:
   • Ṣii ideri ojò omi.
   • Fill the 1.8L water tank with clean, potable water up to the MAX fill line. Do not overfill.
   • Ti ideri ojò omi naa lailewu.
5. Asopọ agbara: Pulọọgi okun agbara sinu iṣan itanna ti ilẹ.

Awọn ilana Iṣiṣẹ

Ṣiṣe Ice

1. Ensure the water tank is filled with water and the unit is plugged in.
2. Press the "ICE" button on the control panel to start the ice-making cycle. The "ICE" indicator light will illuminate.
3. The ice maker will begin producing nugget ice. The first batch of ice may take slightly longer.
4. When the ice basket is full, the "ICE-FULL" indicator will light up, and the ice making process will pause automatically.
5. When the water level is low, the "WATER SHORTAGE" indicator will light up. Refill the water tank to resume ice production.
6. To stop ice production, press the "ICE" button again.

Image: The ADVWIN nugget ice maker positioned in a kitchen, displaying its open front door with a full basket of freshly made nugget ice, ready for use. An ice scoop is visible next to it.

Iṣẹ Isọ-ara-ẹni

The self-cleaning function helps maintain the hygiene of your ice maker.

1. Rii daju pe ojò omi ti kun pẹlu omi mimọ.
2. Press and hold the "CLEAN" button for a few seconds to activate the self-cleaning cycle. The "CLEAN" indicator light will illuminate.
3. The unit will circulate water through its internal system. This cycle typically lasts several minutes.
4. Once the cycle is complete, drain the water from the unit using the bottom drain plug.
5. Repeat the cleaning cycle with fresh water if necessary.

Aworan: inu view of the ADVWIN ice maker during its self-cleaning cycle, showing water being circulated through the system. A detailed inset highlights the bottom drain plug for convenient water drainage.

Itoju

Deede Cleaning

• Òde: Pa ode nu pẹlu asọ, damp asọ. Maṣe lo awọn kẹmika ti o lewu tabi awọn afọmọ abrasive.
• Inu inu: Regularly perform the self-cleaning function. For a more thorough clean, unplug the unit, remove the ice basket, and wipe down the interior surfaces with a mild detergent solution. Rinse thoroughly and drain all water.
• Agbọn yinyin: Wash the ice basket with warm, soapy water and rinse well.

Sisọ ati Ibi ipamọ

• When storing the unit or if it will not be used for an extended period, ensure all water is drained from the tank and internal system using the bottom drain plug.
• Jẹ́ kí inú ilé gbẹ pátápátá kí o tó tọ́jú rẹ̀.
• Tọju ohun elo naa ni ibi ti o tutu, ti o gbẹ.

Laasigbotitusita

Awọn pato

Atilẹyin ọja ati Onibara Support

For warranty information or customer support, please refer to the warranty card included with your product or visit the official ADVWIN webAaye ayelujara. Jọwọ jẹ́ kí nọ́mbà àwòṣe rẹ (303300) àti ọjọ́ tí o rà wà nígbà tí o bá ń bá olùrànlọ́wọ́ sọ̀rọ̀.

Olupese: ADVWIN
