1. Ifihan
This manual provides essential information for the safe and effective operation of your YeeSite LED Stage Wash Light Bar. Please read these instructions thoroughly before installation and use, and retain them for future reference. This product is designed for professional stage lighting applications, offering versatile color mixing and control options.
2. Awọn ilana aabo
- Rii daju pe ipese agbara voltage matches the product's requirements (AC110–240V).
- Ma ṣe ṣi ẹrọ naa casing. Tọkasi gbogbo iṣẹ si oṣiṣẹ oṣiṣẹ.
- Yago fun ifihan oju taara si orisun ina.
- Jeki ẹrọ naa kuro ni omi, ọrinrin, ati awọn iwọn otutu to gaju.
- Ensure proper ventilation to prevent overheating. Do not block the fan or vents.
- Mount the fixture securely using the provided brackets.
- Ge asopọ agbara ṣaaju ṣiṣe mimọ tabi itọju.
3. Package Awọn akoonu
Jẹrisi pe gbogbo awọn ohun kan wa ninu package:
- 2 x 12LEDs RGBW Wash Light Bars
- 2 x Biraketi
- 1 x Itọsọna olumulo
Image: Package contents showing two light bars, mounting brackets, and the user manual.
4. Awọn ẹya Ọja
- Dual-Zone Lighting Design: Each light bar features 12 central RGBW LEDs for wall washing and RGB strips on both sides, enabling multi-zone effects.
- Awọn ọna Imọlẹ Ọpọ: Supports Auto Mode, 4 sound-activated modes, Strobe, Master/Slave sync, and DMX512 control (8/15/24/46 CH).
- Sound-Activated Control: Dedicated sound modes for RGB strip, RGBW LEDs, and random effects with adjustable sensitivity.
- Built-in Temperature-controlled Fan: Automatic fan activation between 50–65°C to prevent overheating.
- Iṣagbesori Rọrun: Includes brackets for flexible installation.
Image: Dual-zone lighting design with central RGBW LEDs and side RGB strips.
5. Eto
- Iṣagbesori: Attach the included brackets to the light bar using the provided screws. Securely mount the light bar to a truss, wall, or stand. Ensure the mounting surface can support the weight of the fixture.
- Asopọ agbara: Connect the power cable to a compatible AC110–240V power outlet. The light bar features an ON/OFF switch for quick power control.
- Asopọ DMX (Àṣàyàn): For DMX control, connect a DMX cable from your DMX controller to the DMX IN port of the first light bar. To link multiple units, connect a DMX cable from the DMX OUT port of the first unit to the DMX IN port of the next unit.

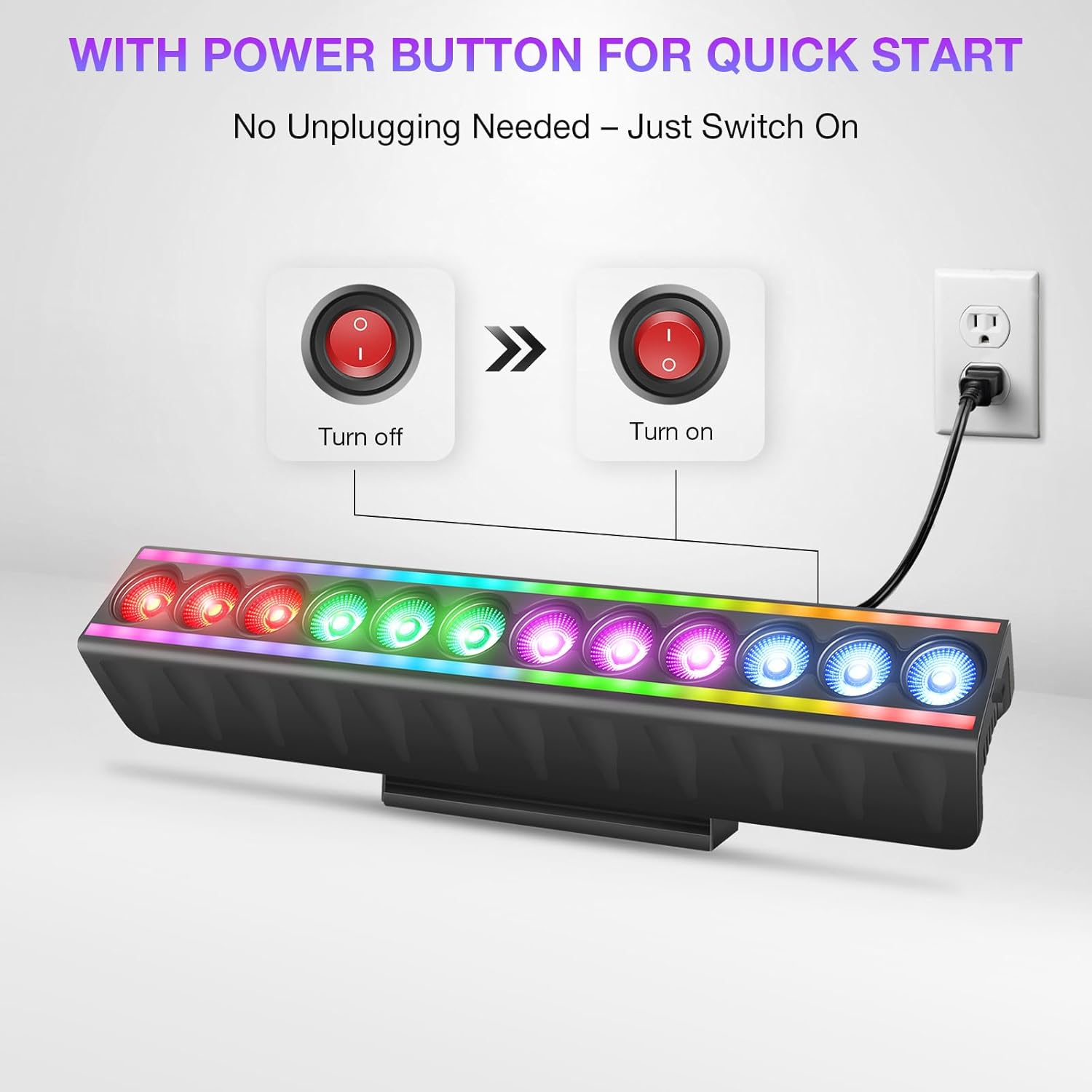

Image: Power button and connection for quick start.
6. Awọn ọna ṣiṣe
The LED Stage Wash Light Bar offers several operating modes:
- Ipo Aifọwọyi: The fixture cycles through pre-programmed light shows automatically.
- Ipo Mu Ohun-ṣiṣẹ: The lights react to ambient sound or music. There are 4 distinct sound-activated modes.
- Ipo Strobe: Produces a flashing light effect.
- Ọga/Ipo Ẹrú: Link multiple units where one acts as the master, controlling the others (slaves) for synchronized effects.
- Ipo Fihan: Access over 70 built-in shows (51 for RGB strip, 23 for RGBW LED wash) without DMX programming.
- DMX512 Iṣakoso: For advanced control using an external DMX controller.

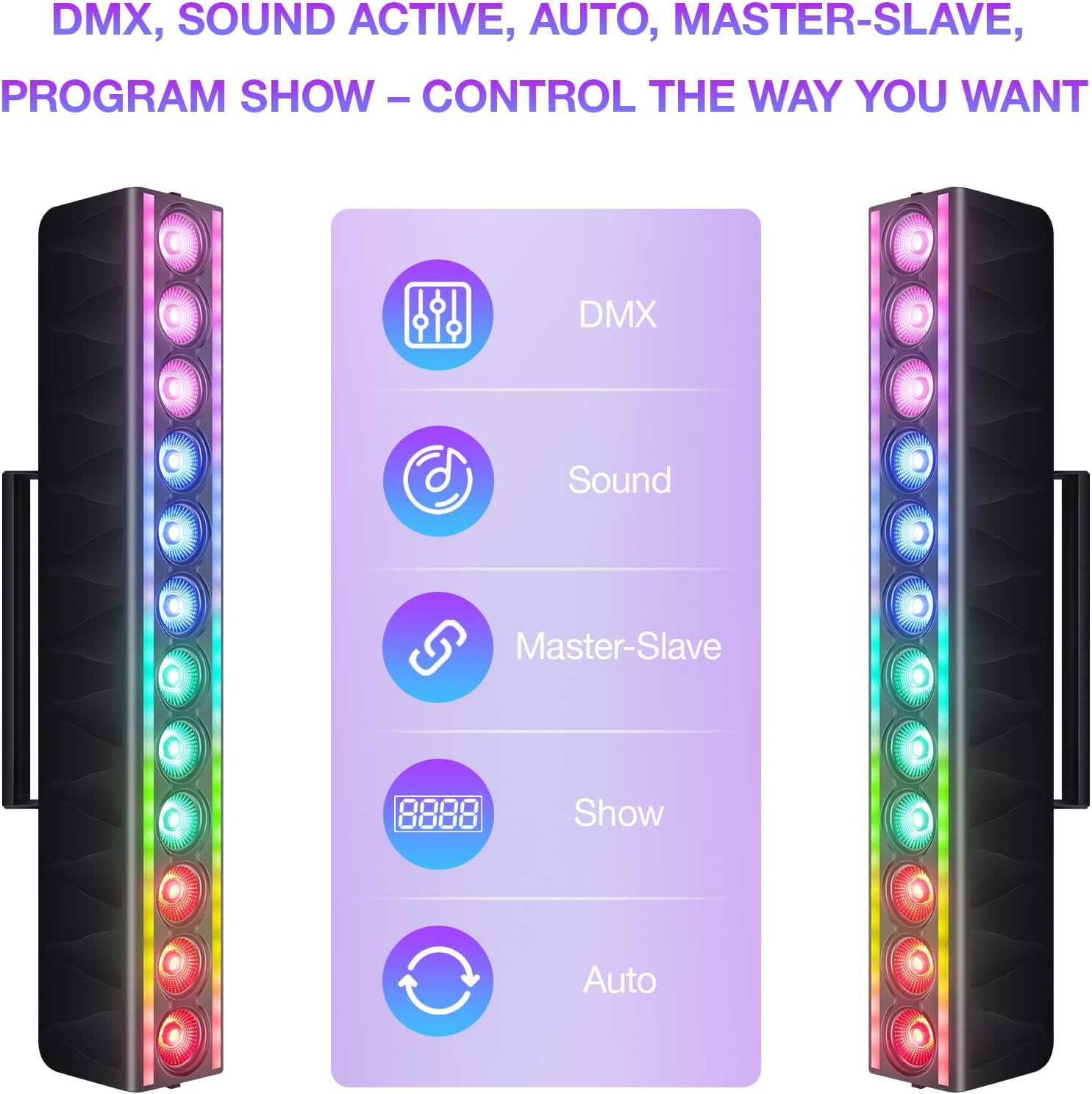

Image: Control options for the light bar.
7. DMX Iṣakoso
The light bar supports DMX512 protocol, allowing for precise control over its functions. It offers multiple channel modes:
- Ipo ikanni 8: Basic control over color mixing and effects.
- Ipo ikanni 15: Enhanced control, including individual color intensity.
- Ipo ikanni 24: More granular control over various parameters.
- Ipo ikanni 46: Full control, allowing customization of every LED zone for both RGB strips and RGBW LEDs.
Refer to the DMX chart in the full user manual for detailed channel assignments and values.
Image: DMX control setup with multiple light bars.
8. Itọju
- Ninu: Regularly clean the exterior of the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Isẹ Fan: The built-in fan activates automatically when the internal temperature reaches 50–65°C. Ensure the fan and vents are clear of obstructions to maintain optimal cooling.
- Ayewo: Periodically inspect power cables and DMX connections for any signs of damage. Replace damaged cables immediately.
Image: Smart temperature control with auto fan cooling.
9. Laasigbotitusita
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Light bar does not power on. | No power supply; power cable damaged; ON/OFF switch off. | Check power connection; replace cable if damaged; ensure switch is ON. |
| No light output in DMX mode. | Incorrect DMX address; DMX cable issue; DMX controller problem. | Verify DMX address setting; check DMX cable connections; test with another DMX controller. |
| Lights are not synchronized in Master/Slave mode. | Incorrect mode setting; faulty DMX connection between units. | Ensure one unit is set to Master and others to Slave; check DMX cables between units. |
| Light bar overheats. | Blocked ventilation; fan malfunction. | Ensure vents are clear; contact support if fan is not operating. |
10. Awọn pato
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Brand | YeeSite |
| Nọmba awoṣe | YS-079-12WL-S |
| Imọlẹ Orisun Orisun | Diode Emitting Light (LED) |
| Àwọ̀ | RGBW Stage Light Pẹpẹ |
| Wattage | 120 Wattis |
| Imọlẹ | 500 Lumen |
| Voltage | 110-240 Volts AC |
| Ohun elo | Ṣiṣu |
| Ọja Mefa | 20"L x 9"W x 6"H |
| Iwọn Nkan | 6.89 iwon |
| Iṣagbesori Iru | Akọmọ Mount |
| Awọn ikanni DMX | 8/15/24/46 CH |
11. Atilẹyin ọja ati Support
For warranty information and technical support, please refer to the documentation included with your product or visit the official YeeSite webojula. Tọju iwe-ẹri rira rẹ bi ẹri rira fun eyikeyi awọn ibeere atilẹyin ọja.
Ibi iwifunni:
- Ile Itaja Brand: YeeSite Amazon Store
