1. Alaye Aabo pataki
Please read all instructions carefully before using the AIRMATE HP20242R ceramic heater. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Máa gbé ẹ̀rọ ìgbóná náà sí orí ilẹ̀ tó le koko, tó sì tẹ́jú.
- Do not operate the heater near water or in damp awọn ipo.
- Keep flammable materials (furniture, curtains, paper, clothing, etc.) at least 1 meter (3 feet) from the front, sides, and rear of the heater.
- Ma ṣe fi sii tabi gba awọn ohun ajeji laaye lati wọ inu afẹfẹ eyikeyi tabi ṣiṣi eefin nitori eyi le fa ina mọnamọna tabi ina, tabi ba ẹrọ igbona jẹ.
- This heater is equipped with an automatic sample-lori Idaabobo switch that will shut off the unit if it is accidentally knocked over.
- The heater also features overheat Idaabobo, which will automatically turn off the unit if it reaches an unsafe temperature.
- Rí i dájú pé okùn agbára náà kò bàjẹ́, ó sì so mọ́ ibi tí iná mànàmáná ti lè jáde.
- Ma ṣe lo ẹrọ igbona pẹlu ẹrọ pirogirama, aago, eto isakoṣo latọna jijin lọtọ, tabi eyikeyi ẹrọ miiran ti o yi ẹrọ alagbona si tan laifọwọyi, nitori eewu ina wa ti ẹrọ igbona ba ti bo tabi si ipo ti ko tọ.
- Ohun elo yii kii ṣe ipinnu fun lilo nipasẹ awọn eniyan (pẹlu awọn ọmọde) pẹlu idinku ti ara, imọlara tabi awọn agbara ọpọlọ, tabi aini iriri ati imọ, ayafi ti wọn ba ti fun wọn ni abojuto tabi itọnisọna nipa lilo ohun elo nipasẹ eniyan ti o ni iduro fun aabo wọn.
- Awọn ọmọde yẹ ki o wa ni abojuto lati rii daju pe wọn ko ṣere pẹlu ohun elo naa.
2. Awọn ilana iṣeto
Follow these steps to set up your AIRMATE HP20242R ceramic heater:
- Yọ Agbona kuro: Fi ìṣọ́ra yọ ohun èlò ìgbóná kúrò nínú àpótí rẹ̀. Pa àpótí náà mọ́ fún ìtọ́jú tàbí gbígbé lọ síbi tí ó yẹ lọ́jọ́ iwájú.
- Ibi: Place the heater on a stable, flat, and heat-resistant surface. Ensure there is at least 1 meter (3 feet) of clear space around the heater to allow for proper airflow and to prevent fire hazards. Do not place it directly under a power outlet.
- Asopọ agbara: Pulọọgi okun agbara sinu iṣan itanna ti ilẹ. Rii daju voltage of your power supply matches the rating label on the heater.
Image: The AIRMATE HP20242R heater, highlighting its compact dimensions (62.3cm height, 24.4cm base), integrated carry handle, and included remote control for convenient operation.
3. Awọn ilana Iṣiṣẹ
Your AIRMATE HP20242R heater offers various settings for optimal comfort. You can operate the heater using the control panel on the unit or the included remote control.
3.1 Agbara Tan / Pa
- Tẹ awọn Bọtini agbara on the control panel or remote to turn the heater on or off.
3.2 otutu Iṣakoso
The heater allows you to set your desired room temperature between 18°C and 35°C.
- Lo awọn Temperature Up (+) ati Temperature Down (-) buttons to adjust the target temperature.
- Ẹ̀rọ ìgbóná náà yóò ṣe àtúnṣe ìgbóná rẹ̀ láìfọwọ́sí láti mú kí ìwọ̀n otútù tí a ṣètò dúró.

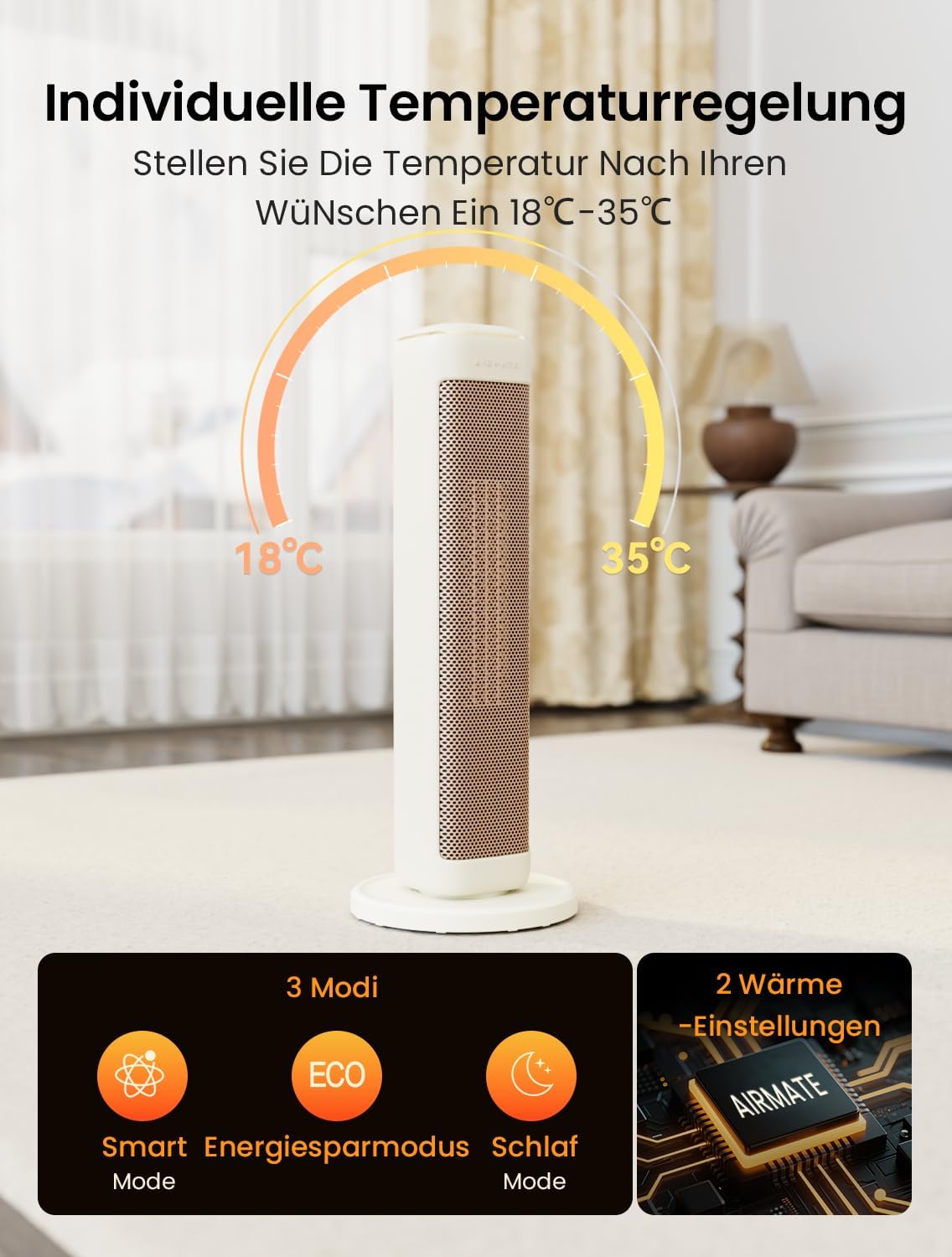

Image: The heater's display indicating the adjustable temperature range from 18°C to 35°C, along with icons for Smart Mode, Energy Saving Mode (ECO), and Sleep Mode, and two heat settings.
3.3 Awọn ọna ṣiṣe
Select from three distinct operating modes:
- Ipo Smart: Automatically adjusts heating power based on the ambient temperature to reach and maintain the set temperature efficiently.
- Energy Saving Mode (ECO): Optimizes power consumption while providing comfortable warmth.
- Ipo orun: Operates at a lower noise level and maintains a gentle warmth, ideal for use during sleep.
3.4 Awọn Eto igbona
The heater features two heat settings to suit your preference and room size.
- Tẹ awọn Bọtini ipo to cycle through the available heat settings.
3.5 Oscillation Išė
Activate the oscillation function for wider heat distribution across the room.
- Tẹ awọn Bọtini oscillation to start or stop the 80° oscillation.
- This feature helps to spread warmth evenly, ensuring a comfortable environment.
Image: The AIRMATE HP20242R heater in a room, illustrating its 80-degree oscillation capability for broad heat distribution, effectively warming a wider area.
3.6 Aago Išė
Set the heater to operate for a specific duration using the 24-hour timer.
- Tẹ awọn Bọtini aago to set the desired operating time. Each press typically increases the time by one hour.
- The heater will automatically turn off once the set time has elapsed.
4. Itọju
Fífọmọ́ déédé àti ìpamọ́ tó péye yóò jẹ́ kí ẹ̀rọ ìgbóná rẹ pẹ́ títí, yóò sì ṣiṣẹ́ dáadáa.
4.1 Ninu
- Ṣaaju ki o to sọ di mimọ: Máa yọ ẹ̀rọ ìgbóná kúrò nínú ẹ̀rọ ìgbóná náà kí o sì jẹ́ kí ó tutù pátápátá kí o tó sọ ọ́ di mímọ́.
- Ode Ninu: Mu ese ita ita ti ẹrọ igbona pẹlu asọ, damp cloth. Do not use abrasive cleaners, waxes, or polishes as these may damage the finish.
- Wiwọle/Olugbafẹfẹ: Use a vacuum cleaner with a brush attachment to gently remove dust and lint from the air inlet and outlet grilles. Ensure these areas are clear of obstructions for optimal performance.
- Maṣe Fi omi mọlẹ: Má ṣe fi ohun èlò ìgbóná náà sínú omi tàbí omi mìíràn.
4.2 Ibi ipamọ
- If storing the heater for an extended period, clean it thoroughly as described above.
- Store the heater in its original packaging in a cool, dry place, away from direct sunlight and moisture.
- Má ṣe gbé àwọn nǹkan tó wúwo sí orí ẹ̀rọ ìgbóná nígbà tí o bá ń kó wọn pamọ́.
5. Laasigbotitusita
If you encounter issues with your AIRMATE HP20242R heater, please refer to the following common problems and solutions:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Alagbona ko ni tan-an. | Ko si ipese agbara. Tip-lori yipada ṣiṣẹ. Idaabobo igbona ti mu ṣiṣẹ. |
Ensure the power cord is securely plugged in and the outlet is functional. Place the heater upright on a flat surface. Unplug the heater, let it cool for 30 minutes, then plug it back in. Clear any obstructions around the air inlets/outlets. |
| Heater is on but no heat is produced. | Low heat setting selected. Ambient temperature is higher than set temperature. |
Mu eto igbona pọ si. Adjust the target temperature to a higher value than the current room temperature. |
| Ariwo dani nigbati isẹ. | Eruku tabi idoti ninu afẹfẹ. Heater not on a stable surface. |
Unplug and clean the air inlets/outlets. If noise persists, contact customer support. Rii daju pe ẹrọ igbona wa lori alapin, dada iduroṣinṣin. |
If the problem persists after trying these solutions, please contact AIRMATE customer support.
6. Awọn alaye ọja
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Awoṣe | HP20242R |
| Brand | ỌFẸ |
| Iru | Seramiki ti ngbona |
| Ijade agbara | 2000W |
| Iwọn (D x W x H) | 18D x 18W x 62H sẹntimita |
| Iwọn otutu | 18°C - 35°C |
| Igun Oscillation | 80° |
| Ariwo Ipele | Approximately 32dB (in Sleep Mode) |
| Aabo Awọn ẹya ara ẹrọ | Tip-over protection, Overheat protection, V-0 flame-retardant material, Child lock |
| Awọn batiri ti a beere | Rara (fun ẹyọ akọkọ) |
Image: The 2000W PTC fast heating element of the AIRMATE HP20242R, illustrating its quiet operation at 32dB and efficient heat output, providing 200% larger heating volume.
Image: A visual representation of the AIRMATE HP20242R's comprehensive safety features, including child lock, V-0 flame-retardant material, overheat protection, tip-over protection, and an enhanced safety plug.
7. Atilẹyin ọja ati Onibara Support
For warranty information or if you require assistance with your AIRMATE HP20242R heater, please refer to the warranty card included with your purchase or contact AIRMATE customer support.
Please have your model number (HP20242R) and purchase date ready when contacting support.
