Ọrọ Iṣaaju
The Nivian Smart WiFi Door Alarm (Model NVS-DOORALARM-W) is a wireless magnetic sensor designed to enhance the security of your home or office. It provides real-time notifications to your mobile device, features a powerful 100 dB siren, and offers flexible control options including a manual disarm button. This manual provides detailed instructions for installation, operation, maintenance, and troubleshooting to ensure optimal performance of your device.
Alaye Aabo
- Ka gbogbo awọn ilana ni pẹkipẹki ṣaaju lilo.
- Jeki ẹrọ naa kuro ni omi ati ọriniinitutu giga.
- Do not attempt to disassemble or repair the device yourself. Contact support if needed.
- Ensure the device is installed within the specified operating temperature range (0°C to 40°C).
- Use only recommended power sources or batteries if applicable.
Package Awọn akoonu
Jọwọ ṣayẹwo pe gbogbo awọn ohun kan wa ninu apo rẹ:
- Nivian Smart WiFi Door Alarm (Main Unit and Magnetic Sensor)
- Double-sided adhesive tape for installation
- Afowoyi Olumulo (iwe-ipamọ yii)
Ọja Pariview
The Nivian Smart WiFi Door Alarm consists of two main parts: the main sensor unit and a smaller magnetic contact. When these two parts are separated (e.g., when a door or window opens), the alarm is triggered if armed.

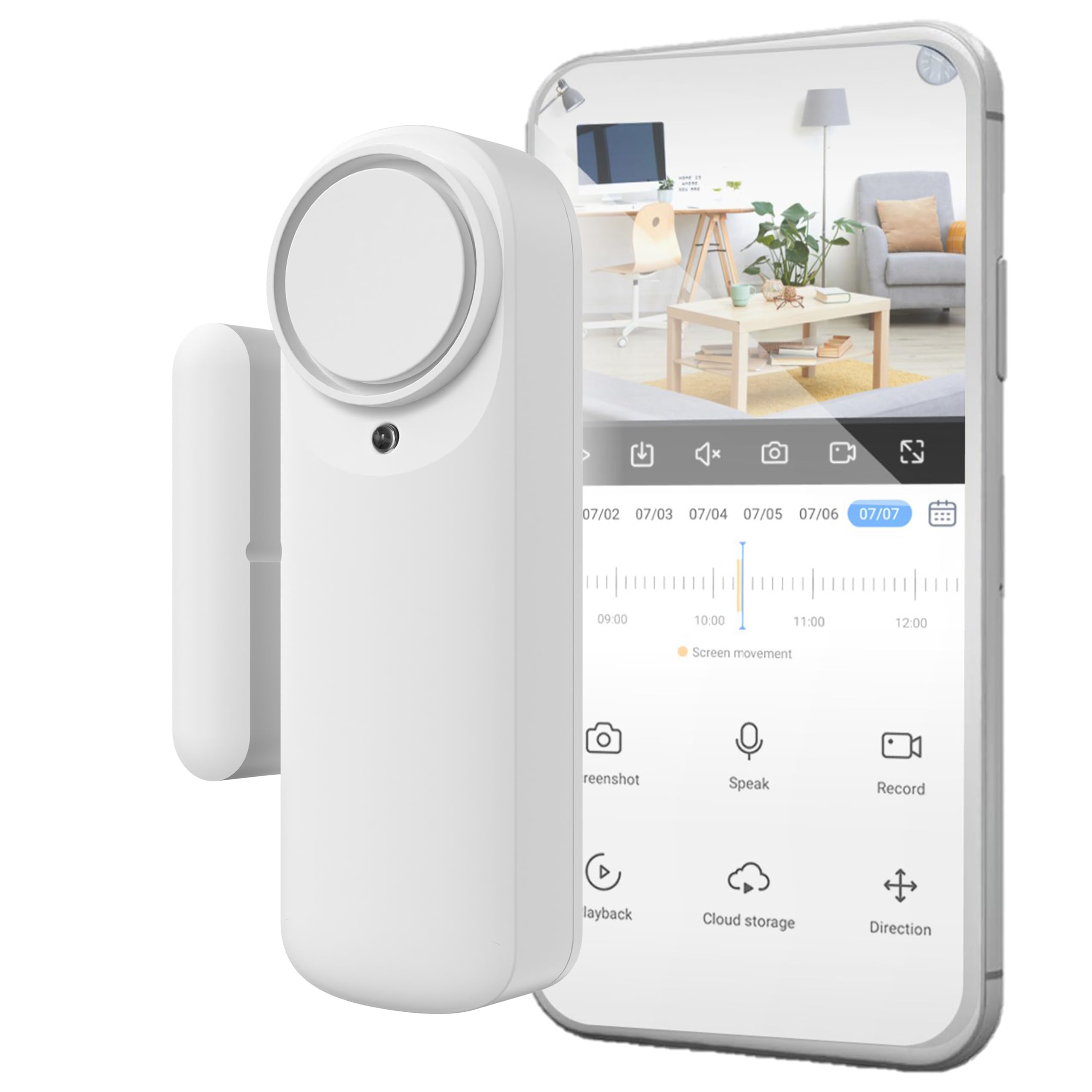

Aworan: Pariview of the Nivian Smart WiFi Door Alarm, highlighting its WiFi connectivity, battery-powered wireless design, app/manual disarm options, powerful siren, and compatibility with Amazon Alexa, Google Assistant, and Tuya Smart Home.
Awọn ẹya pataki:
- Asopọmọra WiFi: Connects to your home 2.4 GHz WiFi network for stable communication.
- Apẹrẹ Alailowaya: Battery-powered for flexible placement without cables.
- Sensọ oofa: Detects opening and closing of doors or windows.
- 100 dB Siren: Integrated siren activates upon intrusion when armed.
- Ohun elo Alagbeka Iṣakoso: Arm, disarm, and receive real-time notifications via a dedicated app.
- Bọtini Ipilẹṣẹ Afọwọṣe: Provides an alternative disarm method without the app.
- Ipo Ifihan LED: For quick visual control of the device status.
Ṣeto
1. Fifi sori ti ara
The Nivian Smart WiFi Door Alarm is designed for quick and easy installation using double-sided adhesive tape. No tools are required.
- Yan Ibi kan: Select a clean, dry surface on your door or window frame. Ensure the main unit and magnetic sensor can be mounted close to each other, typically within 1-2 cm when the door/window is closed.
- Mọ Ilẹ-ilẹ: Wipe the installation area with a clean cloth to remove dust or grease.
- So Teepu Alamora: Apply the provided double-sided adhesive tape to the back of both the main sensor unit and the magnetic sensor.
- Fi Ẹrọ Akọkọ sori ẹrọ: Affix the larger main sensor unit to the door or window frame.
- Mount the Magnetic Sensor: Affix the smaller magnetic sensor to the moving part of the door or window, aligning it with the main unit. Ensure the alignment marks on both parts are facing each other and they are within 1-2 cm when the door/window is closed.
Aworan: A person demonstrating the easy installation of the Nivian Smart WiFi Door Alarm on a door frame, highlighting its wireless and tool-free setup.
Aworan: A diagram illustrating the dimensions of the Nivian Smart WiFi Door Alarm and its recommended placement on a door, showing the main unit and magnetic sensor alignment.
2. Gbigbasilẹ Ohun elo ati Sisopọ Ẹrọ
To control your Nivian Smart WiFi Door Alarm, you need to download the compatible mobile application (e.g., Tuya Smart or Smart Life app).
- Ṣe igbasilẹ ohun elo naa: Wa fun "Tuya Smart" or "Smart Life" in your smartphone's app store (Google Play Store for Android or Apple App Store for iOS) and download it.
- Forukọsilẹ/Wọle: Ṣii app naa ki o forukọsilẹ fun akọọlẹ tuntun tabi wọle ti o ba ti ni ọkan tẹlẹ.
- Fi ẹrọ kun:
- Rii daju pe foonuiyara rẹ ti sopọ si nẹtiwọki WiFi 2.4 GHz kan.
- Open the app and tap the "+" icon (usually in the top right corner) to add a device.
- Select "Security & Video Surveillance" or "Sensor" category, then choose "Door/Window Sensor (Wi-Fi)".
- Follow the on-screen instructions to put the device into pairing mode (this usually involves pressing and holding a button on the main unit until an indicator light flashes).
- Tẹ ọrọ igbaniwọle nẹtiwọọki WiFi rẹ sii nigbati o ba beere.
- Wait for the app to detect and connect to your device. Once connected, you can rename the device for easy identification.
Awọn ilana Iṣiṣẹ
Arming and Disarming the Alarm
You can arm or disarm the alarm using the mobile application or the manual button on the device.
- Nipasẹ Ohun elo Alagbeka:
Open the Nivian Smart WiFi Door Alarm device page in the app. You will see options to "Arm" or "Disarm" the alarm. Tap the desired option. You can also set entry and exit delays within the app settings.

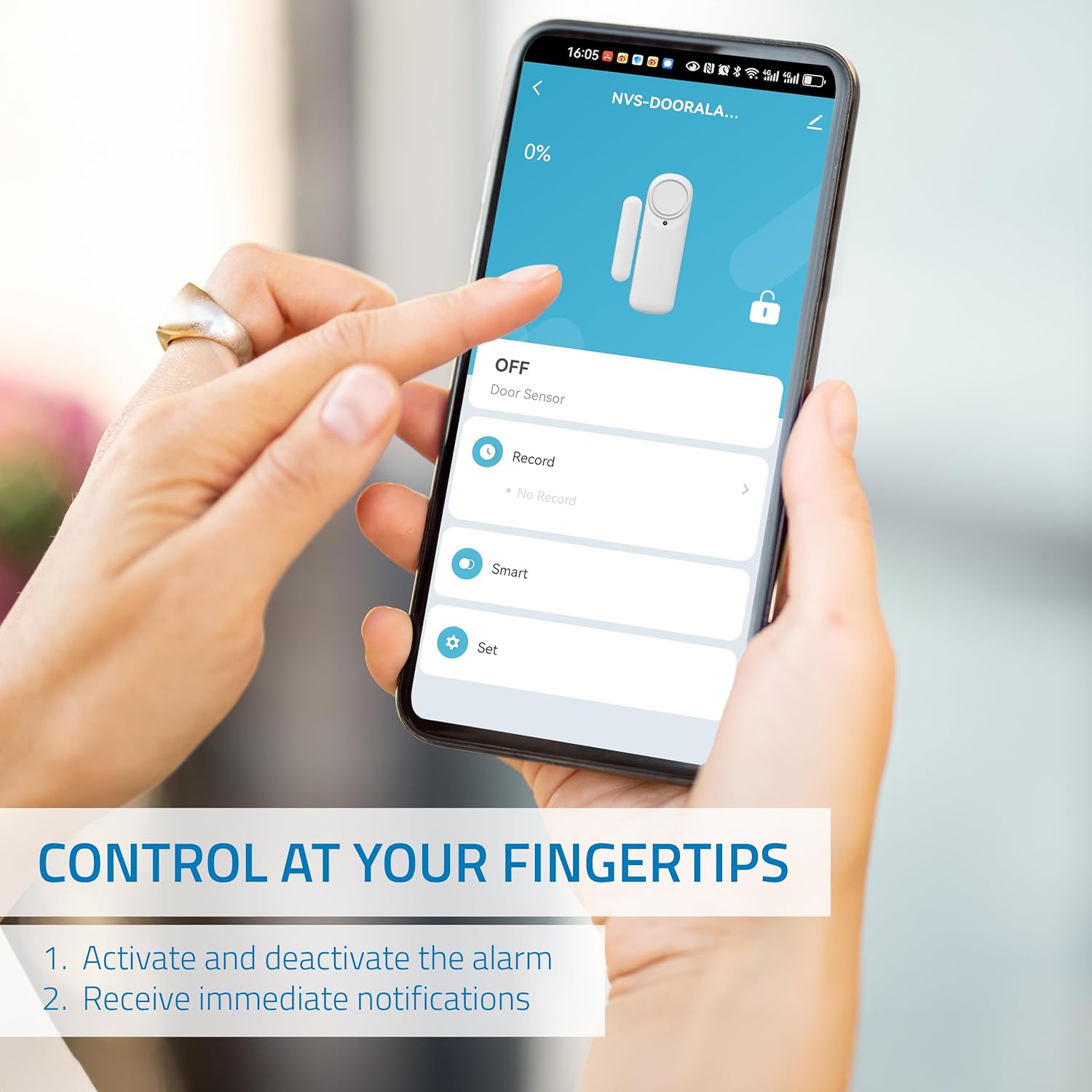

Aworan: A smartphone screen displaying the control interface for the Nivian Smart WiFi Door Alarm, showing options to activate/deactivate the alarm and receive notifications.
- Nipasẹ Bọtini Afọwọṣe:
The main sensor unit features a manual button. Press this button to arm or disarm the alarm. Refer to the device's LED indicator for status confirmation (e.g., solid light for armed, flashing for disarmed).
Aworan: An elderly man demonstrating the use of the manual disarm button on the Nivian Smart WiFi Door Alarm, highlighting its ease of use for all users.
Gbigba Awọn iwifunni
When the alarm is armed and the door/window is opened, you will receive instant notifications on your mobile device. Ensure app notifications are enabled in your phone's settings.
- Intrusion Alerts: Immediate alerts when the sensor is triggered.
- Door Open/Close Status: Real-time updates on the door's status.
- Awọn Itaniji Batiri Kekere: Notifications when the device's battery is low.
Siren Functionality
The integrated 100 dB siren will activate automatically if an intrusion is detected while the alarm is armed. This serves as a deterrent and alerts occupants or neighbors.
Aworan: An illustration depicting the Nivian Smart WiFi Door Alarm's powerful 100 dB siren activating to deter an intruder attempting to enter through a door.
Wiwọle pinpin
You can share control of the alarm with family members or employees through the mobile application. Look for the "Share Device" or "Device Sharing" option in the app settings.
Itoju
Batiri Rirọpo
The Nivian Smart WiFi Door Alarm is battery-powered. When you receive a low battery notification, it's time to replace the batteries. The device uses standard batteries (specific type not provided in product data, typically AAA or CR2). Refer to the device's battery compartment for the exact type.
- Carefully open the battery compartment on the main sensor unit.
- Yọ awọn batiri atijọ kuro.
- Fi awọn batiri titun sii, ni idaniloju polarity ti o pe (+/-).
- Pa yara batiri naa ni aabo.
Ninu
To maintain the device's appearance and functionality, clean it periodically.
- Lo asọ ti o rọ, ti o gbẹ lati nu ita ti ẹrọ naa.
- Do not use liquid cleaners, aerosols, or solvents, as these can damage the device.
Laasigbotitusita
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Device not connecting to WiFi / Lost connection | Incorrect WiFi password; Device too far from router; Router is 5 GHz only; Network interference. |
|
| Ko si awọn iwifunni ti o gba | App notifications disabled; Phone not connected to internet; Device not armed. |
|
| Siren ko ṣiṣẹ | Alarm not armed; Low battery; Device malfunction. |
|
| Awọn itaniji eke | Improper sensor alignment; Device movement; Environmental factors. |
|
Awọn pato
- Brand: NIVIAN
- Nọmba awoṣe: NVS-DOORALARM-W
- Imọ-ẹrọ sensọ: Sensọ oofa
- Asopọmọra: WiFi (2.4 GHz)
- Orisun Agbara: Battery Powered (Batteries not included, type to be confirmed on device)
- Ipele Ohun: 100 Decibels
- Iru fifi sori: Door Mount (Adhesive)
- Awọn iwọn Ọja (L x W x H): 1 x 1 x 5 cm; 70 grams (Main unit and sensor combined)
- Iwọn Iṣiṣẹ: 0°C si 40°C
- Ọriniinitutu ti nṣiṣẹ: <80%
- Awọn ẹrọ ibaramu: Smartphone, Tablet (via Tuya Smart / Smart Life App)
- Ọna Iṣakoso: Application, Manual Button
- Ilu isenbale: China
Alaye atilẹyin ọja
Nivian products are designed for reliability and performance. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included in your product packaging or visit the official Nivian website for detailed warranty terms and conditions. Keep your purchase receipt as proof of purchase.
Atilẹyin
For technical support, frequently asked questions, or additional resources, please visit the Nivian webojula tabi kan si wa onibara iṣẹ egbe.
- Awọn orisun Ayelujara:
- Nivian Home Instagàgbo (for tutorials & tips)
- Nivian YouTube Channel (for tutorials & tips)
- Iṣẹ onibara: Refer to your product packaging or the Nivian webaaye fun awọn alaye olubasọrọ.
Aworan: Nivian brand information, including links to Nivian Home Web for information, technical support, and warranty, along with QR codes for Instagram and YouTube tutorials and tips.
