Roadjoy J1207P High-Power 7000A Car Jump Starter & 150PSI Air Compressor User Manual

1. Ọja Ipariview

The Roadjoy J1207P is a versatile emergency device combining a high-power car jump starter with a 150PSI air compressor. It features a 20000mAh battery, 7000A peak current for starting vehicles up to 8L gasoline and 8L diesel engines, and a 74W fast charge capability. This unit also functions as a portable power bank and includes an LED light with multiple modes for various situations.

Awọn ẹya pataki:

• Olùbẹ̀rẹ̀ Fífò Agbára: 7000A peak current for 12V vehicles (up to 8L gas/8.0L diesel engines).
• Afẹ́fẹ́ tí a ti so pọ̀ mọ́ ara wọn: 150PSI with 4 preset tire pressure modes and auto-shutoff.
• Banki Agbara to gbe: 20000mAh capacity with USB 5V 3A and USB 5V/9V/12V Quick Charge outputs, and 2*18W Type-C input.
• Multi-mode LED Light: Includes flashlight, warning, strobe, and SOS modes.
• Aabo Abo oye: Features 10 safety functions including short circuit, over-temperature, over-charge, over-discharge, and reverse polarity protection.
• Ifihan LCD: Clear display for operational information and battery status.

2. Alaye Aabo

Please read all safety warnings and instructions before using this product. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

Awọn iṣọra Aabo Gbogbogbo:

• Maṣe fi ọja naa han si ojo tabi awọn ipo tutu.
• Ma ṣe ṣisẹ ọja naa ni awọn bugbamu bugbamu, gẹgẹbi niwaju awọn olomi flammable, gaasi, tabi eruku.
• Pa awọn ọmọde ati awọn aladuro kuro lakoko ti o nṣiṣẹ ọja naa.
• Store idle products out of the reach of children and do not allow persons unfamiliar with the product to operate it.
• Lo awọn ẹya ẹrọ nikan nipasẹ olupese.
• Do not use the product if it is damaged or modified.
• Do not disassemble the product. Refer servicing to qualified repair personnel.

Jump Starting Safety:

• Ensure the vehicle is in park (P) or neutral (N) and the parking brake is engaged.
• Wear eye protection and gloves when jump starting.
• So pupa (+) clamp to the positive (+) terminal of the vehicle battery and the black (-) clamp to the negative (-) terminal or a metal part of the vehicle chassis away from the battery.
• Maṣe fi ọwọ kan awọn pupa ati dudu clamps papọ.
• If the jump starter indicates a reverse polarity connection, disconnect immediately and reconnect correctly.
• Ma ṣe gbiyanju lati fo bẹrẹ batiri tio tutunini.

Air Compressor Safety:

• Do not over-inflate tires. Always check the recommended tire pressure for your vehicle.
• The inflation hose may become hot during prolonged use. Avoid direct skin contact.
• Allow the unit to cool down if it becomes excessively hot during operation.

3. Package Awọn akoonu

Daju pe gbogbo awọn nkan ti a ṣe akojọ rẹ si isalẹ wa ninu package rẹ:

• Roadjoy J1207P Jump Starter & Air Compressor Unit
• Smart Jumper Cables
• Afikun Iho
• Nozzle Adapters (for various inflatables)
• USB-C Ngba agbara Cable
• Ọran ipamọ
• Itọsọna olumulo

4. Aworan atọka ọja

Familiarize yourself with the different parts and controls of your Roadjoy J1207P unit.

1. Bọtini agbara
2. Bọtini afikun
3. Bọtini Ipo
4. Bọtini ẹyọkan
5. + Pressure Button
6. - Pressure Button
7. USB2 Ijade
8. USB1 Ijade
9. Iru-C Input
10. Iboju LCD
11. ECS Output (for jumper cables)
12. Inflation Hose Port
13. LED Panel Light

5. Eto

Gbigba agbara akọkọ:

Before first use, fully charge your Roadjoy J1207P unit. Connect the provided USB-C charging cable to the Type-C Input (9) on the unit and to a suitable USB power adapter (not included). The LCD screen (10) will display the charging status. A full charge ensures optimal performance and readiness for emergencies.

6. Awọn ilana Iṣiṣẹ

6.1. Fo Bibẹrẹ Ọkọ

1. Rí i dájú pé olùbẹ̀rẹ̀ náà ti gba agbára tó.
2. Connect the smart jumper cables to the ECS Output (11) on the jump starter.
3. So pupa (+) clamp to the positive (+) terminal of the vehicle's dead battery.
4. So dudu (-) clamp to the negative (-) terminal of the vehicle's dead battery or a solid, unpainted metal part of the engine block.
5. Check the indicator on the smart jumper cables. A solid green light indicates a safe connection. If a red light or alarm sounds, check connections for reverse polarity or other issues.
6. Start the vehicle's engine. If it doesn't start immediately, wait 30 seconds and try again. Do not crank for more than 3 seconds per attempt.
7. Once the vehicle starts, disconnect the black (-) clamp akọkọ, lẹhinna pupa (+) clamp, and finally remove the smart jumper cables from the jump starter.

6.2. Lilo Air Compressor

1. Screw the inflation hose onto the Inflation Hose Port (12) on the unit.
2. Attach the other end of the hose to the tire valve or use an appropriate nozzle adapter for other inflatables.
3. Press the Power Button (1) to turn on the unit. The LCD screen (10) will display the current pressure.
4. Press the Mode Button (3) to select the desired inflation mode (car, motorcycle, bicycle, ball, or custom).
5. Use the + Pressure Button (5) and - Pressure Button (6) to set the target pressure.
6. Press the Inflate Button (2) to start inflation. The compressor will automatically stop when the target pressure is reached.
7. Disconnect the hose from the tire valve and the unit.

6.3. Lilo bi Bank Power

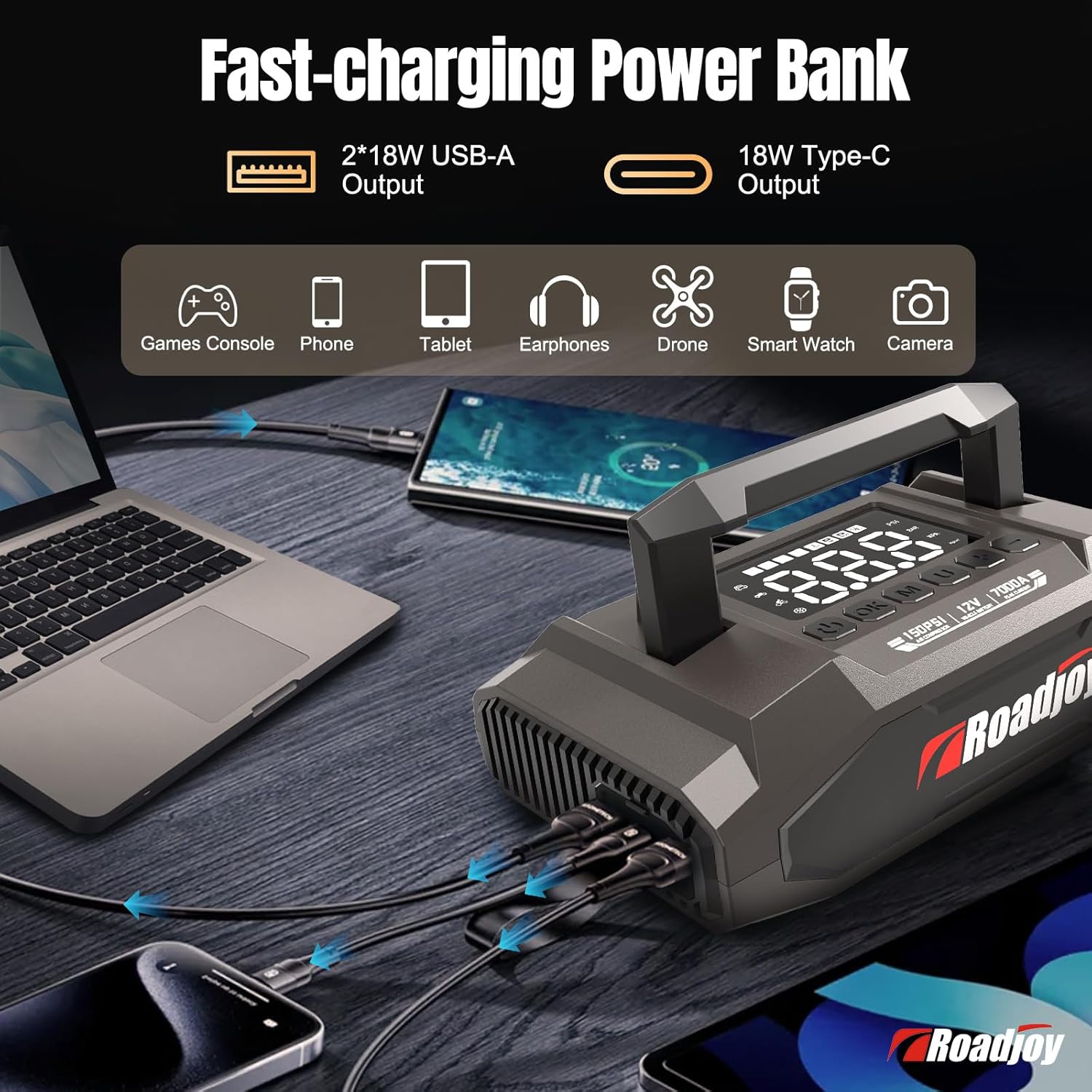

The Roadjoy J1207P can charge your electronic devices. Connect your device's charging cable to either the USB1 Output (8) or USB2 Output (7) on the unit. The unit will automatically begin charging your device.

6.4. Lilo Imọlẹ LED

The integrated LED Panel Light (13) offers multiple modes for various situations:

• Ipò ògùṣọ̀: Press and hold the Power Button (1) to turn on the flashlight.
• Warning/Strobe/SOS Modes: Briefly press the Power Button (1) repeatedly to cycle through warning, strobe, and SOS modes.
• Press and hold the Power Button (1) again to turn off the light.

7. Itọju

Gbigba agbara:

To maintain battery health, fully charge the unit every 3-6 months, even if not in use. This prevents deep discharge and prolongs battery lifespan.

Ninu:

Wipe the unit with a dry, soft cloth. Do not use harsh chemicals or abrasive materials. Keep the ventilation ports clear of dust and debris.

Ibi ipamọ:

Store the unit in a cool, dry place, away from direct sunlight and extreme temperatures. Keep it in its protective carrying case when not in use to prevent damage.

8. Laasigbotitusita

9. Awọn pato

10. Atilẹyin ọja & Atilẹyin

Roadjoy provides a 2-year technical support for this product. For any questions, issues, or technical assistance, please contact our customer support team. Please have your model number (J1207P) and purchase information ready when contacting support.

Contact information can typically be found on the product packaging or the official Roadjoy webojula.
