CREWORKS MLMN210EU 750W Mini Metal Lathe Instruction Manual

1. Ifihan

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your CREWORKS MLMN210EU 750W Mini Metal Lathe. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent injury or damage.

1.1 Ọja Loriview

The CREWORKS MLMN210EU is a compact yet powerful mini metal lathe designed for small to medium-scale precision work on various materials, including metal and wood. It features a 750W motor, a 3-jaw chuck, a digital display for speed monitoring, and a 4-way tool post, offering versatility for turning, cutting, drilling, and threading operations. With a 210 mm (8.3 inch) swing over bed and 400 mm (15.7 inch) distance between centers, it accommodates a range of projects.

Aworan 1.1: The CREWORKS MLMN210EU Mini Metal Lathe shown with its various included accessories, such as wrenches, screwdrivers, chuck keys, and gear sets.

1.2 Abo ​​Awọn ilana

Always prioritize safety when operating machinery. Failure to follow safety guidelines can result in serious injury or damage to the equipment.

• Ka gbogbo ìwé ìtọ́ni náà kí o sì lóye rẹ̀ kí o tó ṣiṣẹ́.
• Wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and suitable clothing. Avoid loose clothing, jewelry, and long hair.
• Rii daju pe agbegbe iṣẹ jẹ mimọ, tan-an daradara, ati laisi awọn idiwọ.
• Never operate the lathe under the influence of drugs, alcohol, or medication that impairs judgment.
• Ge asopọ agbara nigbagbogbo ṣaaju ṣiṣe itọju, awọn atunṣe, tabi awọn ẹya ẹrọ iyipada.
• Securely fasten the workpiece in the chuck or collet.
• Maṣe fi ẹrọ naa silẹ laini abojuto lakoko ti o nṣiṣẹ.
• Pa ọwọ ati ika mọ kuro ninu awọn ẹya gbigbe.
• Use the correct tools and attachments for the task.
• Ensure proper ventilation to dissipate fumes and dust.

2. Package Awọn akoonu

Nígbà tí o bá ń tú àwọn ohun èlò náà, rí i dájú pé gbogbo àwọn ohun èlò náà wà níbẹ̀ tí wọn kò sì bàjẹ́. Tí àwọn nǹkan kan bá sọnù tàbí tí wọ́n bá bàjẹ́, kàn sí olùpèsè rẹ lẹ́sẹ̀kẹsẹ̀.

• CREWORKS MLMN210EU Mini Metal Lathe
• 3-Jaw Chuck (125mm)
• Ifiweranṣẹ Irinṣẹ
• Set of Change Gears
• Wrenches and Hex Keys
• Screwdrivers
• Le Epo
• Chuck Key
• Ilana itọnisọna
• Toolbox (for accessories)

Aworan 2.1: The main unit of the lathe along with the various tools and components included in the package, such as the chuck, gears, and hand tools.

3. Eto ati fifi sori

3.1 Ṣiṣii ati Gbe

1. Fi iṣọra yọ lathe ati gbogbo awọn ẹya ẹrọ kuro ninu apoti.
2. Clean any protective grease or oil from the machine surfaces using a suitable degreaser.
3. Place the lathe on a sturdy, level workbench capable of supporting its weight (approximately 61 kg).
4. Ensure there is adequate space around the machine for safe operation and maintenance.

3.2 Itanna Asopọ

• Daju pe awọn ipese agbara voltage matches the requirements specified on the machine's nameplate (typically 220-240V AC).
• So okun agbara pọ mọ itanna ti ilẹ.
• Do not use extension cords unless absolutely necessary, and ensure they are rated for the machine's power requirements.

3.3 Awọn iṣayẹwo akọkọ

• Ṣayẹwo gbogbo fasteners fun wiwọ.
• Lubricate all moving parts as indicated in the maintenance section.
• Ensure the chuck is securely mounted.

4. Awọn ilana Iṣiṣẹ

This section details the controls and basic operations of the CREWORKS MLMN210EU mini metal lathe.

4.1 Àwọn Ìṣàkóso àti Àwọn Ẹ̀yà

• Ifihan Digital: Shows the current spindle speed (RPM).
• Kokoro Iṣakoso Iyara: Adjusts the spindle speed continuously from 0 to 2500 RPM.
• Bọtini Duro Pajawiri: Immediately cuts power to the machine.
• ẹyọ: Holds the workpiece.
• Tool Post: Holds the cutting tool.
• Carriage Handwheel: Moves the carriage along the bed.
• Cross Slide Handwheel: Moves the cross slide perpendicular to the bed.
• Compound Rest Handwheel: Moves the compound rest at an angle.
• Kẹkẹ Ọwọ Tailstock: Advances the tailstock quill.

Aworan 4.1: Sun mo tipetipe view of the digital display showing spindle speed and the speed control knob, allowing for precise adjustments up to 2500 RPM.

Aworan 4.2: Illustration of the various handwheels for controlling the movement of the bed carriage, cross slide, compound rest, and tailstock feed, along with the digital speed display.

4.2 Iṣẹ-ṣiṣe Clamping (3-Jaw Chuck)

The 125mm 3-jaw chuck is designed to securely hold cylindrical and hexagonal workpieces.

1. Insert the chuck key into the chuck.
2. Rotate the chuck key to open the jaws sufficiently to insert the workpiece.
3. Insert the workpiece and tighten the jaws firmly using the chuck key. Ensure the workpiece is centered and held securely.
4. Always remove the chuck key before starting the lathe.

Aworan 4.3: Detailed diagram illustrating the internal and external jaw configurations of the 125mm 3-jaw chuck, with clamping ranges for various workpiece sizes.

4.3 Ipilẹ Mosi

The CREWORKS MLMN210EU is capable of various machining operations:

• Yipada: Atehinwa awọn iwọn ila opin ti a workpiece.
• Liluho: Creating holes in the workpiece using the tailstock.
• Titẹ: Cutting internal or external threads. This requires setting up the appropriate change gears according to the thread cutting table (refer to the machine's label).
• Dojuko: Creating a flat surface on the end of a workpiece.
• Parting: Cutting off a section of the workpiece.

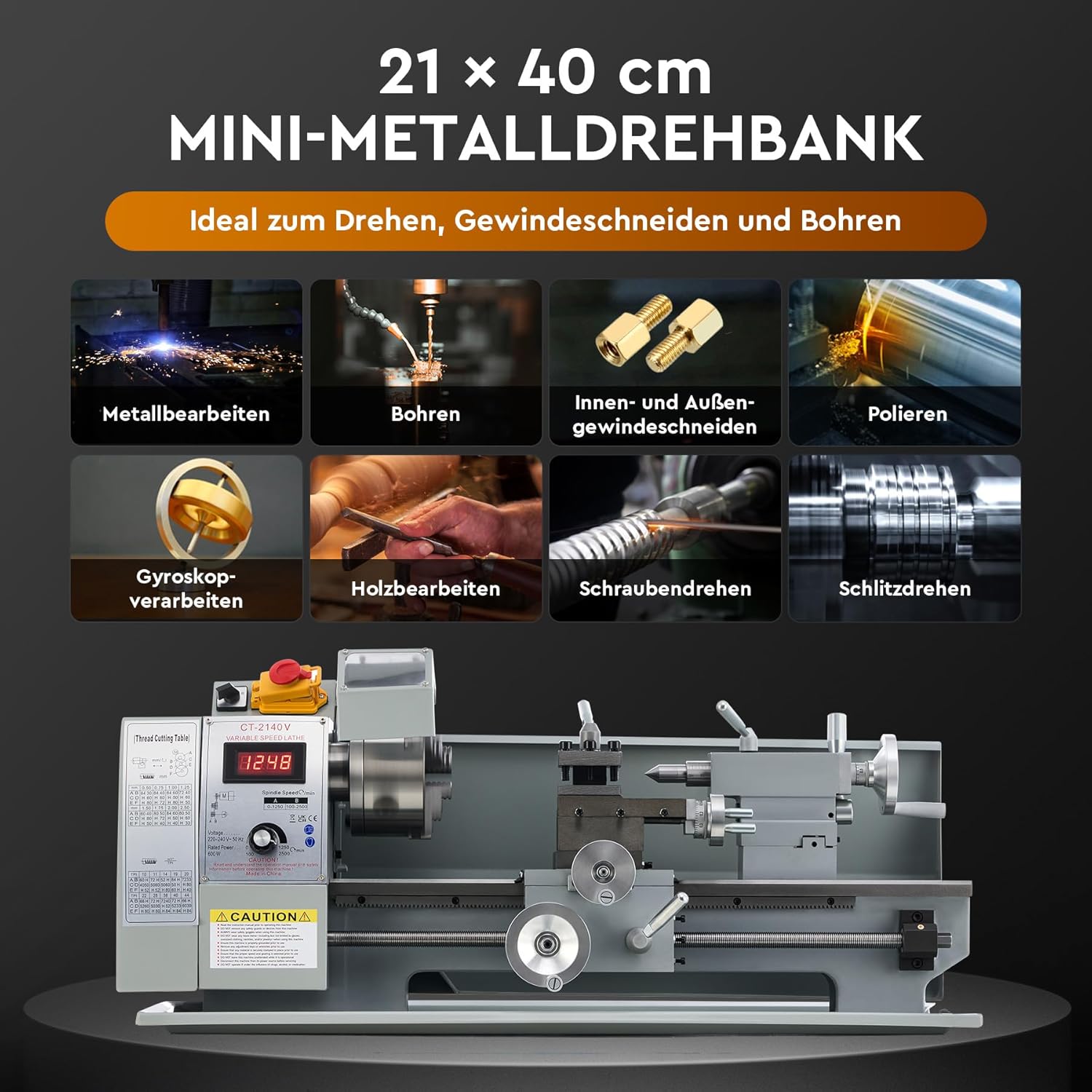

Aworan 4.4: Visual representation of the diverse applications possible with the mini metal lathe, including metal turning, drilling, threading, polishing, and woodworking.

5. Itọju

Regular maintenance is crucial for the longevity and optimal performance of your lathe.

5.1 Ninu

• After each use, clean chips and debris from the machine bed, carriage, and chuck. Use a brush or shop vacuum; never use compressed air as it can embed chips into moving parts.
• Pa gbogbo awọn oju ilẹ pẹlu asọ mimọ.

5.2 Lubrication

• Regularly lubricate the lead screw, guide rails, and other moving parts with appropriate machine oil.
• Check the gearbox oil level periodically and replenish if necessary.

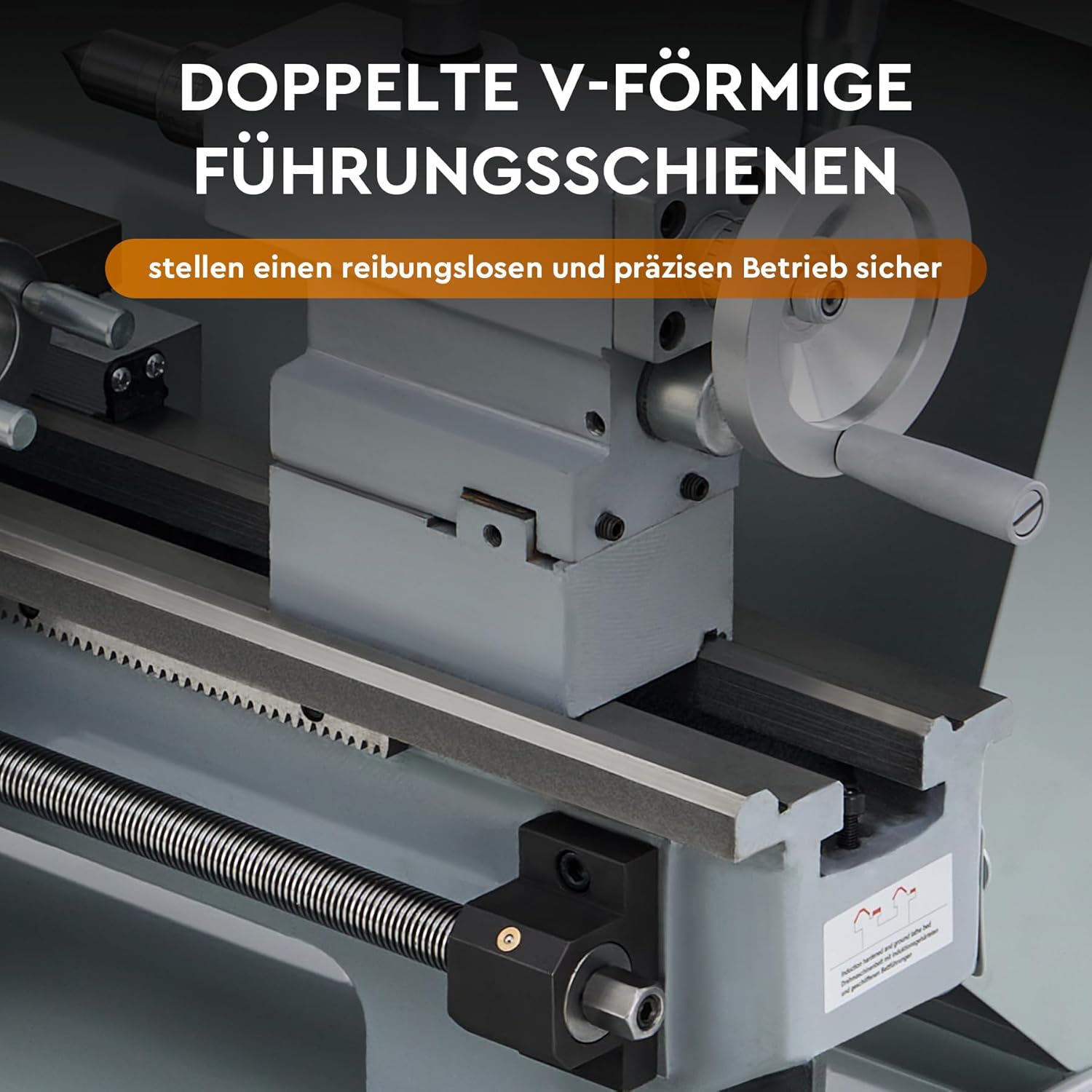

Aworan 5.1: The double V-shaped guide rails, which require regular cleaning and lubrication for smooth and precise operation.

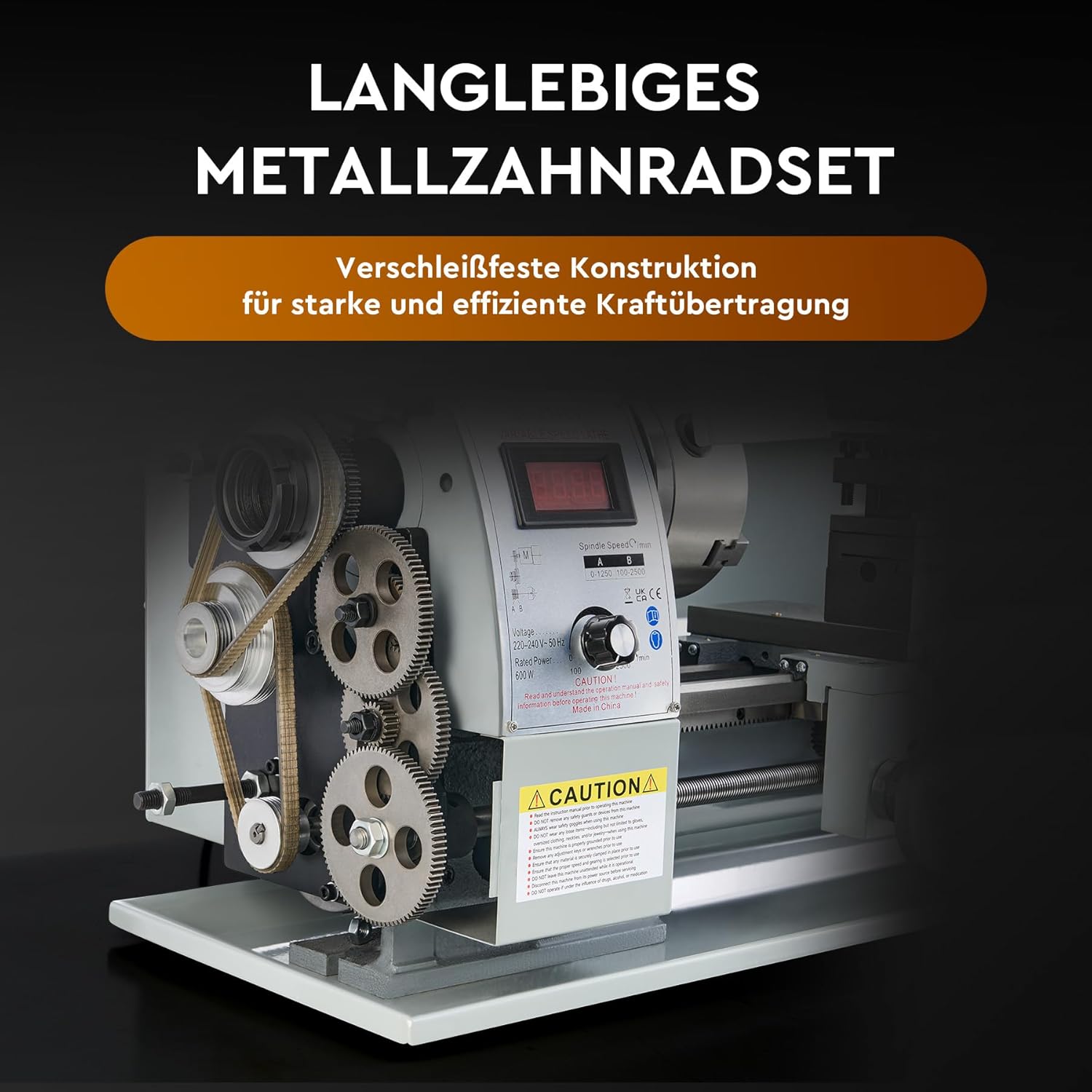

Aworan 5.2: The robust metal gear set, designed for strong and efficient power transmission, which should be inspected periodically for wear and lubricated.

5.3 ayewo

• Inspect the drive belts for wear or damage. Replace if necessary.
• Check the condition of the cutting tools. Sharpen or replace dull tools.
• Rii daju pe gbogbo awọn asopọ itanna wa ni aabo ati ofe lọwọ ibajẹ.

6. Laasigbotitusita

This section addresses common issues you might encounter with your lathe.

For issues not listed here or if solutions do not resolve the problem, contact CREWORKS customer support or a qualified technician.

7. Awọn pato

Technical specifications for the CREWORKS MLMN210EU Mini Metal Lathe.

Aworan 7.1: A visual summary of the lathe's technical data and key dimensions, including power, swing, and spindle speed.

8. Atilẹyin ọja ati Support

For warranty information, technical support, or to order replacement parts, please contact CREWORKS customer service. Keep your purchase receipt and product model number (MLMN210EU) handy when contacting support.

Refer to the official CREWORKS website or your purchase documentation for the most up-to-date warranty terms and contact details.
