Kismile Drip Coffee Maker

Kismile 8 Cup Drip Coffee Maker Machine Instruction Manual

Model: Drip Coffee Maker

Àmì ìtajà: Kismile

1. Ifihan

Thank you for choosing the Kismile 8 Cup Drip Coffee Maker Machine. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new coffee maker. Please read it thoroughly before first use and keep it for future reference.

2. Alaye Aabo pataki

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and/or injury to persons. Read all instructions.

  • Maṣe fi ọwọ kan awọn aaye ti o gbona. Lo awọn ọwọ tabi awọn koko.
  • Lati daabobo lodi si ina, mọnamọna, ati ipalara si awọn eniyan, maṣe fi okun, plugs, tabi ohun elo bọ inu omi tabi omi miiran.
  • Abojuto sunmọ jẹ pataki nigbati eyikeyi ohun elo ba lo nipasẹ tabi sunmọ awọn ọmọde.
  • Yọọ kuro lati inu iṣan nigbati ko si ni lilo ati ṣaaju ṣiṣe mimọ. Gba laaye lati tutu ṣaaju fifi sii tabi mu awọn ẹya kuro, ati ṣaaju ki o to nu ohun elo naa.
  • Ma ṣe ṣiṣẹ ohun elo eyikeyi pẹlu okun ti o bajẹ tabi pulọọgi tabi lẹhin aiṣe ohun elo, tabi ti bajẹ ni eyikeyi ọna.
  • Lilo awọn asomọ ẹya ẹrọ ti a ko ṣeduro nipasẹ olupese ohun elo le ja si ina, mọnamọna, tabi ipalara si awọn eniyan.
  • Maṣe lo ni ita.
  • Ma ṣe jẹ ki okun duro lori eti tabili tabi counter, tabi fi ọwọ kan awọn aaye ti o gbona.
  • Ma ṣe gbe sori tabi sunmọ gaasi ti o gbona tabi ina ina, tabi ni adiro ti o gbona.
  • Nigbagbogbo so plug to ohun elo akọkọ, ki o si pulọọgi okun sinu ogiri iṣan. Lati ge asopọ, tan eyikeyi iṣakoso si 'pa', lẹhinna yọ plug kuro ni iṣan ogiri.
  • Ma ṣe lo ohun elo fun miiran ju lilo ti a pinnu lọ.

3. Package Awọn akoonu

Daju pe gbogbo awọn ohun kan wa ninu package rẹ:

  • Drip kofi Ẹlẹda
  • ẹlẹnu
  • Dimu Ajọ
  • Shower Head
  • Sibi
  • Apapo Tube

4. Ọja Ipariview ati Awọn ẹya ara ẹrọ

The Kismile 8 Cup Drip Coffee Maker Machine is designed for optimal coffee brewing with advanced features for both hot and cold brew enthusiasts.

Awọn ẹya pataki:

  • Fast Heat & Precise Brewing: Starts brewing in 3 seconds with precise 196–205°F temperature control. Brews 8 cups in 6 minutes. Keeps coffee warm at 176–185°F for 40 minutes.
  • Premium & Safe Design: Full aluminum alloy body, BPA-free and PFAS-free construction ensures pure coffee flavor.
  • Professional Cold Brew: Utilizes a 20-minute deep infusion cold brew process for smoother, richer flavor.
  • Removable Tank & Easy Cleaning: 1250ml detachable water tank (up to 8 cups). All removable parts (carafe, filter holder, shower head) are easy to detach and rinse. Magnetic anti-drip design prevents spills.
  • Iṣakoso Sisan Atunṣe: Manual lever to control water flow for pre-infusion and multi-stage brewing, allowing customization of flavor.
  • Large Capacity Filter Basket: 70g max coffee basket, compatible with metal filters and paper filters (V-shape or Basket Filter).

Visual Guide to Features:

Easy Fill Removable Water Tank
Easy Fill Removable Water Tank: The transparent water tank can be easily removed for filling and cleaning, holding enough water for up to 8 cups of coffee.

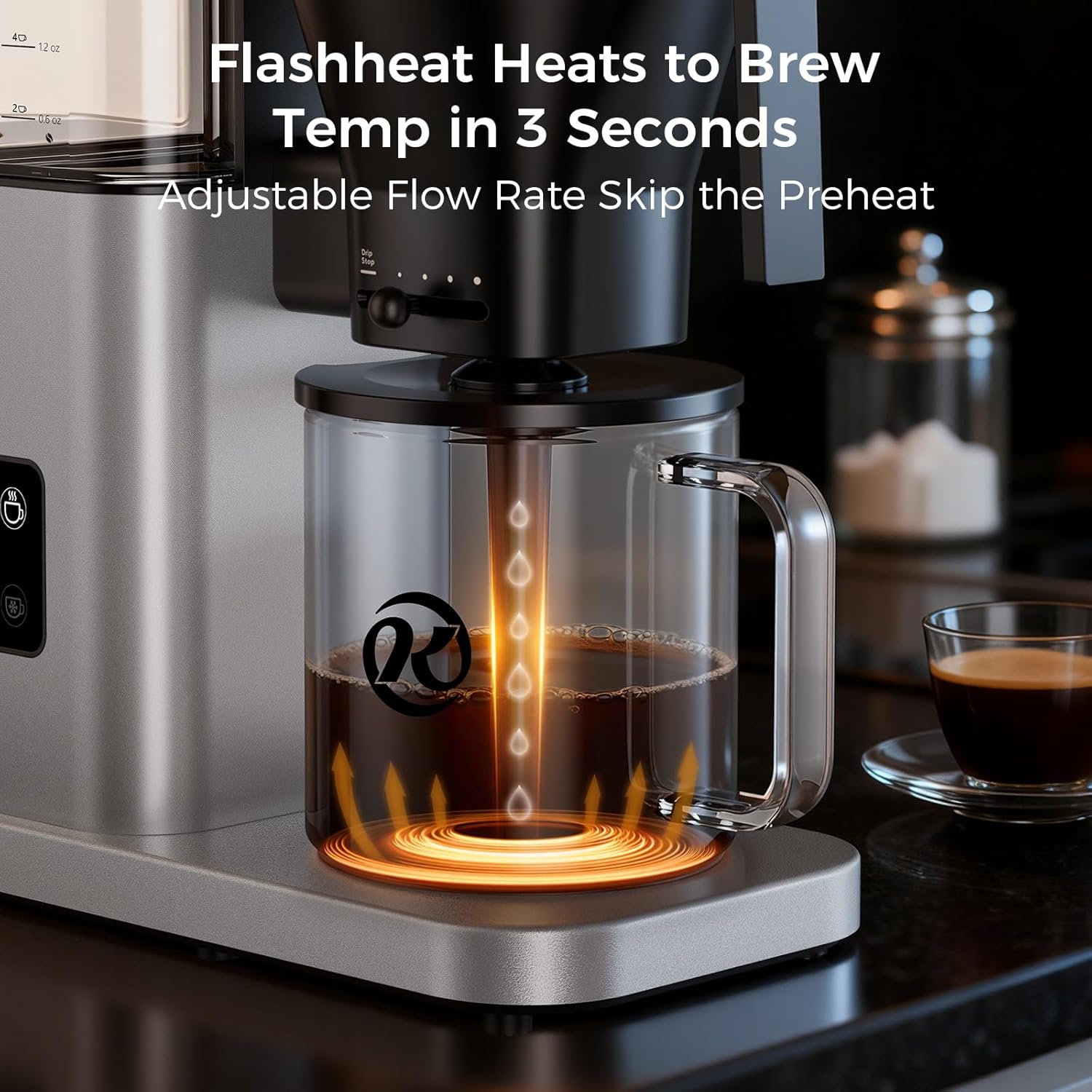

Flashheat Heats to Brew Temp in 3 Seconds
Flashheat Heats to Brew Temp in 3 Seconds: Illustrates the rapid heating system, allowing for quick brewing initiation.

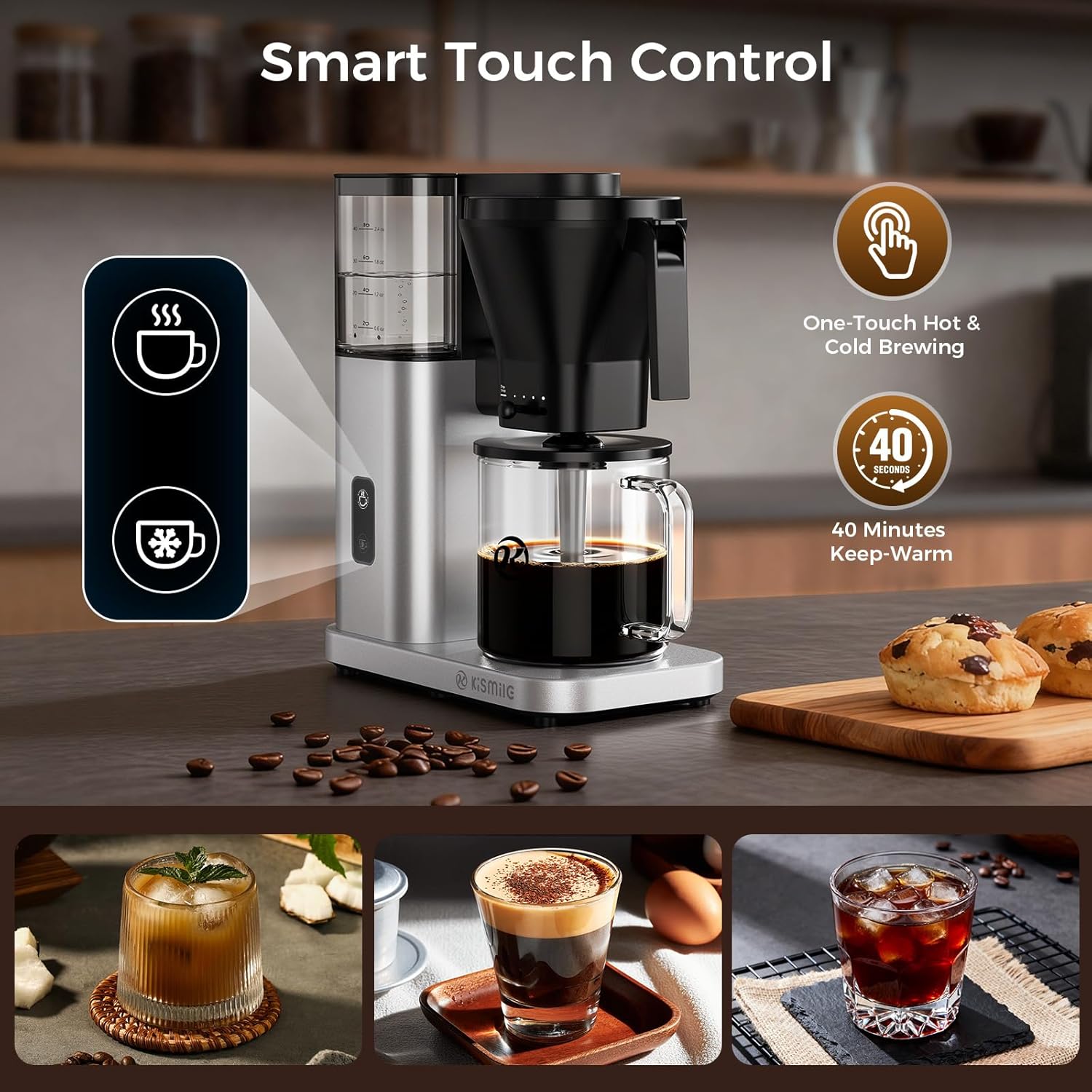

Iṣakoso Smart Fọwọkan
Iṣakoso Fọwọkan Smart: Shows the intuitive control panel with options for hot and cold brewing, and a 40-minute keep-warm function.
Precision Showerhead
Precision Showerhead: Highlights the showerhead design for uniform water flow and maximum flavor extraction from coffee grounds.
Advanced Drip-Free Stop
Advanced Drip-Free Stop: Demonstrates the magnetic anti-drip feature, allowing pausing and serving coffee without spills.
Coffee Machine Size
Coffee Machine Size: Provides a visual representation of the coffee maker's dimensions (32.6cm H x 28.5cm W x 16cm D).

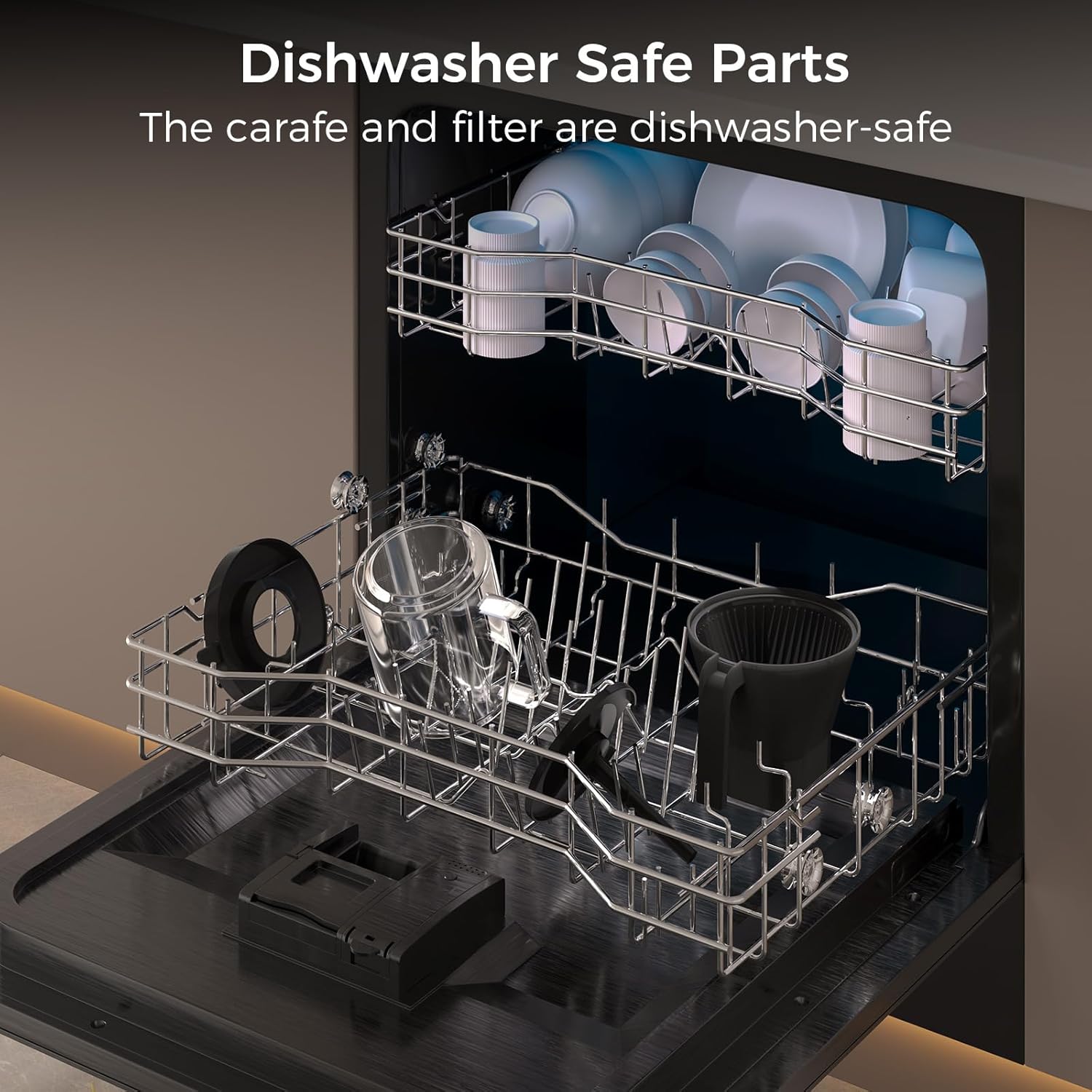

Fifọ Ailewu Parts
Awọn apakan Ailewu Apoti: Shows the carafe and filter holder placed in a dishwasher, indicating their compatibility for easy cleaning.

5. Eto

  1. Yọọ kuro: Ni ifarabalẹ yọ gbogbo awọn paati kuro ninu apoti. Ṣe idaduro apoti fun irinna ọjọ iwaju tabi ibi ipamọ.
  2. Mọ: Wash the carafe, filter holder, and shower head with warm, soapy water. Rinse thoroughly and dry.
  3. Ipo: Place the coffee maker on a flat, stable, heat-resistant surface near an electrical outlet.
  4. Ayika Lilo akọkọ: Before brewing coffee for the first time, run two full cycles with only water to clean the internal components. Fill the water tank to the MAX line, place the empty carafe on the warming plate, and press the brew button. Discard the water after each cycle.

6. Awọn ilana Iṣiṣẹ

Hot Brew:

  1. Kun Omi Omi: Remove the detachable water tank and fill it with fresh, cold water up to the desired level (max 8 cups / 1250ml). Reattach the tank securely.
  2. Ṣafikun Awọn aaye Kofi: Place a paper filter (V-shape or Basket Filter) or a reusable metal filter into the filter holder. Add your desired amount of coffee grounds (refer to the water tank markings for guidance on grams per cup).
  3. Ipo Carafe: Place the empty carafe on the warming plate beneath the filter holder.
  4. Adjust Flow Control (Optional): Use the manual lever on the filter holder to adjust the water flow rate for pre-infusion or multi-stage brewing, if desired.
  5. Bẹrẹ Pipọnti: Press the 'Hot & Iced Coffee' button. The machine will rapidly heat the water and begin the brewing process.
  6. Jeki Gbona: The coffee maker will automatically keep the brewed coffee warm for 40 minutes after brewing is complete.

Pọnti tutu:

  1. Follow steps 1-3 from the Hot Brew instructions.
  2. Yan Tutu Brew: Press the 'Hot & Iced Coffee' button and ensure the cold brew indicator is selected (if applicable, or follow specific cold brew mode instructions if available on the control panel). The machine will initiate a 20-minute deep infusion process.
  3. Sin: Once the cold brew cycle is complete, your rich, smooth cold brew is ready to serve.

Awọn fidio Ọja Oṣiṣẹ:

Video: 8-Cup Pour Over Coffee Machine. This video demonstrates the brewing process of the Kismile 8-Cup Pour Over Coffee Machine, showing how water is heated and dispensed over coffee grounds to produce a fresh pot of coffee.
Video: Automatic pour over coffee machine. This video provides a visual guide to the automatic pour-over function of the Kismile coffee machine, highlighting its ease of use and efficient brewing.

7. Itọju & Cleaning

Ṣiṣe mimọ nigbagbogbo ṣe idaniloju iṣẹ ṣiṣe ti o dara julọ ati fa igbesi aye ti oluṣe kọfi rẹ pọ si.

  • Ninu ojoojumọ: After each use, discard used coffee grounds and filter. Wash the carafe, filter holder, and shower head with warm, soapy water. Rinse thoroughly and dry. These parts are dishwasher-safe.
  • Omi omi: The removable water tank can be easily detached and rinsed under running water. For thorough cleaning, use a mild detergent and a soft brush.
  • Òde: Mu ese ita ti kofi alagidi pẹlu asọ, damp asọ. Ma ṣe lo awọn afọmọ abrasive tabi awọn paadi iyẹfun.
  • Fifọ: Depending on water hardness, descale the machine every 2-4 months. Use a commercial descaling solution specifically designed for coffee makers, following the product's instructions. Alternatively, a solution of white vinegar and water (1:2 ratio) can be used. Run a full brew cycle with the descaling solution, then run 2-3 cycles with fresh water to rinse thoroughly.

8. Laasigbotitusita

IsoroOwun to le FaOjutu
Kofi ko ni pọnti.No water in tank; power not connected; brew button not pressed.Fill water tank; ensure power cord is plugged in; press the brew button.
Kofi dun alailagbara.Too few coffee grounds; coarse grind; incorrect water flow setting.Add more coffee grounds; use a finer grind; adjust flow control lever for slower drip.
Kofi àkúnwọ́sílẹ̀.Too many coffee grounds; filter clogged; carafe not properly placed.Reduce coffee grounds; ensure filter is not clogged; correctly position carafe.
Ẹrọ n jo.Water tank not properly seated; carafe not correctly placed.Ensure water tank is securely in place; verify carafe is correctly positioned on the warming plate.

9. Awọn pato

Ẹya ara ẹrọẸ̀kúnrẹ́rẹ́
BrandKismile
Agbara1.3 Liters (8 Cups)
Àwọ̀fadaka
Ọja Mefa12.83"D x 11.22"W x 6.3"H
Pataki ẸyaEto siseto
Kofi Ẹlẹda IruTú Lori
Awọn Lilo Ni pato Fun ỌjaKofi àlẹmọ
Awọn irinše to waDrip kofi Ẹlẹda
Orukọ awoṣeDrip kofi Ẹlẹda
Nọmba ti Awọn nkan1
Iwọn Nkan11.38 iwon
ASINB0FVXJ22LL
Ọjọ Akọkọ WaOṣu Kẹwa Ọjọ 13, Ọdun 2025

10. Atilẹyin ọja ati Support

For warranty information or product support, please refer to the documentation included with your purchase or contact Kismile customer service directly. Keep your proof of purchase for any warranty claims.
