1. Ifihan
This manual provides essential instructions for the safe operation, setup, and maintenance of your TOUCAN RC HOBBY 1/14 8x8 LESU Hydraulic RC Dump Truck. Please read this manual thoroughly before operating the model to ensure proper function and longevity. This model is a highly detailed, ready-to-run (RTR) replica featuring an 8x8 drive system and hydraulic dump bed functionality.

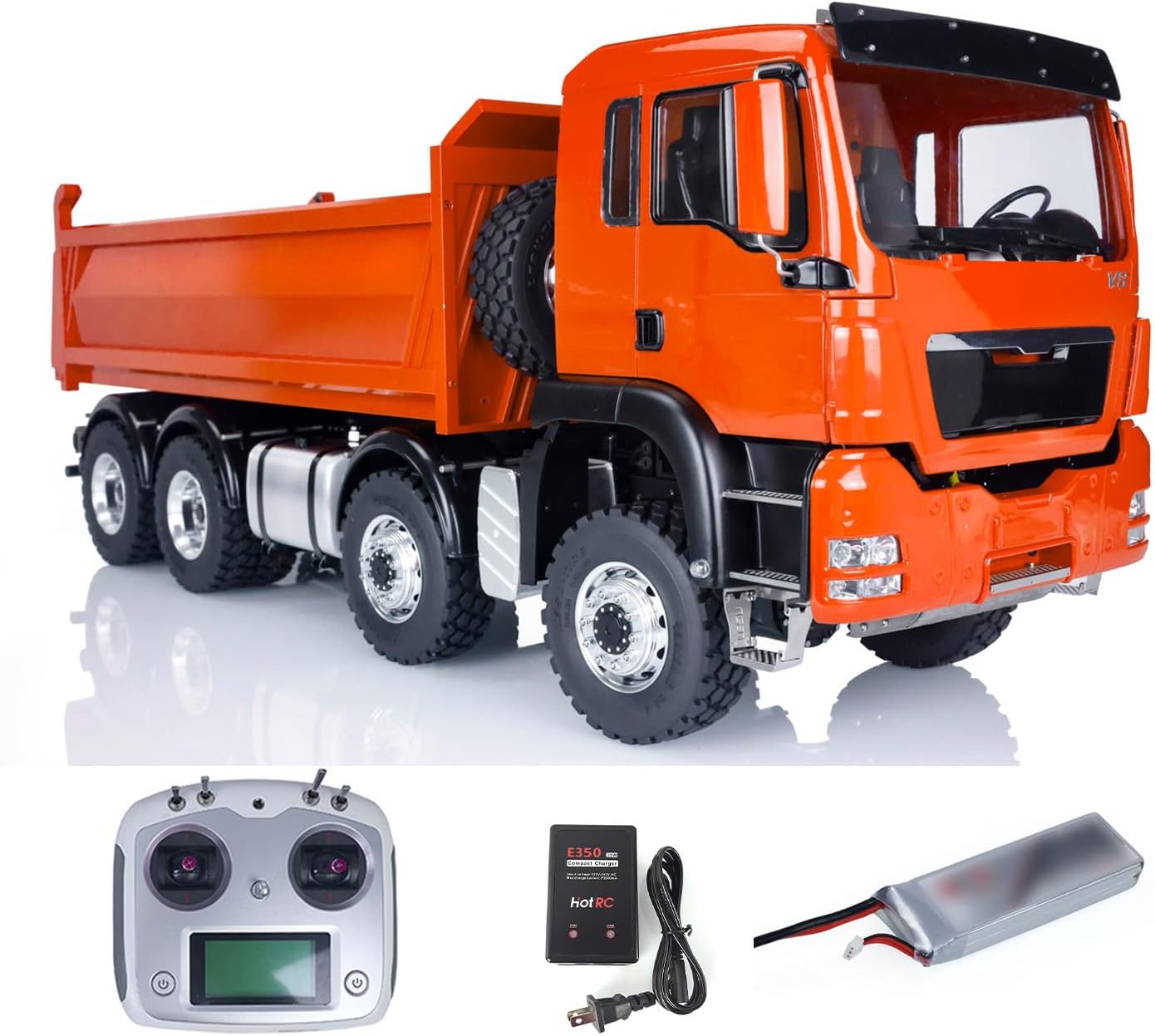

Image 1.1: The TOUCAN RC HOBBY 1/14 8x8 LESU Hydraulic RC Dump Truck, shown with its remote controller, battery, and charger.
2. Alaye Aabo
- Iṣeduro ọjọ ori: This product is recommended for individuals 18 years and up due to its complexity and operational characteristics.
- Ayika Ṣiṣẹ: Operate the RC dump truck in open, clear areas, away from people, pets, and obstacles. Avoid public roads and areas with high traffic.
- Omi ati Ọrinrin: Keep the model away from water and moisture to prevent damage to electronic components.
- Aabo Batiri: Use only the provided battery and charger. Follow all battery charging and handling instructions to prevent fire or injury. Do not overcharge or short-circuit batteries.
- Eto eefun: The hydraulic system operates under pressure. Exercise caution when inspecting or maintaining hydraulic components. Ensure no leaks are present.
- Awọn ẹya gbigbe: Keep fingers, hair, and loose clothing away from moving parts such as wheels, axles, and the dump bed mechanism during operation.
- Abojuto Agba: Adult supervision is recommended, especially for younger operators, to ensure safe handling.
3. Package Awọn akoonu
The following items are included in your TOUCAN RC HOBBY 1/14 8x8 LESU Hydraulic RC Dump Truck package:
- 1/14 Scale RC Dump Truck Model (Painted and Assembled)
- Motor (Pre-installed)
- Servo (Pre-installed)
- Electronic Speed Controller (ESC) (Pre-installed)
- Sound System (Pre-installed)
- Light System (Pre-installed)
- Flysky FS I6S Remote Controller and Receiver
- Batiri
- Ṣaja
Akiyesi: Hydraulic oil is ko si ati ki o gbọdọ wa ni ra lọtọ.
Image 3.1: All components included in the package, ready for initial setup.
4. Eto
4.1. Ngba agbara si Batiri naa
- Connect the provided battery to the charger.
- Pulọọgi ṣaja sinu iṣan agbara ti o yẹ.
- Monitor the charging indicator on the charger. Disconnect the battery once fully charged to prevent overcharging.
4.2. Installing Batteries in the Remote Controller
- Open the battery compartment on the back of the Flysky FS I6S remote controller.
- Insert the required batteries (typically AA, refer to controller manual for specifics) ensuring correct polarity.
- Pa yara batiri naa ni aabo.
4.3. Filling Hydraulic Oil
The hydraulic system requires oil for operation.
- Locate the hydraulic oil reservoir on the truck.
- Fara yọ fila naa kuro.
- Fill the reservoir with appropriate hydraulic oil (not included) up to the recommended level. Avoid overfilling.
- Rọpo fila ni aabo.
- Bleed the system if necessary, following specific instructions for the hydraulic pump (refer to LESU documentation if provided).
Image 4.1: Detail of the hydraulic cylinder responsible for lifting the dump bed. Ensure hydraulic oil is filled before operation.
4.4. Agbára àti Ìsopọ̀pọ̀ Àkọ́kọ́
- Ensure the truck's power switch is OFF.
- Tan oluṣakoso latọna jijin.
- Connect the charged battery to the truck and secure it in its compartment.
- Turn ON the truck's power switch.
- The remote controller and truck should automatically pair. Refer to the Flysky FS I6S manual for specific pairing procedures if issues arise.
5. Awọn ilana Iṣiṣẹ
5.1. Basic Driving Controls
- Ọpá ìfàsẹ́yìn: Controls forward and reverse movement. Push forward for acceleration, pull back for reverse.
- Steering Wheel/Stick: Controls left and right steering.
5.2. Two-Speed Transmission
The truck is equipped with a two-speed gearbox. Use the designated switch on your remote controller (refer to Flysky FS I6S manual for specific channel assignment) to shift between high and low speeds.
- Iyara Kekere: Ideal for precise maneuvers, heavy loads, and challenging terrain.
- Ere giga: Suitable for faster travel on flat or less demanding surfaces.
5.3. Differential Lock
The axles feature a differential lock function for enhanced traction. Activate the differential lock via the remote controller when navigating slippery or uneven surfaces to ensure all wheels receive power. Deactivate on smooth surfaces to allow for easier turning.
Image 5.1: The all-metal chassis and detailed wheel assembly, designed for durability and traction.
5.4. Hydraulic Dump Bed Operation
Use the designated control on your remote (typically a switch or lever) to operate the hydraulic dump bed.
- Gbe soke: Activate the control to raise the dump bed.
- Isalẹ: Activate the control to lower the dump bed.
Ensure the truck is on stable ground before operating the dump bed, especially with a load. The maximum lifting power of the bucket is approximately 20KG.
Image 5.2: The dump bed in its fully raised position, powered by the hydraulic system.
5.5. itanna System
The integrated lighting system can be controlled via the remote controller. This enhances realism and allows for operation in low-light conditions.
6. Itọju
6.1. Ninu
- After each use, clean the truck to remove dirt, dust, and debris. Use a soft brush or cloth.
- Avoid using water or harsh chemicals directly on electronic components.
6.2. Hydraulic System Check
- Regularly check the hydraulic oil level and refill as needed.
- Inspect hydraulic lines and connections for any signs of leaks or damage. Address any issues promptly.
6.3. Gbogbogbo Ayẹwo
- Periodically inspect all screws, nuts, and bolts for tightness. Tighten any loose fasteners.
- Check tires for wear and damage.
- Ensure all moving parts, such as axles and steering linkages, operate smoothly. Lubricate as necessary with appropriate RC-safe lubricants.
Image 6.1: Undercarriage view, showing the robust construction and areas for inspection.
7. Laasigbotitusita
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Truck does not respond to remote. | Low battery in truck or remote; not paired; power switch off. | Charge/replace batteries; re-pair remote and truck; ensure power switches are ON. |
| Dump bed not lifting/lowering. | Insufficient hydraulic oil; hydraulic pump issue; control signal issue. | Check hydraulic oil level and refill; inspect hydraulic pump and lines; verify remote control settings. |
| Loss of traction. | Differential lock not engaged; unsuitable terrain; worn tires. | Engage differential lock; move to more suitable terrain; consider replacing worn tires. |
| Awọn ariwo ti ko wọpọ lakoko iṣẹ. | Loose parts; debris in drivetrain; motor/gearbox issue. | Inspect for loose components and tighten; clean drivetrain; contact support if persistent. |
8. Awọn pato
- Olupese: TOUCAN RC HOBBY / LESU
- ID awoṣe: LS-20130011-RTR-PAINTING-OG
- Iwọn: 1/14
- Ohun elo: Stainless Steel, Aluminum Alloy, Plastic, Rubber
- Awọn iwọn ọja: 28.76 x 17.73 x 11.03 inches
- Ìwọ̀n Nkan: 39.6 iwon
- Bucket Maximum Lifting Power: Isunmọ 20KG
- Gbigbe: Meji-iyara gearbox
- Eto Wakọ: 8x8 with differential lock functionality
- Imọlẹ: Integrated lighting system
- Ọjọ ori ti a ṣeduro: 18 ọdun ati si oke

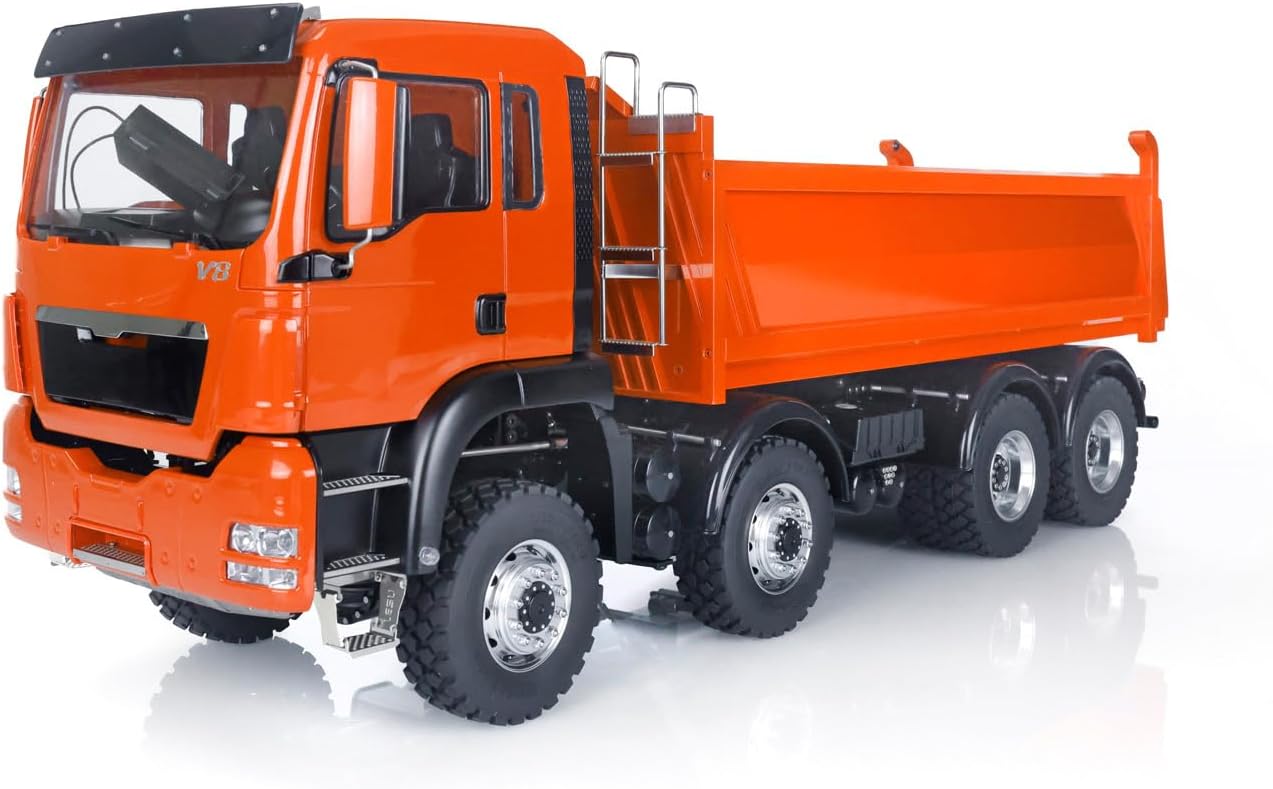

Aworan 8.1: Apa view of the dump truck, showcasing its scale and design.
9. Atilẹyin ọja ati Support
For warranty information and technical support, please refer to the documentation provided with your purchase or contact the seller directly. You can also visit the official TOUCAN RC HOBBY store for additional resources and contact details: TOUCAN RC HOBBY Store.
