1. Ifihan
This manual provides essential information for the safe installation, operation, and maintenance of your PowMr Hybrid Solar Inverter 12000W. Please read this manual thoroughly before installation and operation to ensure optimal performance and safety. Keep this manual for future reference.
2. Alaye Aabo
ÌKÌLỌ̀: Inverter yìí ń ṣe vol gígatage. Installation and maintenance must be performed by qualified personnel only. Failure to follow these instructions may result in serious injury or death.
- Do not attempt to disassemble or repair the inverter yourself. Contact qualified service personnel.
- Ensure all wiring is correctly sized and installed according to local and national electrical codes.
- Ge gbogbo awọn orisun agbara (PV, batiri, AC input) kuro ṣaaju ki o to ṣe atunṣe tabi wayoyi eyikeyi.
- Install the inverter in a well-ventilated, dry, and cool environment, away from flammable materials.
- Rii daju pe ilẹ ti o tọ ti ẹrọ oluyipada.
Figure 2.1: The inverter features comprehensive protection against over/under voltage, overload, short circuit, over-temperature, and anti-backfeed.
3. Ọja Ipariview
3.1 Key Awọn ẹya ara ẹrọ
- Abajade: 12000W continuous (24000W peak), 120/240Vac split-phase output.
- Iṣawọle PV: Maximum 6600W PV input power, 500V DC maximum, 22A. PV starting voltage: ≥150V.
- MPPT Charger: Dual 100A MPPT chargers, max 200A charge current.
- Ibamu Batiri: Supports 48V Li-ion, Lead-Acid, and user-defined battery types.
- Battery-Less Mode: Capable of powering loads directly from PV/AC without a battery connected.
- Iṣẹ́ tó jọra: Supports up to 6 units in parallel for increased power output.
- Abojuto: Large LCD display, dynamic flow diagrams, and optional WiFi for remote monitoring via mobile app.
- Awọn ibudo Ibaraẹnisọrọ: RS485, CAN, USB interfaces for integration with battery BMS, generator ATS, and smart home systems.
Olusin 3.1: Pariview of the 12KW Split-Phase Hybrid Solar Inverter's main features and capabilities.
3.2 Product Appearance and Components

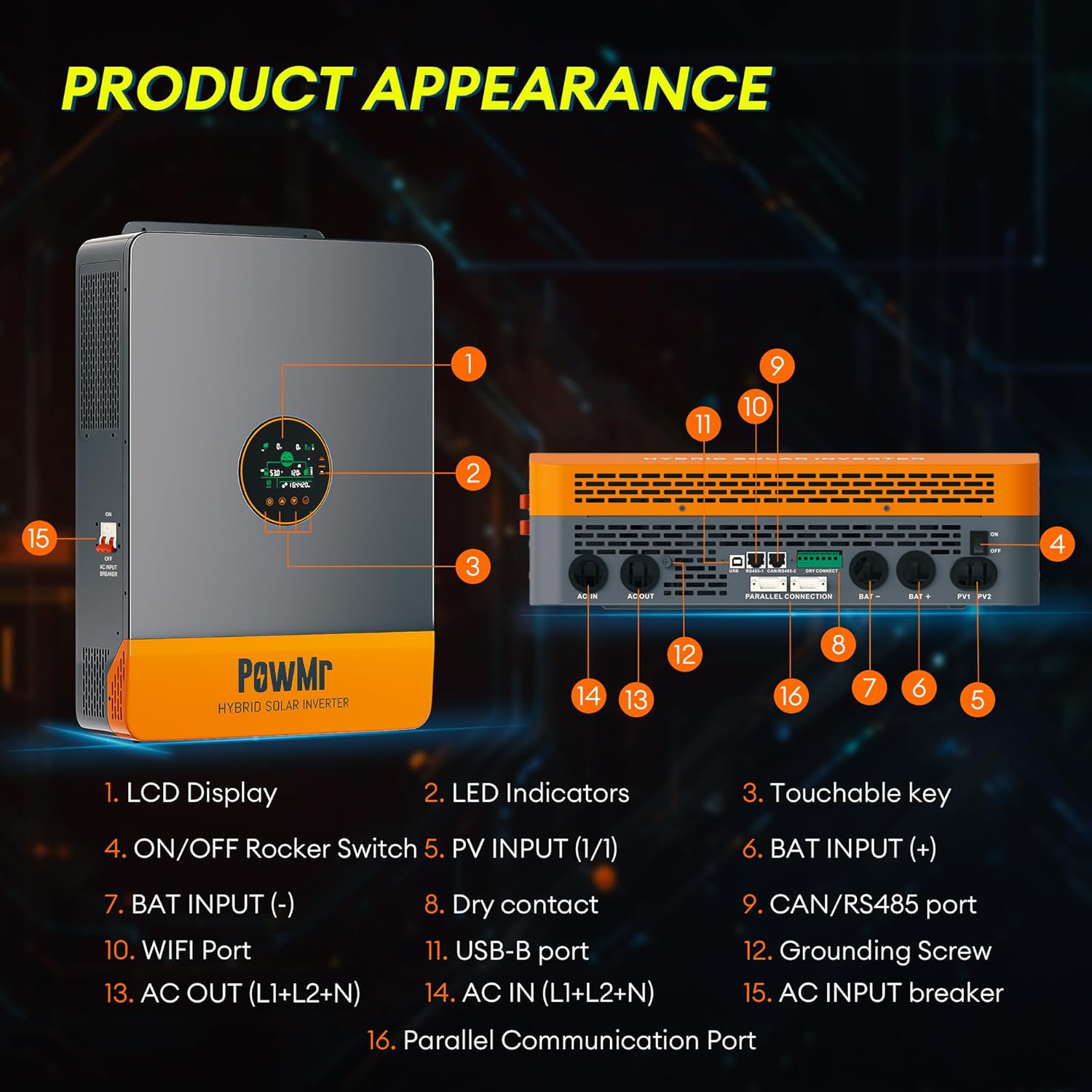

Nọmba 3.2: Iwaju ati ẹgbẹ view ti inverter pẹlu awọn paati ti a samisi.
- Ifihan LCD
- LED Ifi
- Touchable Key
- ON/PA Rocker Yipada
- PV INPUT (1/1)
- ÀDÁNṢẸLẸ̀ (+)
- ÀDÁNṢẸ́ (-)
- Olubasọrọ gbẹ
- CAN/RS485 Port
- Ibudo WIFI
- Ibudo USB-B
- Grounding dabaru
- AC OUT (L1+L2+N)
- AC IN (L1+L2+N)
- AC INPUT Breaker
- Ni afiwe Port Communication
4. Eto ati fifi sori
4.1 Unpacking ati ayewo
Upon receiving the inverter, carefully unpack it and inspect for any shipping damage. Ensure all components listed in the package contents are present:
- Solar inverter unit
- Okun ibaraẹnisọrọ ti o jọra
- 2 × battery terminal lugs
- 2 × M5 skru
- Itọsọna olumulo
Note: WiFi module, batteries, adapters, solar/battery wires/cables are excluded and require additional purchase if needed.
4.2 Iṣagbesori ẹrọ oluyipada
The inverter is designed for indoor (IP20) installation. Choose a mounting location that is:
- Vertical, on a solid surface capable of supporting the inverter's weight (approximately 27kg / 59.5lbs).
- Afẹ́fẹ́ tó dára láti jẹ́ kí ooru máa tú jáde.
- Protected from direct sunlight, moisture, and dust.
- Wiwọle fun waya ati itọju.
4.3 Awọn isopọ onirin
All wiring must comply with local electrical codes. Use appropriate wire gauges for all connections.
- Ilẹ: Connect the grounding screw (12) to a reliable earth ground.
- Asopọ batiri: Connect the 48V battery bank to the BAT INPUT (+) (6) and BAT INPUT (-) (7) terminals. Ensure correct polarity.
- Iṣawọle PV: Connect the solar panel array to the PV INPUT (1/1) (5) terminals. Observe correct polarity and ensure PV voltage is within specified limits (Max 500V DC, starting voltage ≥150V). Use 10AWG PV wire.
- Iṣawọle AC: Connect the utility grid or generator AC input to the AC IN (L1+L2+N) (14) terminals.
- Ijade AC: Connect your loads to the AC OUT (L1+L2+N) (13) terminals. The inverter provides 120/240Vac split-phase output.
- Parallel Communication (Optional): If installing multiple inverters in parallel, connect the Parallel Communication Port (16) between units using the provided cable.
- Awọn isopọ miiran: Utilize RS485, CAN, USB, and dry contact ports (8, 9, 10, 11) for external communication and control as needed.
Olusin 4.1: Example of multiple inverters connected in parallel. Professional guidance is required for actual connections.
Figure 4.2: The inverter supports various 48V battery systems, including battery-less operation.
5. Awọn ilana Iṣiṣẹ
5.1 Titan / Pa a
- Rii daju pe gbogbo awọn asopọ onirin wa ni aabo ati pe o tọ.
- Switch on the battery breaker, then the PV breaker.
- Flip the ON/OFF Rocker Switch (4) to the 'ON' position.
- Switch on the AC INPUT Breaker (15).
- To power off, reverse the sequence: AC INPUT Breaker off, ON/OFF Rocker Switch off, PV breaker off, battery breaker off.
5.2 LCD Ifihan ati Eto
The large LCD display (1) provides real-time energy visualization and system status. Use the touchable keys (3) to navigate menus and adjust settings. Refer to the detailed settings section in the full user manual for specific parameter configurations, including:
- Battery charging parameters (voltage, lọwọlọwọ)
- O wu voltage ati igbohunsafẹfẹ
- Operating modes (e.g., Solar First, Utility First, Battery First)
- Time-of-Use (TOU) control for smart charging/discharging
5.3 Battery-Less Mode
The inverter supports battery-less operation, allowing it to power loads directly from solar PV and/or AC input without a connected battery. This mode is useful for specific applications or during battery maintenance. Ensure proper configuration through the LCD settings.
6. Itọju
Itọju deede ṣe idaniloju igbesi aye gigun ati iṣẹ ti o dara julọ ti oluyipada rẹ.
- Ninu: Periodically clean the inverter's exterior and ventilation openings to prevent dust buildup, which can impede cooling. Use a dry, soft cloth.
- Awọn isopọ: Lododun ṣayẹwo gbogbo awọn asopọ itanna fun wiwọ ati awọn ami ti ipata. Tun-mu ti o ba wulo.
- Ayika: Rii daju pe ayika fifi sori ẹrọ wa laarin iwọn otutu pato ati awọn sakani ọriniinitutu.
- Firmware: Ṣayẹwo awọn olupese ká website for any available firmware updates. Firmware updates can improve performance and address known issues.
WARNING: Always disconnect all power sources before performing any cleaning or inspection.
7. Laasigbotitusita
Apá yìí ń pèsè àwọn ìdáhùn sí àwọn ìṣòro tó wọ́pọ̀. Fún àwọn ìṣòro tí a kò kọ síbí, kan sí ìrànlọ́wọ́ oníbàárà.
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Inverter ko ni agbara lori | Ko si asopọ batiri tabi vol batiri kekeretage; DC breaker off; ON/OFF switch off. | Ṣayẹwo awọn asopọ batiri ati voltage; ensure DC breaker is on; turn ON/OFF switch to 'ON'. |
| Ko si AC jade | Overload; short circuit; AC output breaker tripped; inverter fault. | Reduce load; check for short circuits; reset AC output breaker; check LCD for error codes. |
| PV input not charging batteries | PV voltage too low or too high; PV polarity reversed; PV breaker off; MPPT fault. | Ṣayẹwo PV voltage and polarity; ensure PV breaker is on; check LCD for PV error codes. |
| Unstable output in parallel mode | Incorrect parallel communication wiring; mismatched firmware versions; incompatible settings. | Ensure only one parallel communication cable is used between units. Verify all inverters have the same, latest firmware version. Check parallel settings on each inverter. Contact support if issues persist. |
| Inverter displays error code | Internal fault; external condition (e.g., over-temperature, over-voltagati). | Refer to the full manual's error code section for specific meanings and solutions. Address environmental conditions if applicable. |
8. Awọn pato
| Paramita | Iye |
|---|---|
| Orukọ awoṣe | BI-POW-SunSmart 12KP |
| Won won Power o wu | 12000W (12KW) |
| Agbara ti o ga julọ | 24000W |
| Won won wu Voltage | 120/240Vac (Split-Phase/Single-Phase) |
| Batiri Voltage | 48V |
| O pọju agbara Input PV | 6600W |
| Iwọn titẹ sii PV ti o pọju Voltage | 500V DC |
| O pọju Input PV Lọwọlọwọ | 22A |
| Ìdìpọ̀ Ìbẹ̀rẹ̀ PVtage | ≥150V |
| MPPT Charge Current | Dual 100A (Max 200A total) |
| Agbara Agbara To pọ julọ/Ẹrọ Agbára | 120A |
| Awọn ibudo Ibaraẹnisọrọ | RS485, CAN, USB |
| Awọn iwọn (L×W×H) | 24.41 × 17.52 × 5.12 inches (62 × 44.5 × 13 cm) |
| Iwọn | 59.5 lbs (27 kg) |
| Idaabobo Rating | IP20 (Lilo inu ile) |
9. Atilẹyin ọja ati Support
For warranty information, please refer to the documentation provided with your purchase or contact PowMr customer service. For technical support, troubleshooting assistance, or inquiries regarding parts and service, please visit the official PowMr webaaye tabi kan si awọn ikanni atilẹyin alabara wọn.
